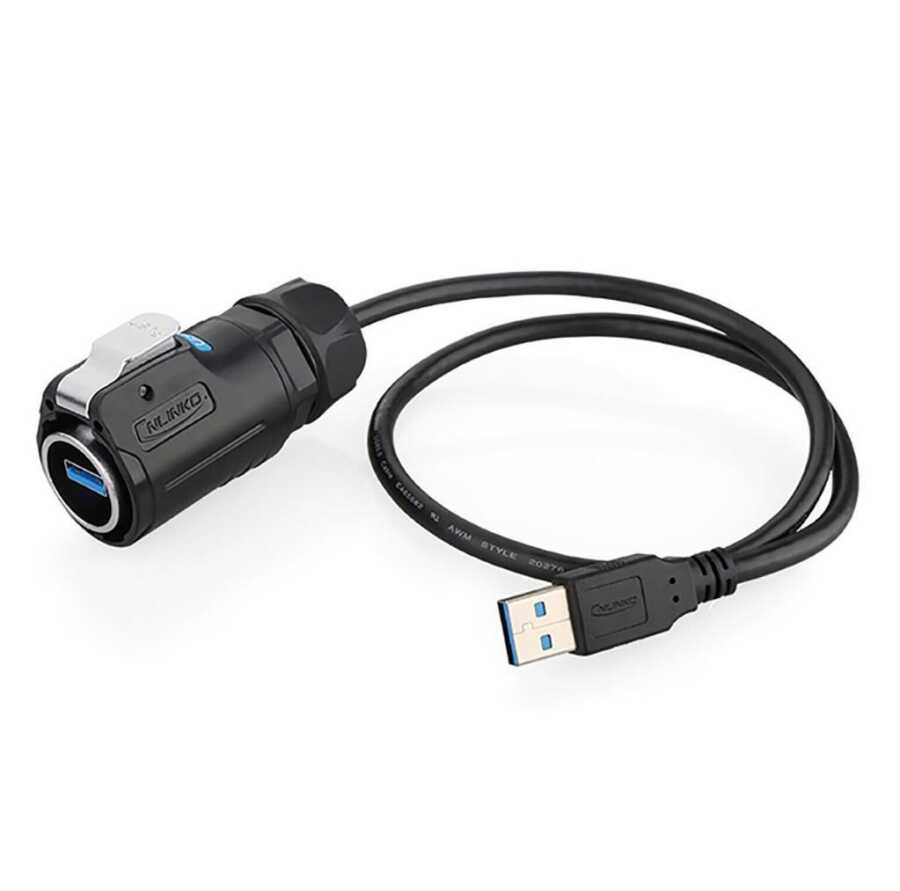

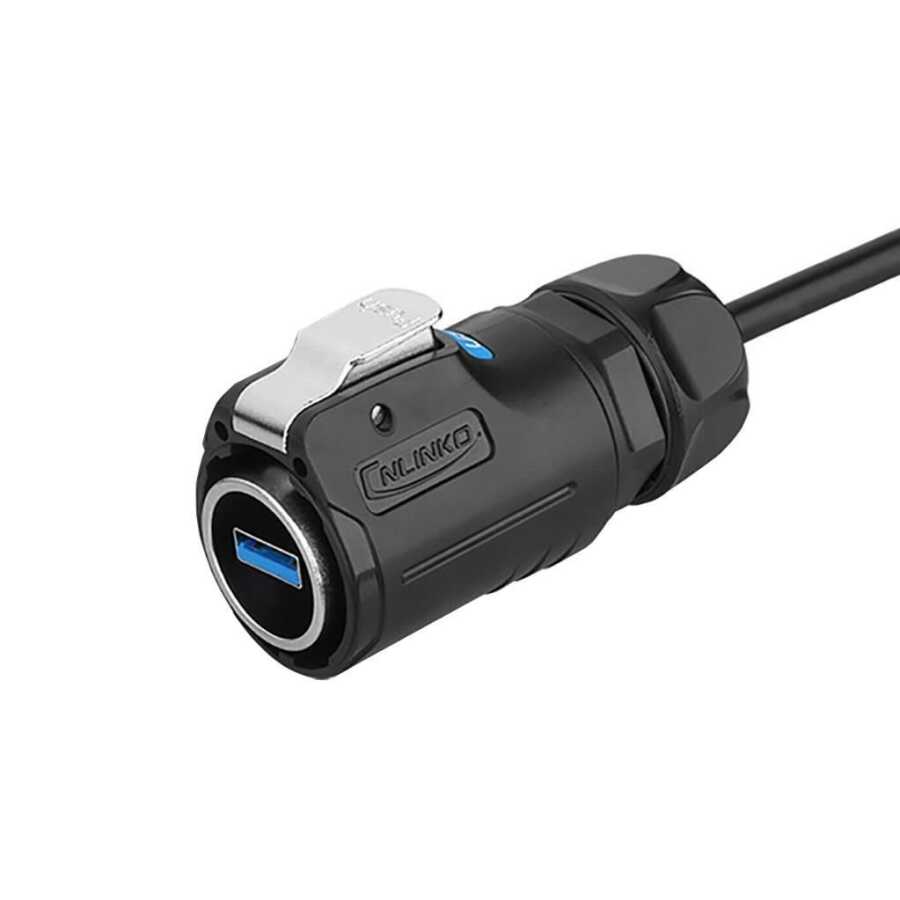

LP24-USB3-MP-MP-0D5M-001 Waterproof Data Connector - Male

LP-24 Series USB connectors meet the different needs of the industry and to guarantee quality It uses nickel-plated Zinc alloy and also complies with International environmental protection of Industrial equipment. Satisfy the quality and meet the environmental protection requirements of international industrial equipment. Quick plug design allows one-handed plug/remove. With military standard screw type locking.

LP-24-J/USB3 You can use it with /213/SX-43-401 Waterproof Data Connector - Female.

Technical Specifications

Plug- Eject Style
Standard crystal connector
Stable contact resistance
IP65/67 rating when connected
Number of Contacts: 9
Cable Size: 24-26 AWG
Diameter Range: 5.5-7mm
Rated Current: 1.5A
Contact Resistance: <30mOhm
Withstand Voltage: 1000V
Operating Temperature: -40 C to 80 C (-40 F to 176 F)
Enclosure Material: High Performance Plastic
Hardware: Zinc Alloy
Flammability Rating: UL94-V0

LP-24 Series Waterproof Connector Datasheet
