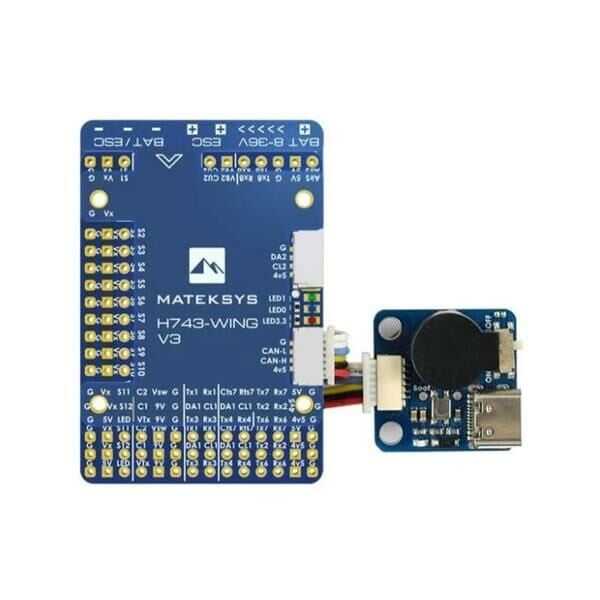

Name: Matek H743-WING V3 RC Drone Flight Control Card
Brand: Matek
SKU: DRN.UCK.01.000010
Price: 11352.00 TRY
Availability: InStock

Matek H743-WING V3 RC Drone Flight Control Card

Matek's H743-WING V3 Flight Controller comes with new features and improvements over old versions . This flight control board includes an STM32H743VIT6 MCU running at 480MHz, dual gyro - ICM42688-P(SPI1) + ICM42605(SPI4), DPS310 (I2C2) barometer and much more.

Specifications:

MCU: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash
IMU: ICM42688-P(SPI1) + ICM42605(SPI4)
Baro: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: MicroSD card slot (SDIO)
With built-in inversion 7x Uart (1,2,3,4,6,7,8).
13x PWM output (including “LED” pad)
2x I2C
1x CAN
6x ADC (VBAT, Current, RSSI, Analog Air Speed, VB2, CU2)
3 for FC STATUS (Blue, Red) and 3.3V indicator (Red) pcs LED
1x SPI3 breakout
Type-C (USB2.0) with USB/Bip Extender
Dual Camera Inputs switch
5V/9V(12V) for camera/VTX power switch
High Precision Current Sensing (90A Continuous, 220A Peak)
Battery Voltage Sensor: 1K:10K (1100 Scale on INAV, BATT_VOLT_MULT 11.0 on ArduPilot)
ADC VB2 voltage divider: 1K:20K
ADC AirSpeed voltage divider: 20K:20K
Static power 160mA@5V
Mounting: 30.5 x 30.5 mm, Φ4 mm, Φ3 mm with Grommets
Dimensions: 54 x 36 x 13 mm
Dimensions: 54 x 36 x 13 mm
Weight: 30g with USB extender

Software:

ArduPilot( ChiBiOS): MATEKH743
INAV: MATEKH743

For all features, you can review the quick start guide below.

H743-WING V3 Manual
