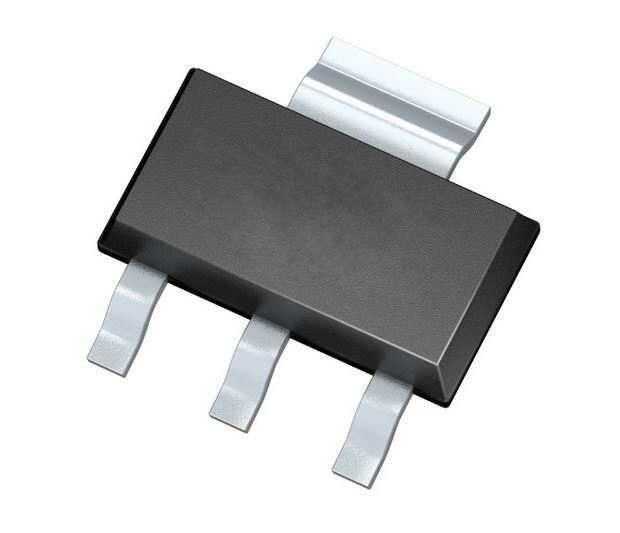

MCP1825S-3302E/DB SOT-223-3 Linear Voltage Regulator

MCP1825/MCP1825S is a 500 mA Low Loss (LDO) linear regulator providing high current and low output voltages. The MCP1825 comes in a fixed or adjustable output voltage version with an output voltage range of 0.8 V to 5.0 V. The 500 mA output current capability, combined with the low output voltage capability, makes the MCP1825 a good choice for new 1.8V sub-output voltage LDO applications with high current demands. MCP1825S is a 3-pin fixed voltage version.

Usage Areas

Portable Equipment
Battery Operated Devices
Active Filters
A/D Converters

Series	OPA2374AIDR
Supply Voltage	2.1 V - 6 V
Output Voltage	3.3 V
Output Current	500 mA
Number of Exits	1
Number of Pins	4
Package Type	SOT-223-3

MCP1825S-3302E/ DB Datasheet
