MCP2515 CANBUS-SPI Communication Module

MCP2515 CANBUS-SPI Communication Module

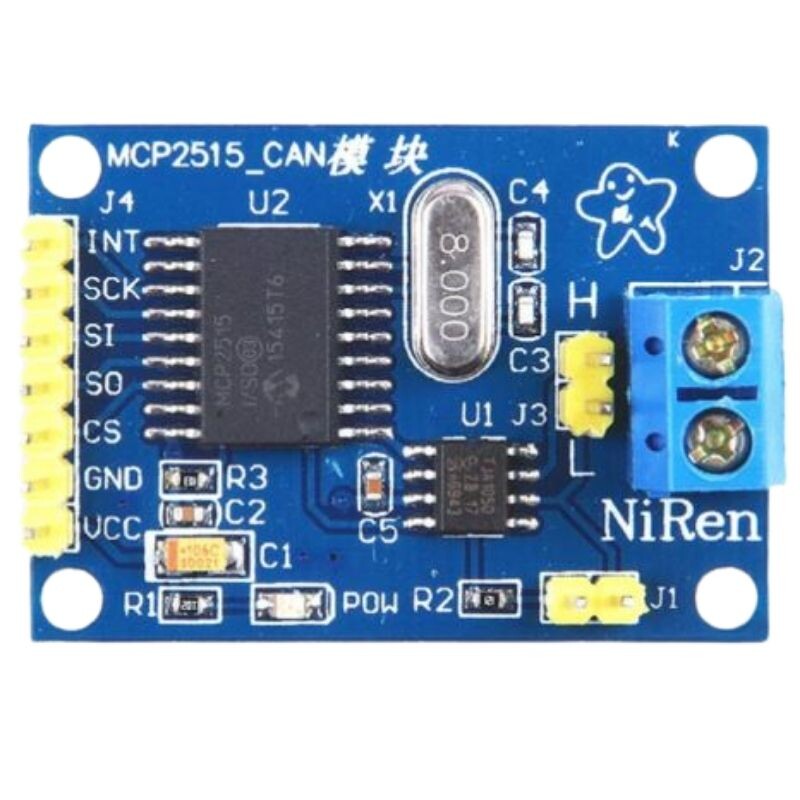

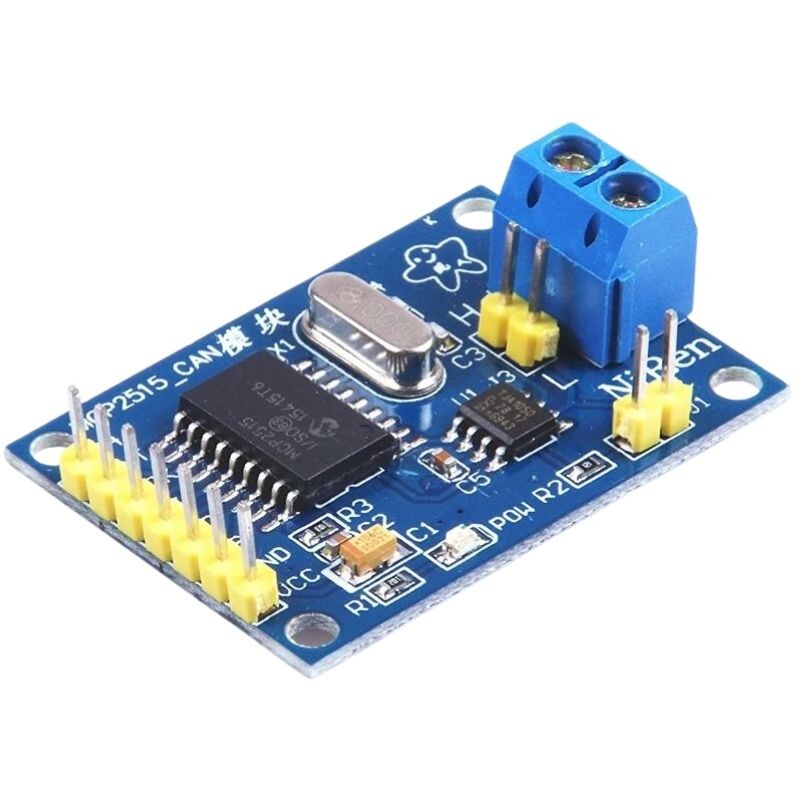

MCP2515 CANBUS-SPI Communication Module, CAN-BUS Shield is a card that allows Arduino cards to be included in the CAN line. It also allows multiple Arduino boards to communicate easily via the CAN line.

It is based on the MCP2515 CAN controller and the TJA1050 CAN transceiver with SPI interface.

It can be easily used with the OBD-II library.

Datasheet

Features

• High Speed ​​TJA1050 CAN transceiver
• Support CAN V2.0B technical standard, communication speed 1Mb/S
• Data field 0 to 8 bytes long
• Operating Current: typical 5mA
• 8 MHz crystal Oscillator
• Extensible CAN interface with SPI connection
• Size: 40x28x11.5mm
