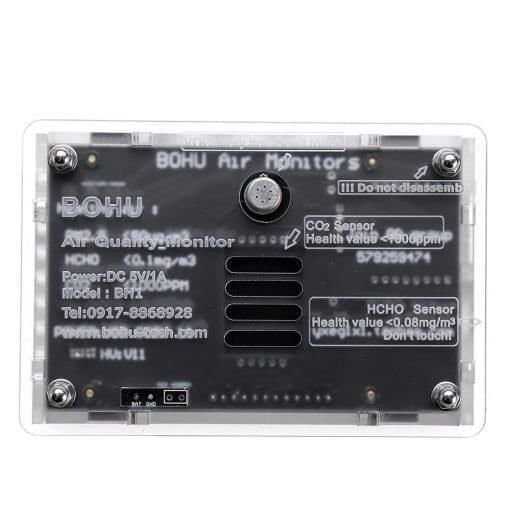

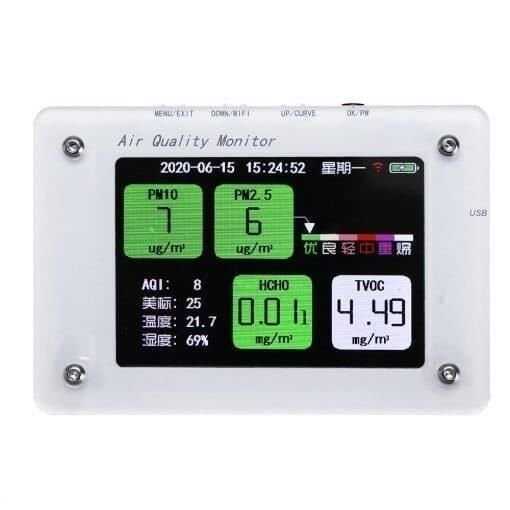

PM2.5 TVOC CO2 HCHO AQI Air Quality Monitor - A2

PM2.5 TVOC CO2 HCHO AQI Air Quality Monitor - A2.WIFI supported 5000mAh super large capacity lithium battery It is an air quality monitor with 8 hours of charging time and more than 30 hours of usage time. It detects formaldehyde, TVOC, PM2.5, carbon dioxide, temperature and humidity according to the air model of the environment. You can charge your phone using a charging adapter and micro-USB cable.

Technical Specifications

Input Voltage: 5V DC
Battery Capacity: 5000mAh
Power : 5W
Charging Current: 1A
Charging Time: 8 hours
Usage Time: 30 hours
WIFI support
Operating Temperature Range: -10°C to 45°C
Formaldehyde Detection Range: 0-2000mg/m³
TVOC Detection Range: 0-2000mg/m³
PM2.5 Detection Range: 0-1000ug/m³
Carbon Dioxide Detection Range: -20°C - 50°C
Humidity Detection Range: 0-99.9%RH

Differences Between Models

Data Storage

Thanks to the built-in CH340, you can connect it to the computer via USB and actively load the data in json format, and the user can design the json file on his own computer.
The product has TF card support for recording.
If you start the TCP server to receive data via WiFi, set the port to 9960 and set the target IP of the detector to the TCP server IP, you can receive data via WiFi.
Cloud server tpc api support is available to retrieve data.
Supports Domoticz IoT platform
