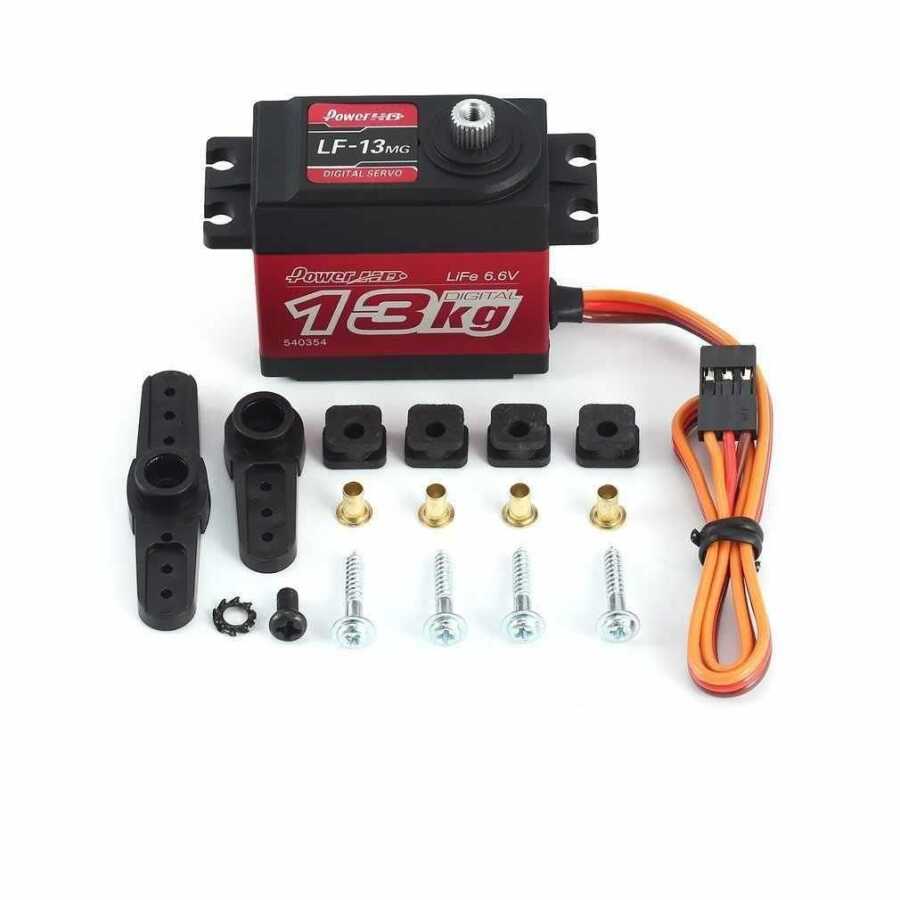

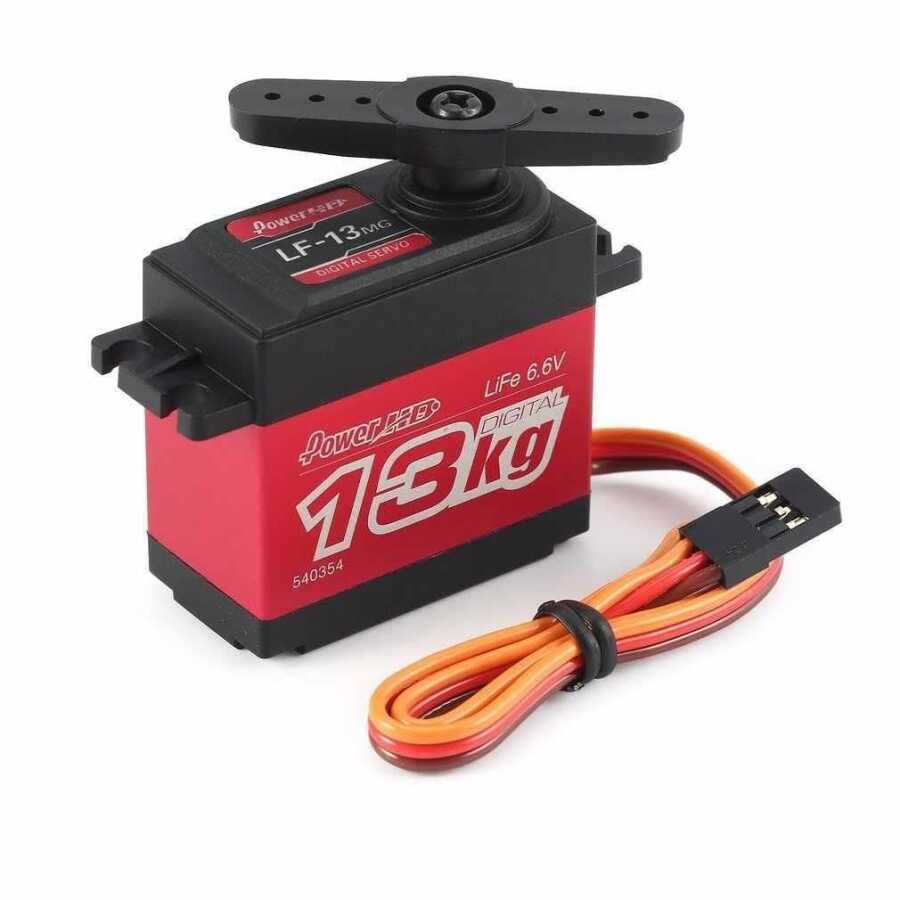

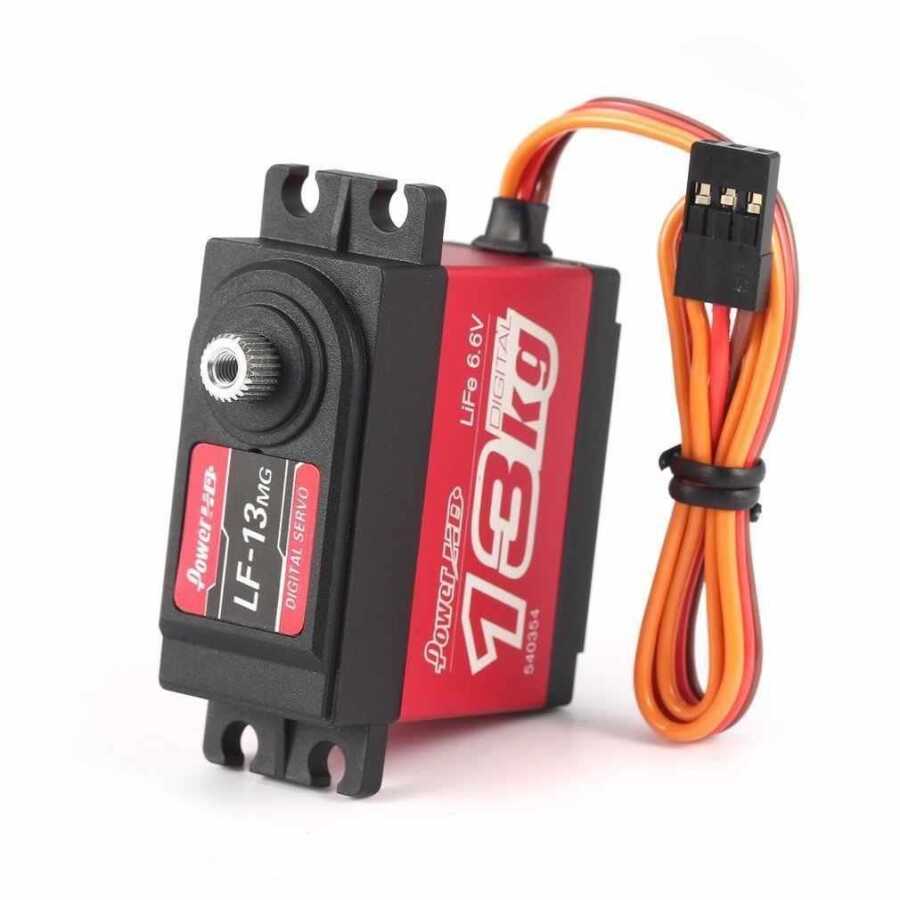

PowerHD High Power Digital Servo Motor LF-13MG
PowerHD High Power Digital Servo Motor LF-13MG servo motor with high torque value that you can use in various electronic projects. It has 180 degree movement capacity. It has a torque value of 13kg-cm at 6.6V. For this reason, it is frequently preferred especially in projects that require high torque.
LF-13MG Technical Specifications:
- Torque (4.8 V): 10.5 kg-cm (145.8 oz/in)
- Torque (6.6V): 13.0 kg-cm (180.5 oz/in) < LI>Speed: 0.15 sec (4.8V) │ 0.12 sec (6.6V)
- Operating Voltage： 4.8 ~ 6.6 DC Volt
- Weight: 60 g (2.12 oz)< /LI>
- Bearing Type ： Bearing x 2
- Motor Type ： DC Motor
- Gear Type: Copper and Aluminum
- Operating Temperature ： -20 ℃ ~60℃
- Operating frequency：1520μs / 333hz
- Dimension：40.7 x 20.5 x 39.5mm (1.60 x 0.80 x 1.55 inch )
