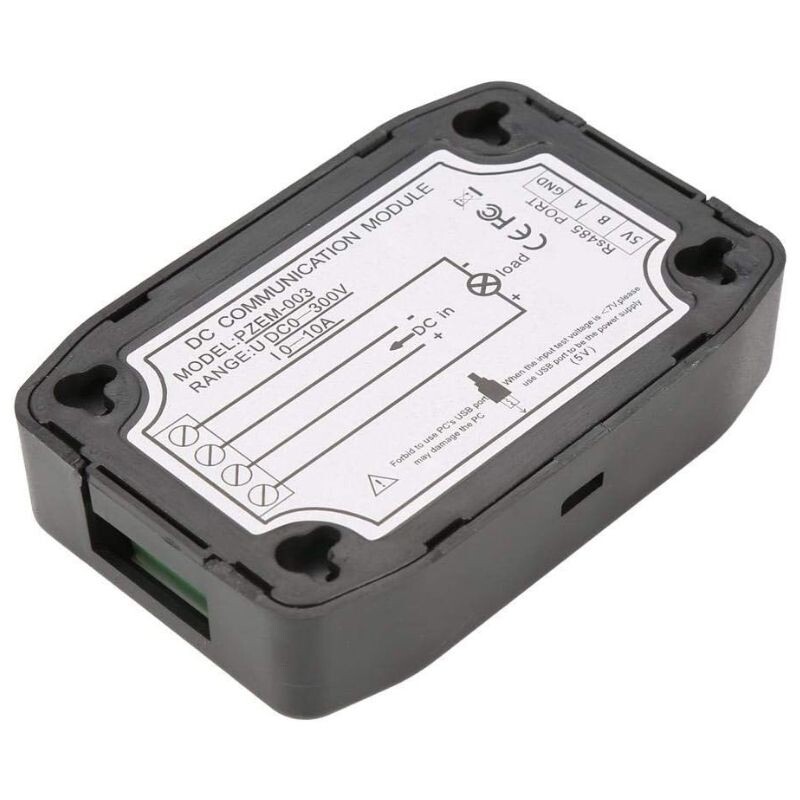

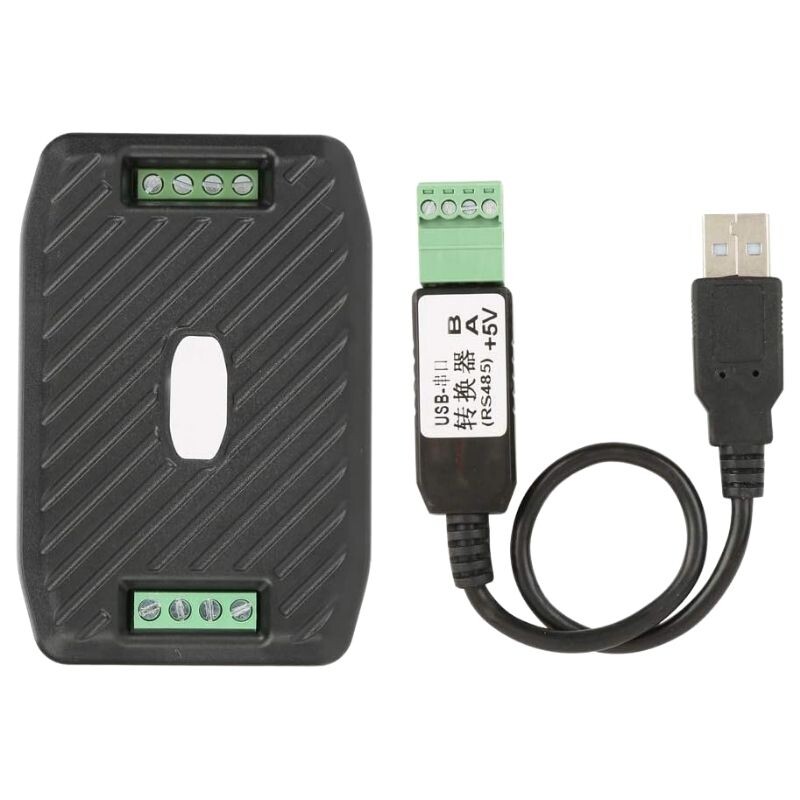

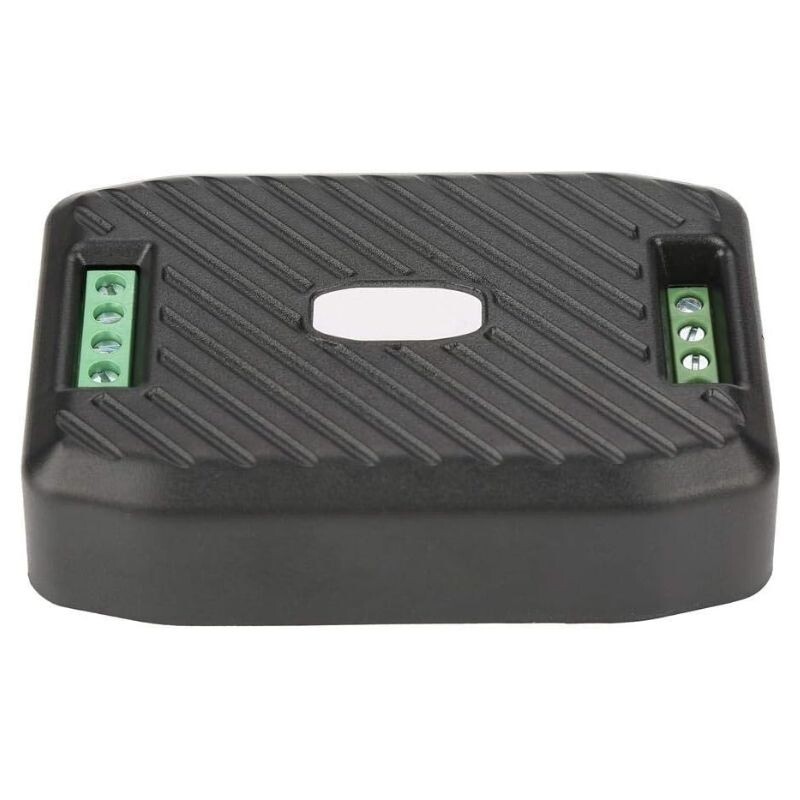

PZEM-003 0-300V 0-10A DC Power Communication Module + USB-RS485

PZEM-003 0-300V 0-10A DC Power Communication Module + USB-RS485

PZEM-003 0-300V 0-10A DC Power Communication Module + USB-RS485 is a compact and efficient device designed to monitor and measure DC voltage, current, power and energy consumption in real time. Ideal for use in a variety of applications such as renewable energy systems, battery management, and electronic projects, this module provides accurate readings with a user-friendly interface.

Datasheet

Features

• Measurement Capabilities: The PZEM-003 measures DC voltage (up to 300 V), current (up to 10 A), power (up to 1,000 W), and energy (kWh), making it versatile for a variety of applications.
• Communication Protocol: It typically uses a UART interface for communication, allowing easy integration with microcontrollers such as Arduino and Raspberry Pi.
• Display Compatibility: Typically paired with an external display, it provides real-time data visualization for voltage, current, power, and energy, increasing usability.
• Compact Design: Small footprint allows integration into tight spaces or existing projects without significant modifications
• Calibration: The module can be calibrated to provide precise measurements, making it reliable for professional and hobby applications.
• LED Indicators: Clear LED indicators show the status of the measurement parameters at a glance.

Technical Specifications

• Voltage Measurement Range: 0.05 – 300V
• Current Measurement Range (A): 0.01 – 10A
• Power Measurement Range: 0.1 – 3kW
• Energy Consumption: 0 – 9999kWh
• Measurement Accuracy: 1%
• Dimensions: 90x60.5x23mm
