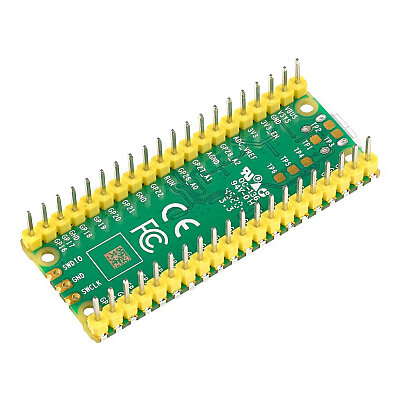

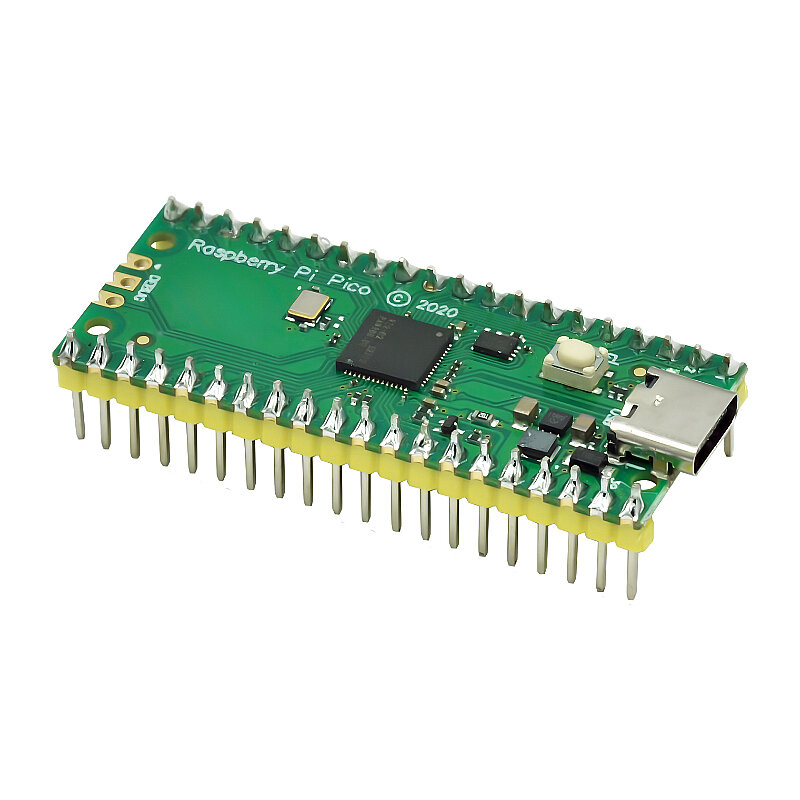

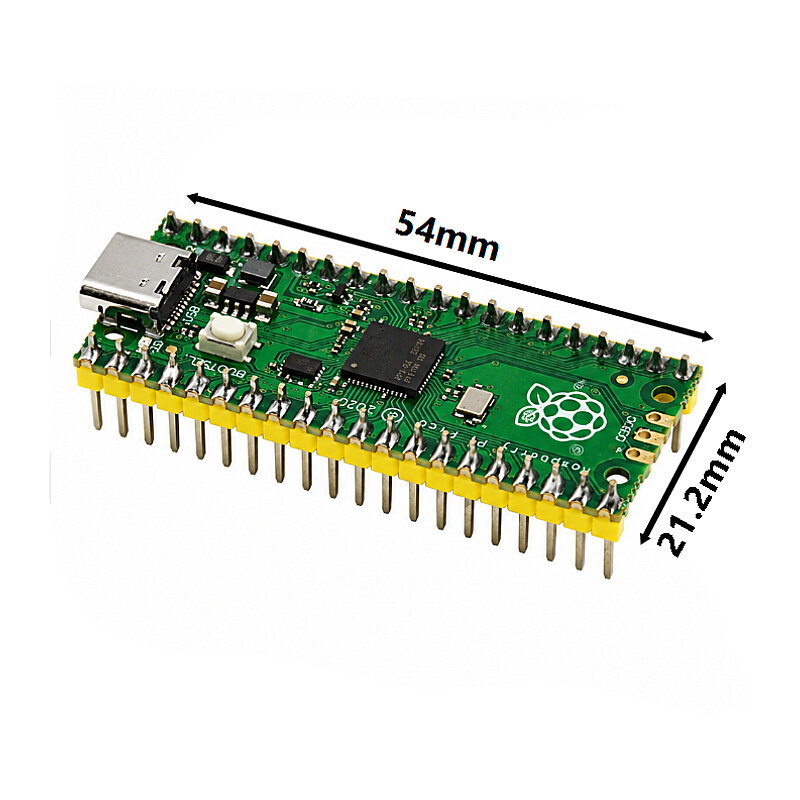

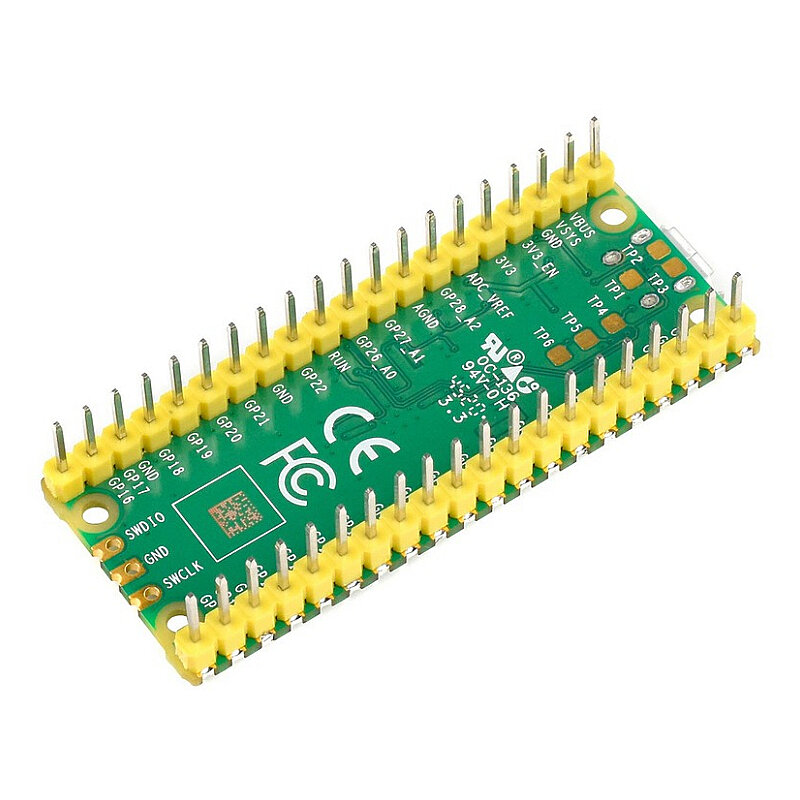

Raspberry Pi Pico RP2040 Development Board - Type-C

Raspberry Pi Pico RP2040 Development Board - Type-C

The Raspberry Pi Pico RP2040 Development Board - Type-C is a compact, high-performance development board built around the RP2040 dual-core microcontroller developed by Raspberry Pi. It is suitable for use in robotics, automation, sensor applications, data acquisition systems, and embedded electronics projects.

The RP2040 chip on the board features two Arm Cortex-M0+ cores and supports an operating frequency of up to 133 MHz. Its 264 KB of internal SRAM and 2 MB of QSPI Flash memory provide sufficient processing and programming capacity for a wide range of microcontroller applications.

The USB connection is used both to power the board and to establish a data and programming link with a computer.

When connected to a computer via USB while holding down the BOOTSEL button, the board appears as a mass storage device, allowing UF2 files to be loaded via drag-and-drop.

Specifications

• Microcontroller: RP2040
• Processor: Dual-Core Arm Cortex-M0+
• Maximum Clock Frequency: 133 MHz
• SRAM: 264 KB
• Flash Memory: 2 MB QSPI
• USB Connector: Type-C
• Number of GPIOs: 26 multi-purpose GPIOs
• Analog Input: 3 external ADC inputs
• ADC: 12-bit, 500 kS/s
• UART: 2
• SPI: 2
• I²C: 2
• PWM Channels: 16
• PIO: 8 state machines
• GPIO Logic Level: 3.3V
• Supported Supply Range: Approx. 1.8-5.5V DC via VSYS
• USB Supply: 5V
• BOOTSEL Button: Yes
• SWD Debug: Yes
• Internal Temperature Sensor: Yes
• Programming: UF2 via USB, MicroPython, C/C++
