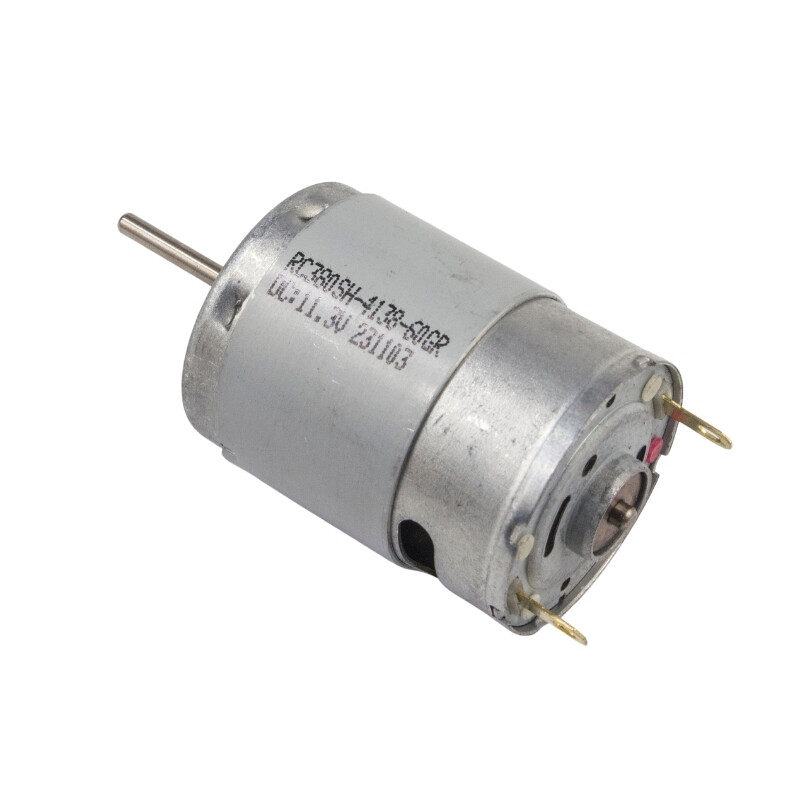

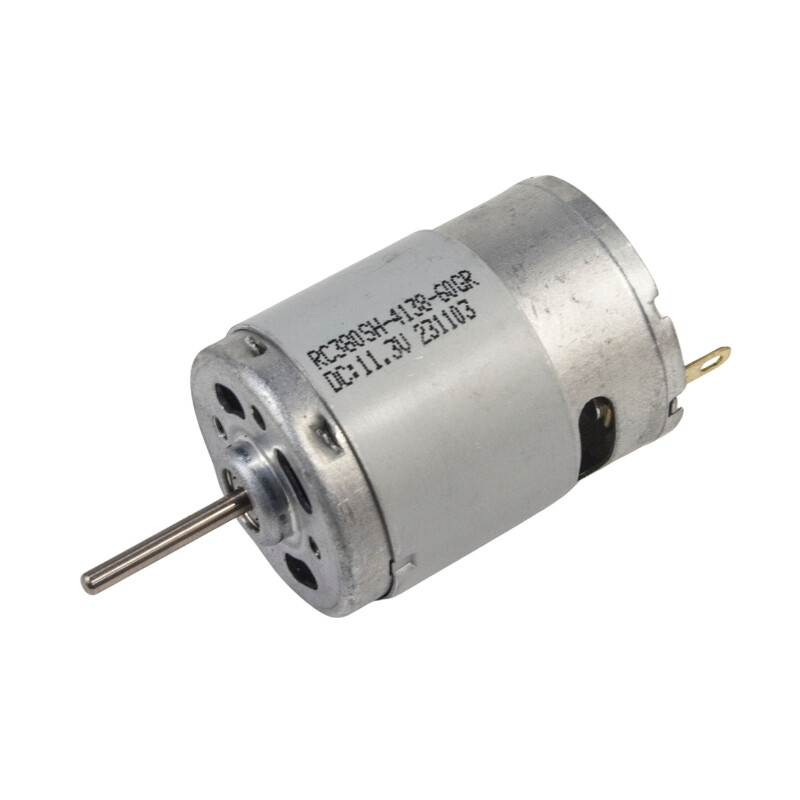

RC380 11.3V 20000Rpm Gearless DC Motor

RC380 11.3V 20000Rpm Gearless DC Motor

RC380 11.3V 20000Rpm Gearless DC Motor operates with 11.3V voltage and can reach a speed of 20000 revolutions per minute (RPM). Thanks to its high-speed structure, it offers a wide range of use from light mechanical projects to hobby applications. With its compact size and gearless structure, it is an ideal solution in systems requiring low torque and high speed.

It can be easily used in Arduino projects, mini fans, small robotic systems, model vehicles and other DC motor-based applications. Suitable for both amateur users and professional developers.

Technical Specifications:

• Working Voltage: 11.3V DC
• Idle Current: 700mA
• Strain Current: 10A
• Maximum Power: 113W
• Speed: 20000 RPM

Motor Dimensions:

• Motor Diameter: 27.5mm
• Motor Length: 40mm (Excluding Shaft)
• Shaft Diameter: 2.25mm
• Shaft Length: 16mm
