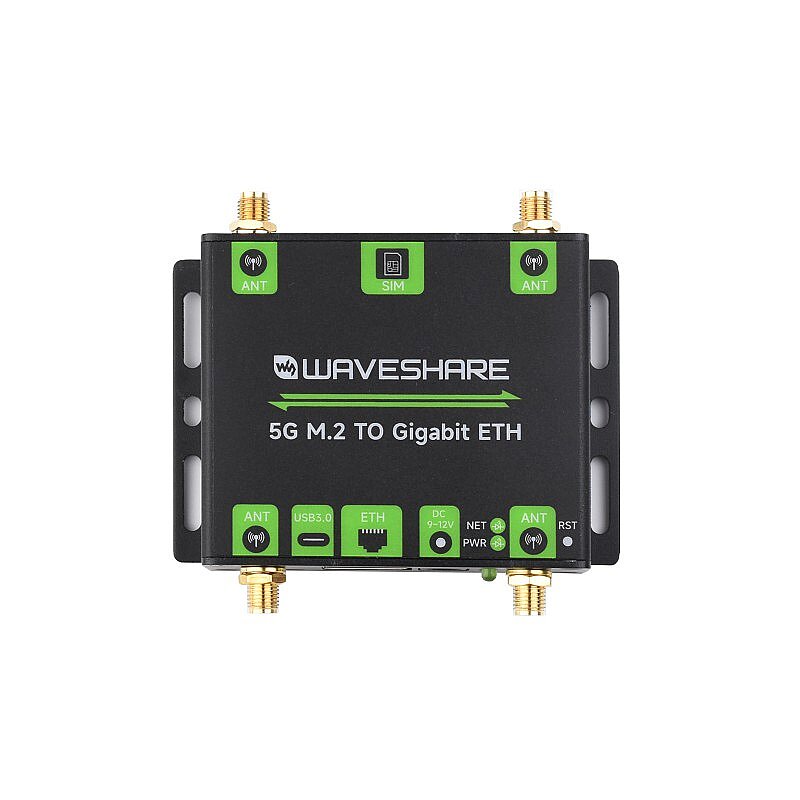

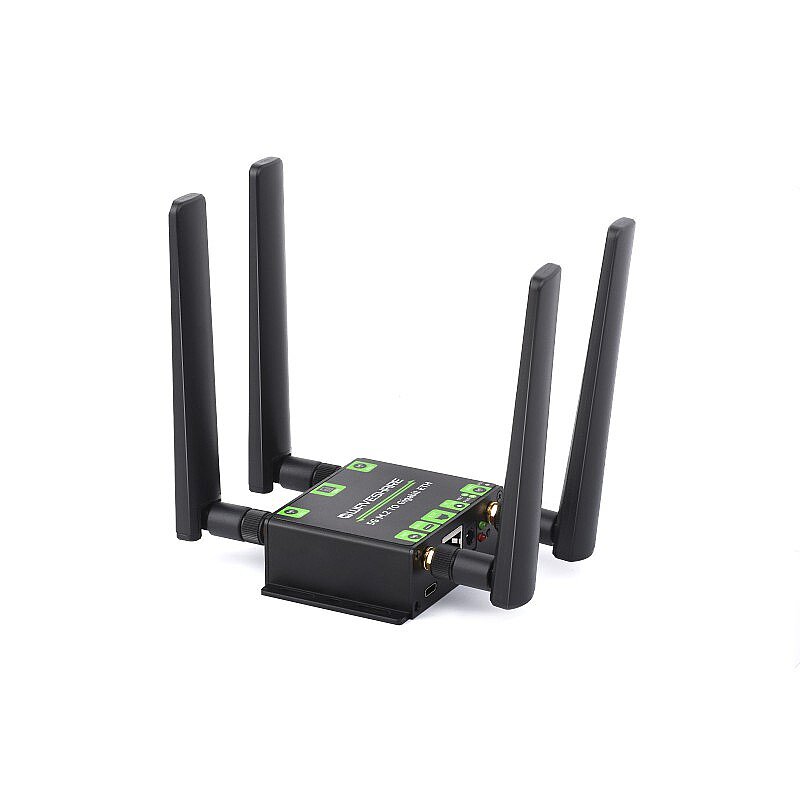

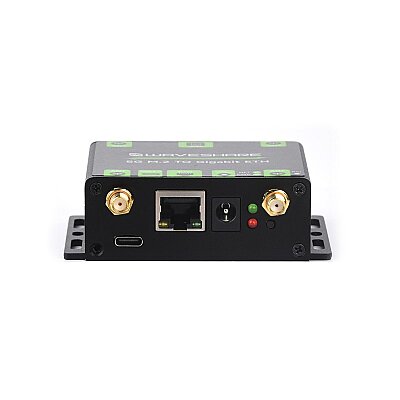

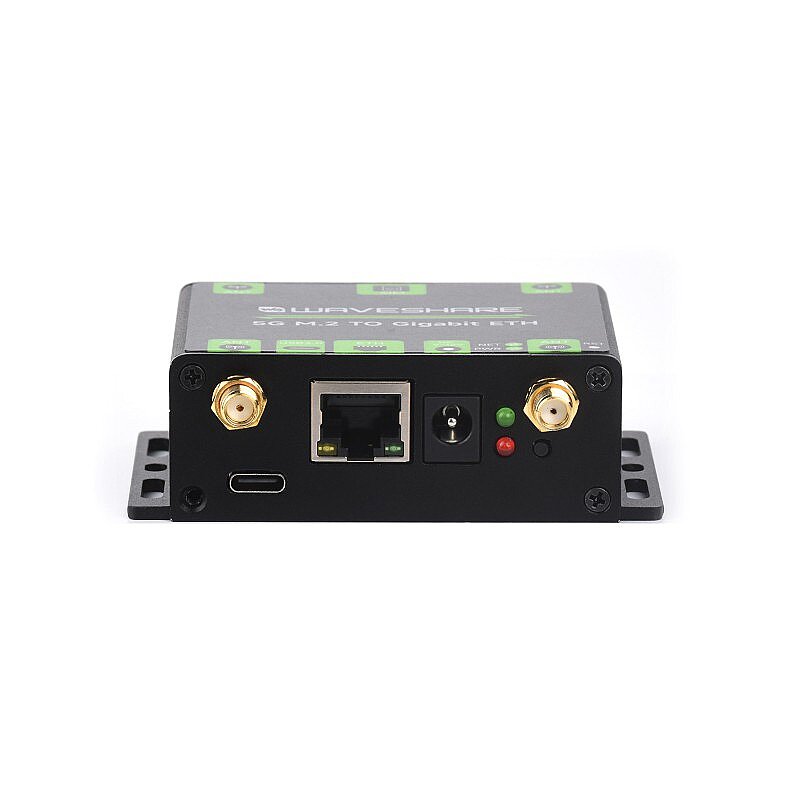

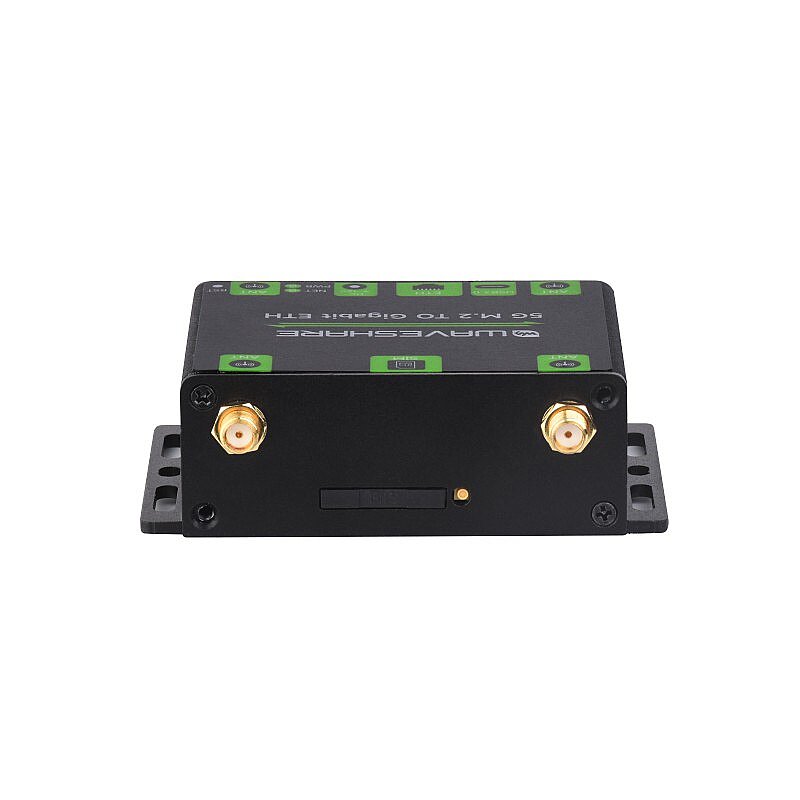

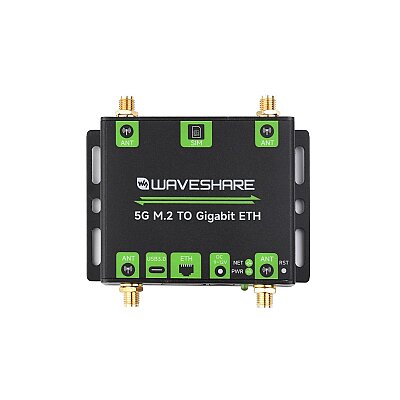

RM520N-GL 5G M.2 to Gigabit Ethernet Converter Module

RM520N-GL 5G M.2 to Gigabit Ethernet Converter Module

The RM520N-GL 5G M.2 to Gigabit Ethernet Converter Module is a 5G communication kit designed to deliver 5G mobile internet connectivity to computers, Raspberry Pi boards, NVIDIA Jetson devices, industrial PCs, and network equipment via Gigabit Ethernet or high-speed USB connections.

The RM520N-GL is an industrial-grade M.2 Key-B WWAN module based on the Qualcomm Snapdragon X62 platform. It supports 5G NR SA and NSA, 4G LTE, and WCDMA networks. It is compatible with Windows, Linux, and Android systems and also offers GNSS support.

The converter board included in the kit features an RTL8125 Ethernet controller. It is designed to enable the direct transfer of 5G connectivity to network devices via Gigabit Ethernet.

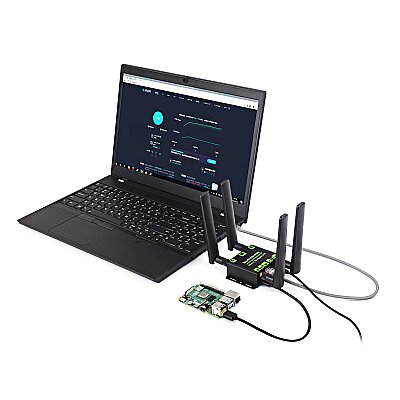

The board also offers the capability to connect directly to PC, Raspberry Pi, or Jetson systems via USB.

Wiki Page

Specifications

• SKU: 26159
• Power Input: 9–12V DC jack
• Alternative USB Power: 5V / 2A or higher
• Power Indicator: Yes
• 5G Module: Quectel RM520N-GL
• 5G Platform: Qualcomm Snapdragon X62
• 5G Standard: 3GPP Release 16
• 5G Type: Sub-6 GHz
• 5G NR SA: Supported
• 5G NR NSA: Supported
• 4G LTE: Supported
• 3G WCDMA / HSPA+: Supported
• M.2 Interface: M.2 Key-B
• RM520N-GL Dimensions: 30 × 52 × 2.3mm
• Ethernet: RJ45 Gigabit Ethernet
• Ethernet Controller: RTL8125
• USB Data Connection: USB 3.x
• Board USB Connector: Type-C
• Number of Antennas: 4
• GNSS: GPS / GLONASS / BeiDou / Galileo / QZSS

Package Contents

• 5G M.2 to Gigabit Ethernet Adapter Converter x1
• RM520N-GL + Heatsink Block x1
• 5G Antenna x4
• 12V Power Supply x1
• USB 3.2 Type-A to Type-C Cable (~1m) x1

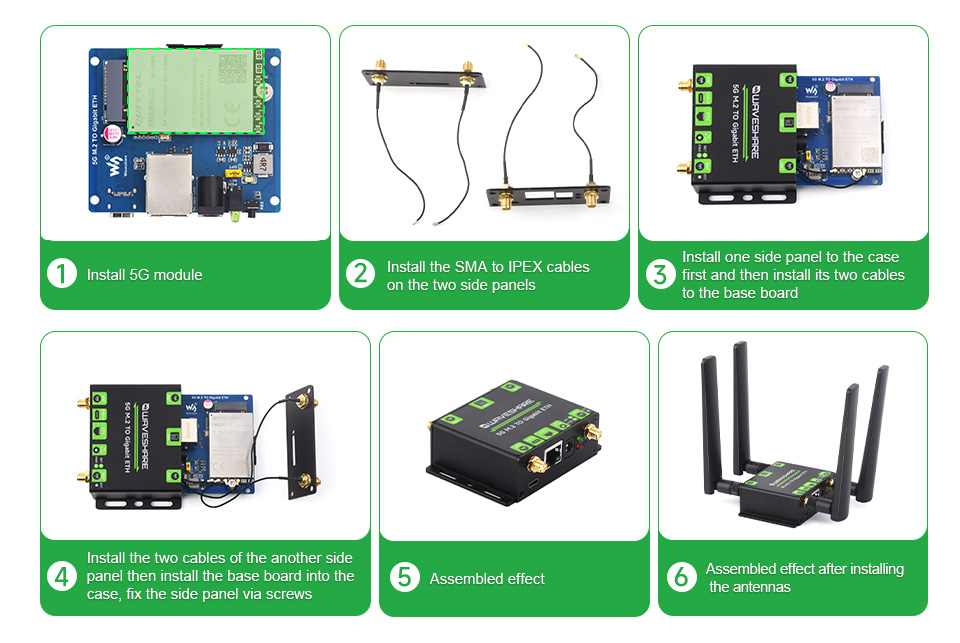

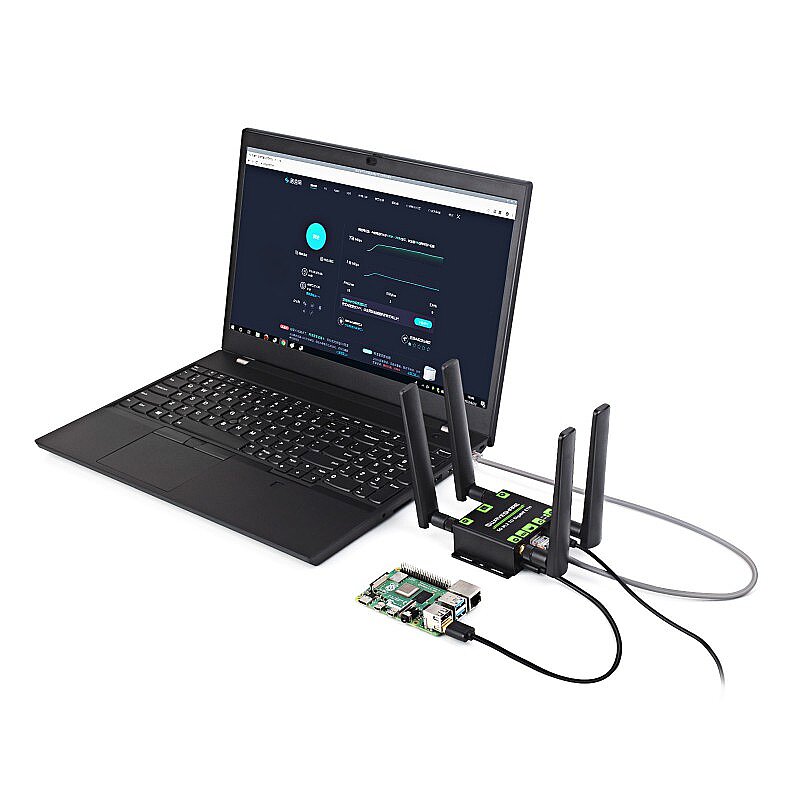

Setup

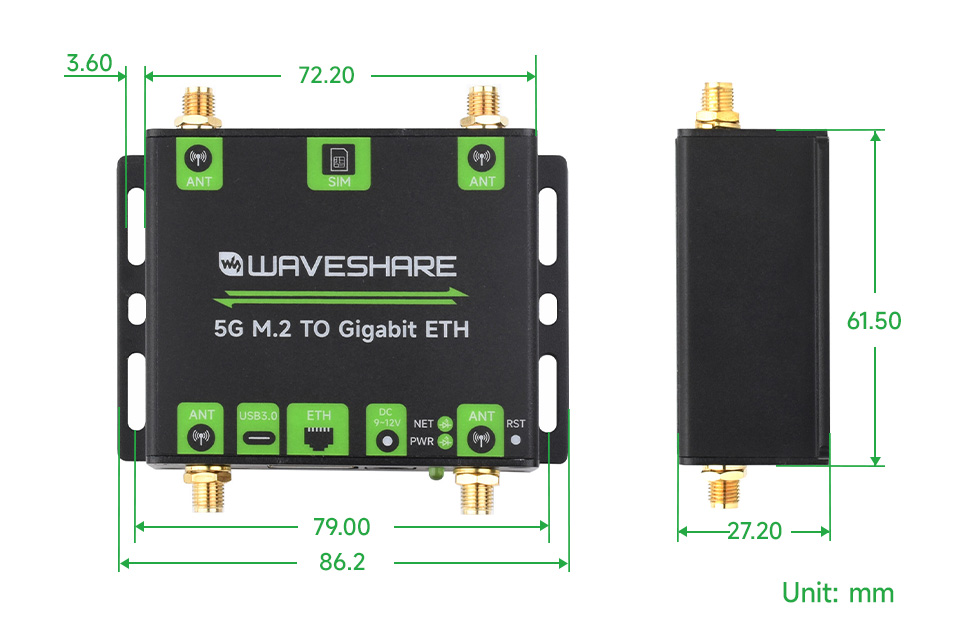

Size
