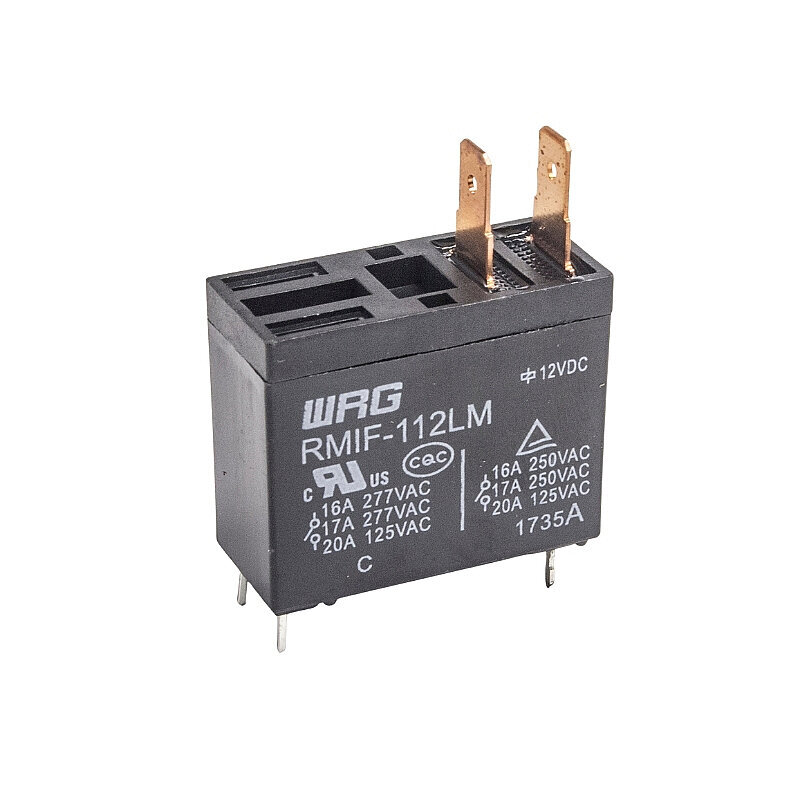

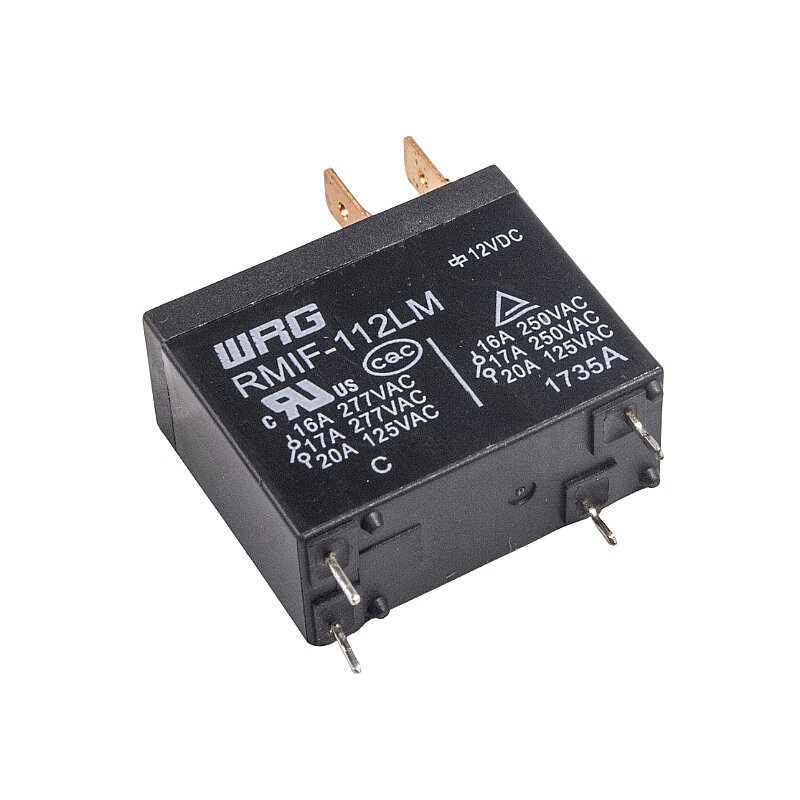

RMIF-112LM 12V 16A Relay
The RMIF-112LM 12V 16A Relay is a compact electromechanical power relay designed for controlling high-current electrical loads. With its 12V coil voltage, 16A maximum switching current, and SPST-NO normally open contact structure, it can be used in automotive, industrial automation, power control, and various electronic circuits.
Specifications
- Coil Voltage: 12V DC
- Coil Resistance: 720Ω
- Coil Power: 540mW
- Maximum Switching Current: 16A
- Contact Capacity: 17A @ 277VAC
- Contact Structure: 1 Form A / SPST-NO
- Contact Material: Silver alloy
- Contact Resistance: 100mΩ
- Number of Pins: 4
- Mounting Type: Through Hole
- Body Dimensions: 29 × 12.6 mm
- Operating Temperature: -40°C ~ +105°C
