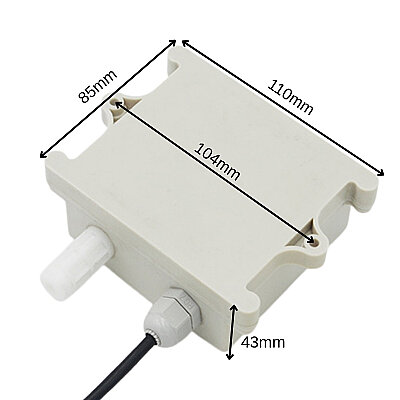

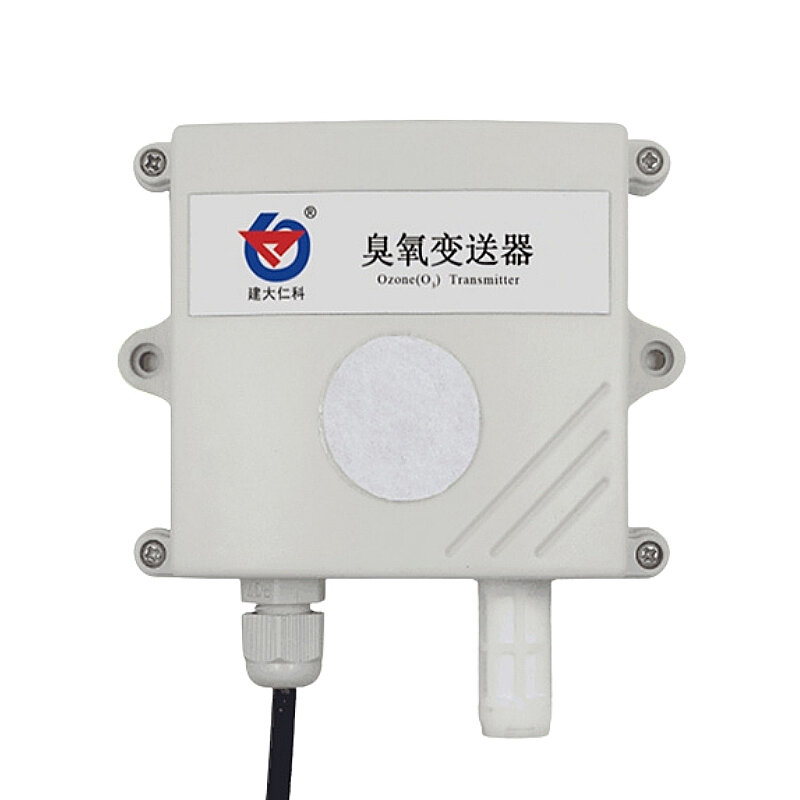

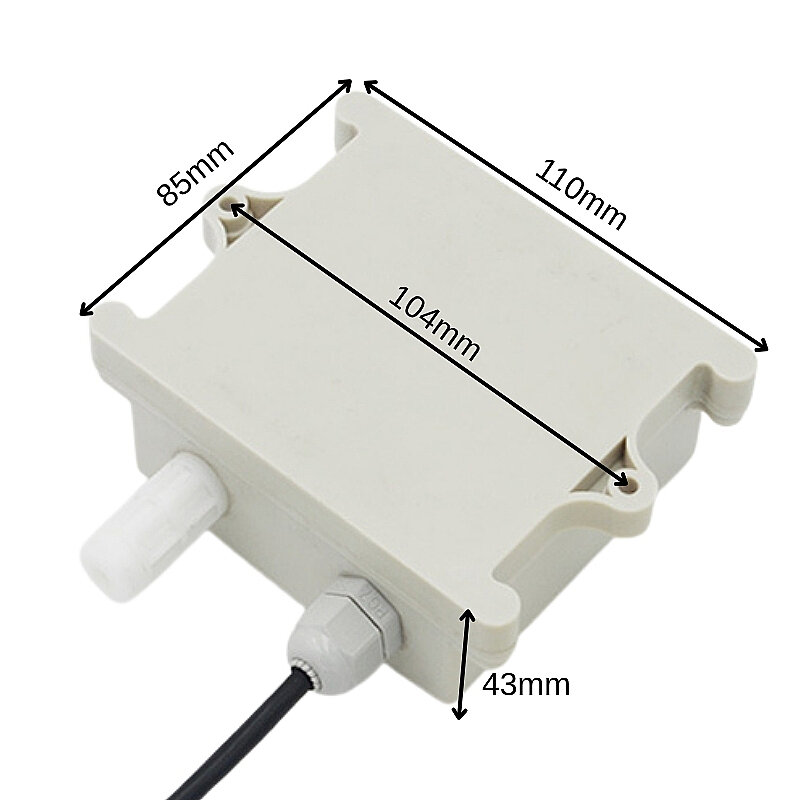

RS-O3-I20-2-100P-2 0-100ppm 4-20mA Wall-Mounted Ozone Sensor

RS-O3-I20-2-100P-2 0-100ppm 4-20mA Wall-Mounted Ozone Sensor

The RS-O3-I20-2-100P-2 0-100ppm 4-20mA Wall-Mounted Ozone Sensor is an industrial gas transmitter designed for the continuous monitoring of O3 (ozone) concentrations in ambient air from a fixed location.

The 4–20mA current output is particularly suitable for applications—such as those in industrial facilities—requiring the transmission of analog measurement data between the sensor and the control system.

The use of a current signal enables practical integration into industrial measurement systems involving long cable runs.

Specifications

• Measured Gas: O3 / Ozone
• Measurement Principle: Electrochemical
• Analog Output: 4–20mA
• Supply Voltage: 10–30V DC
• Power Consumption: Approx. 0.12W
• Measurement Range: 0–100 ppm
• Resolution: 0.01 ppm
• Accuracy: ±6% FS
• Data Update Interval: 1 second
• Response Time: ≤180 seconds
• Warm-up Time: ≥5 minutes
• Repeatability: ≤2%
• Zero Drift: ±1% FS
• Long-term Stability: ≤7% signal value / year
• Operating Temperature: -10°C to +55°C
• Operating Humidity Range: 15–90% RH, non-condensing
• Operating Pressure: 91–111 kPa
• Mounting Type: Wall mount
• Signal Type: Industrial analog current output
