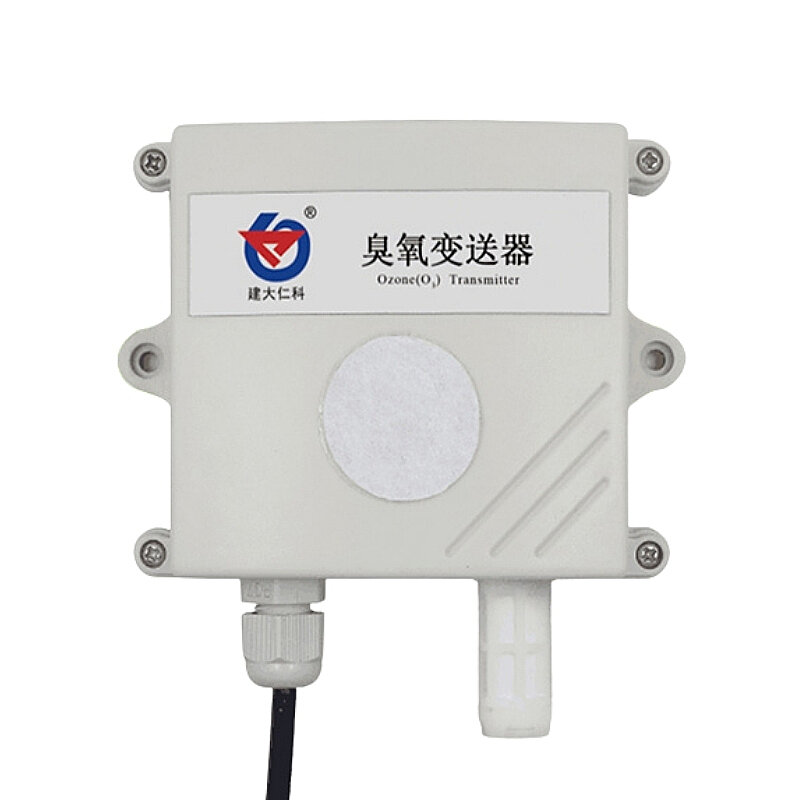

RS-O3-I20-2-10P-2 0-10ppm 4-20mA Wall-Mounted Ozone Sensor

RS-O3-I20-2-10P-2 0-10ppm 4-20mA Wall-Mounted Ozone Sensor

The RS-O3-I20-2-10P-2 0-10ppm 4-20mA Wall-Mounted Ozone Sensor is an industrial gas transmitter designed for the continuous monitoring of O3 (ozone) concentrations in ambient air from a fixed location.

The 4–20mA current output is particularly suitable for applications in industrial facilities where analog measurement data needs to be transmitted between the sensor and the control system. The use of a current signal enables practical integration into industrial measurement systems involving long cable runs.

Specifications

• Measured Gas: O3 / Ozone
• Measurement Principle: Electrochemical
• Analog Output: 4–20mA
• Supply Voltage: 10–30V DC
• Power Consumption: Approx. 0.12W
• Measurement Range: 0–10 ppm
• 0–10 ppm Resolution: 0.01 ppm
• Accuracy: ±6% FS
• Data Update Rate: 1 second
• Response Time: ≤180 seconds
• Warm-up Time: ≥5 minutes
• Repeatability: ≤2%
• Zero Drift: ±1% FS
• Long-term Stability: ≤7% signal value / year
• Operating Temperature: -10°C to +55°C
• Operating Humidity Range: 15–90% RH, non-condensing
• Operating Pressure: 91–111 kPa
• Mounting Type: Wall mount
• Signal Type: Industrial analog current output
