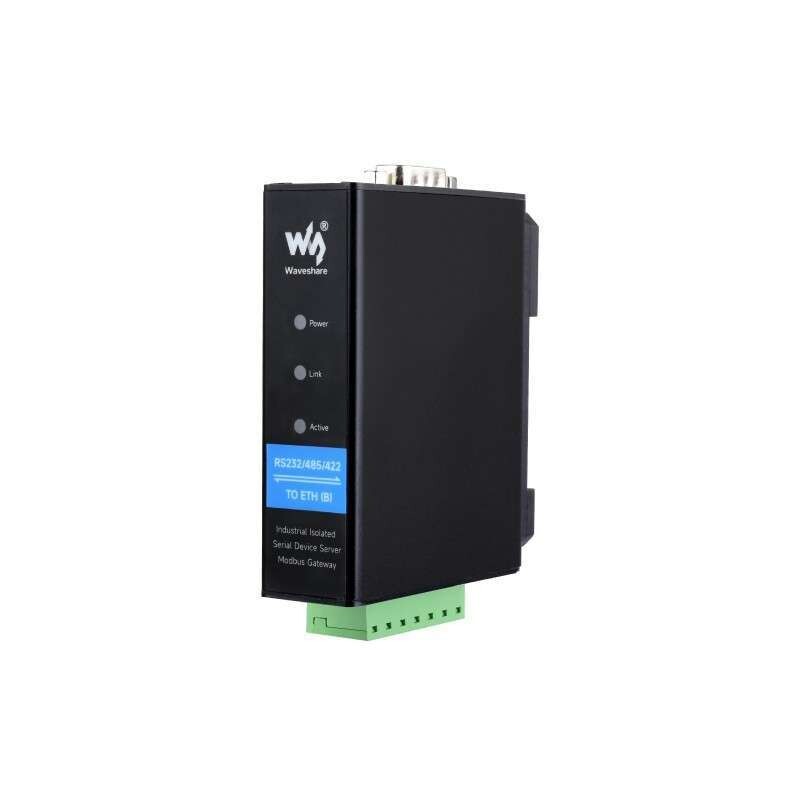

RS232/485/422 to RJ45 Converter Module

RS232/485/422 to RJ45 Converter Module

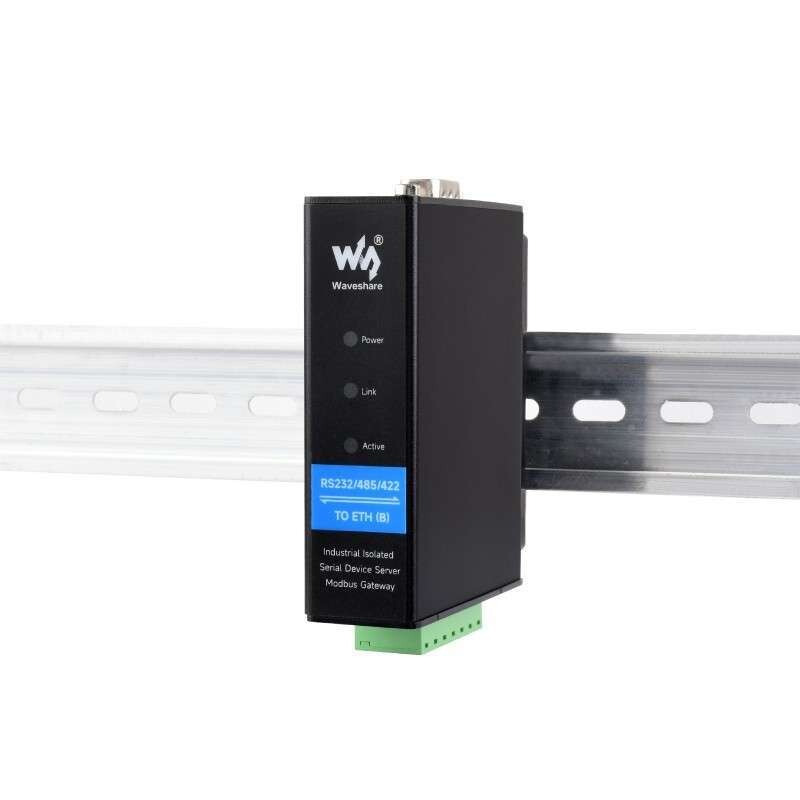

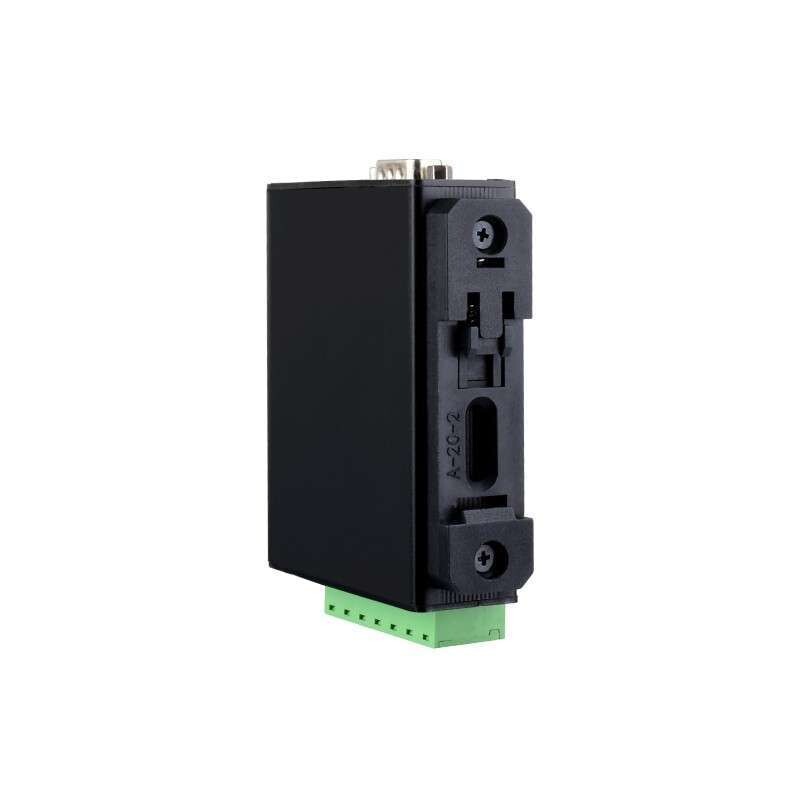

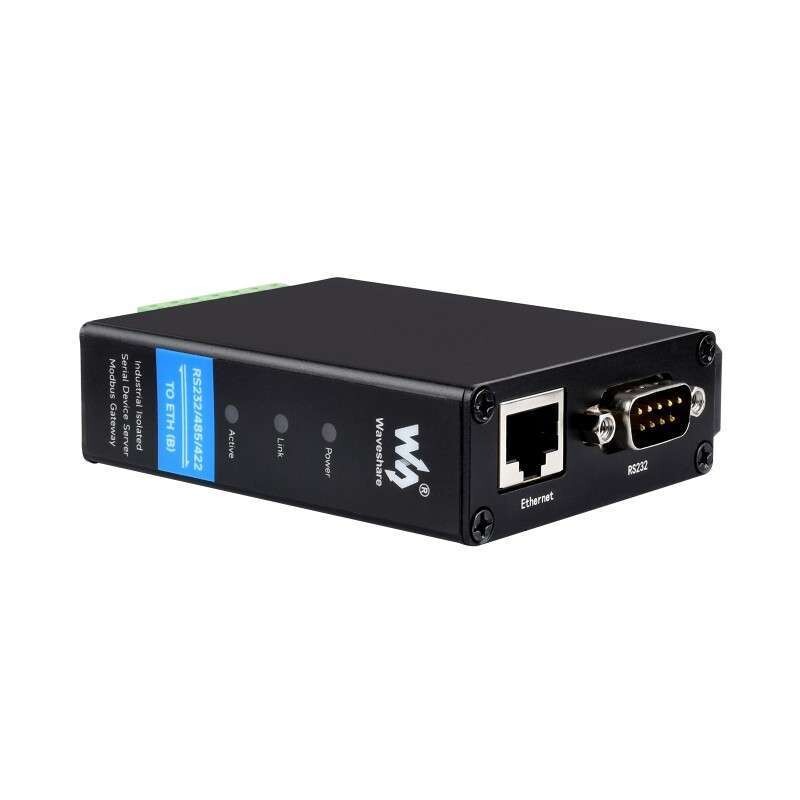

RS232/485/422 to RJ45 Converter Module, This is an RS232 designed for industrial environment The /485/422 device is a data collector / IoT gateway. Serial server, Modbus gateway, MQTT gateway, RS485 to JSON etc. It combines many functions in one, including: The module has RS232/485/422 and Ethernet port, uses DC port (outer diameter: 5.5 mm, inner diameter: 2.1 mm) and has screw terminal for power input. Rail mount supported case, small size, easy to install. Suitable for applications such as data collection, IoT gateway, safety and security IoT and smart device monitoring.

Features

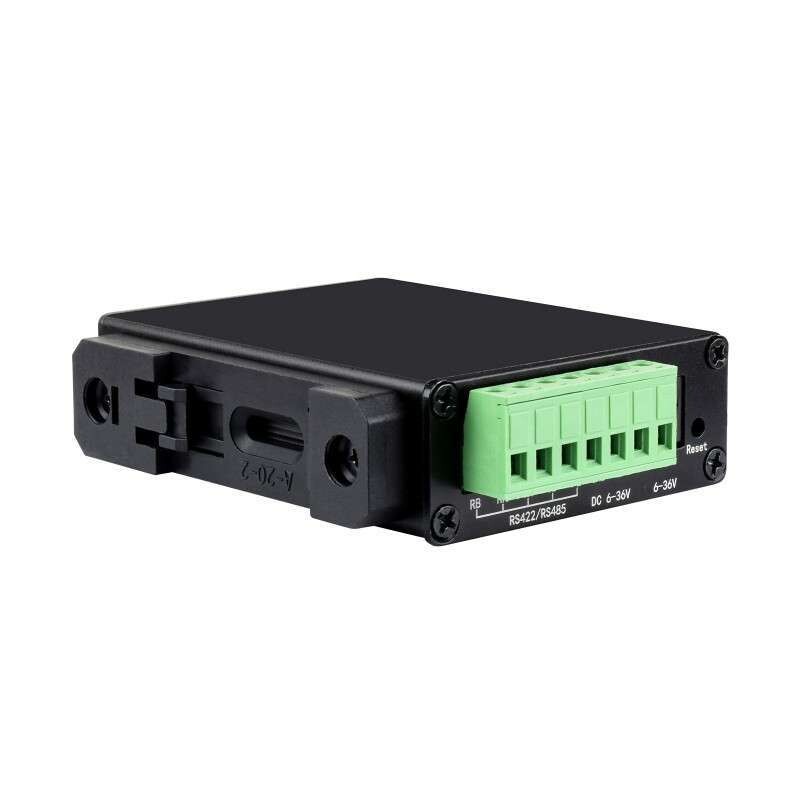

• Module Power Options: DC Jack, 6 ~ 36V DC power input via terminal block
• Isolation Protection: Power and signal isolation
• Serial Port: Isolated RS232/485/422
• Baudrate: 300 ~ 115200 bps
• Parity Bit: none, odd, even, mark, space
• Data Bit: 5 ~ 9 bit
• Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
• Communication Method: TCP/IP, VCOM
• Operating Modes: TCP server, TCP client, UDP, UDP multicast
• li>
• Operating Temperature Range: -40 ~ 85°C
• Dimension: 88.7x72.5x24.2mm
