RS232/485/422 to RJ45 Converter Module - PoE Ethernet Port

RS232/485/422 to RJ45 Converter Module - PoE Ethernet Port

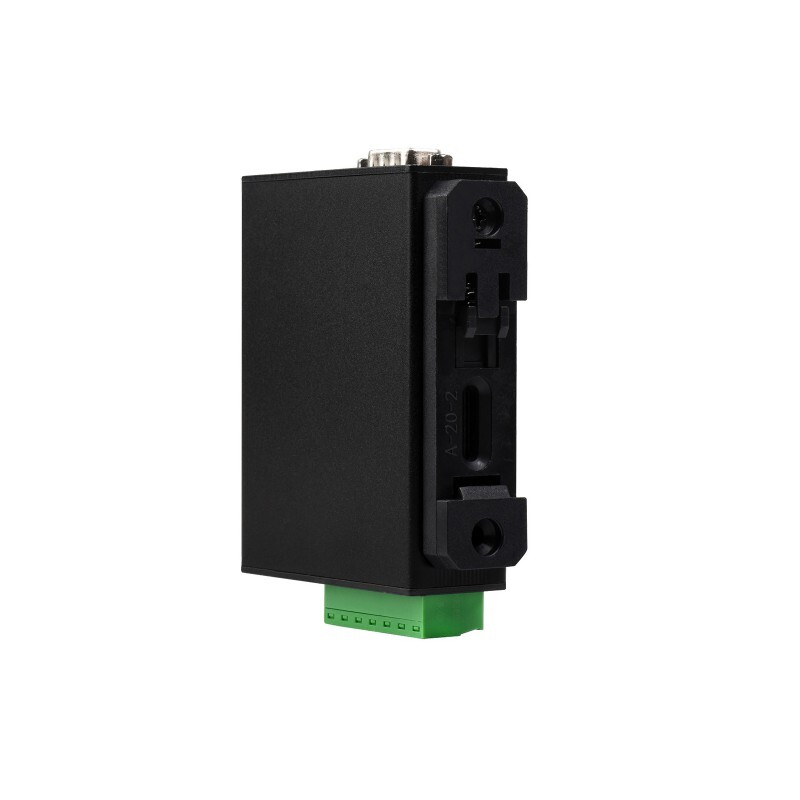

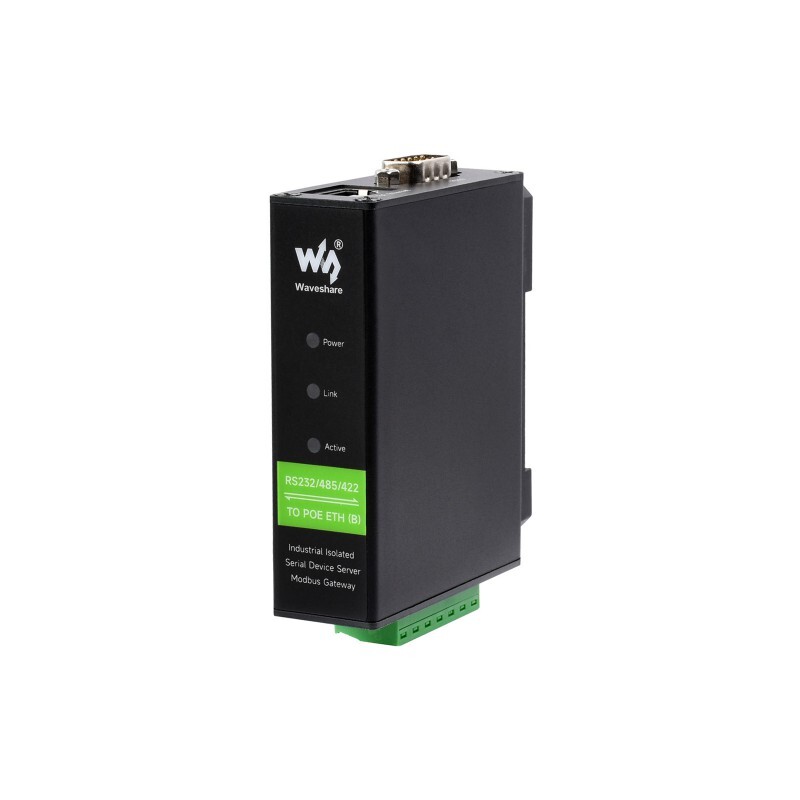

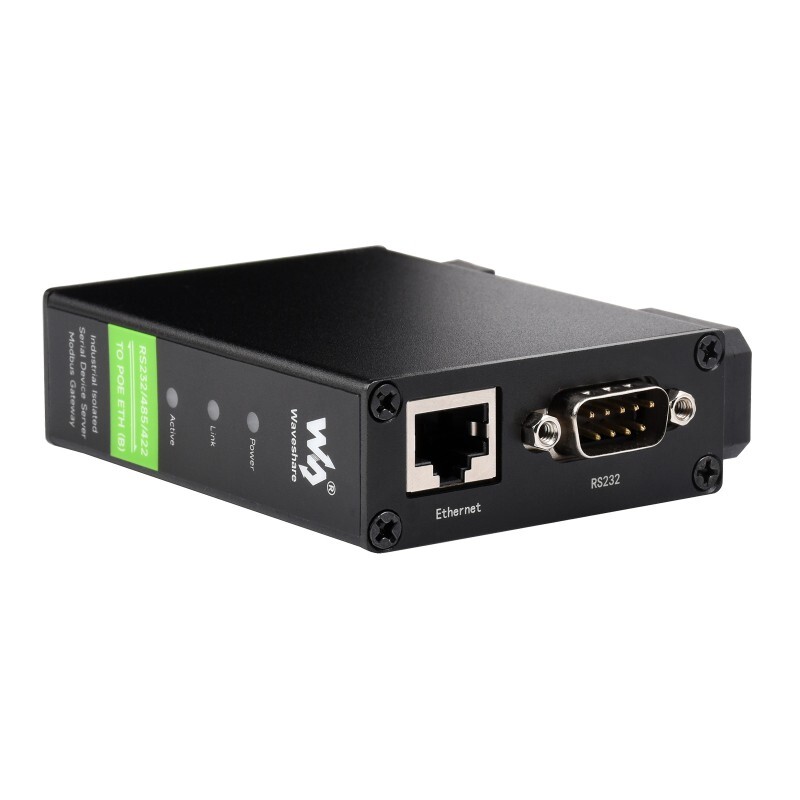

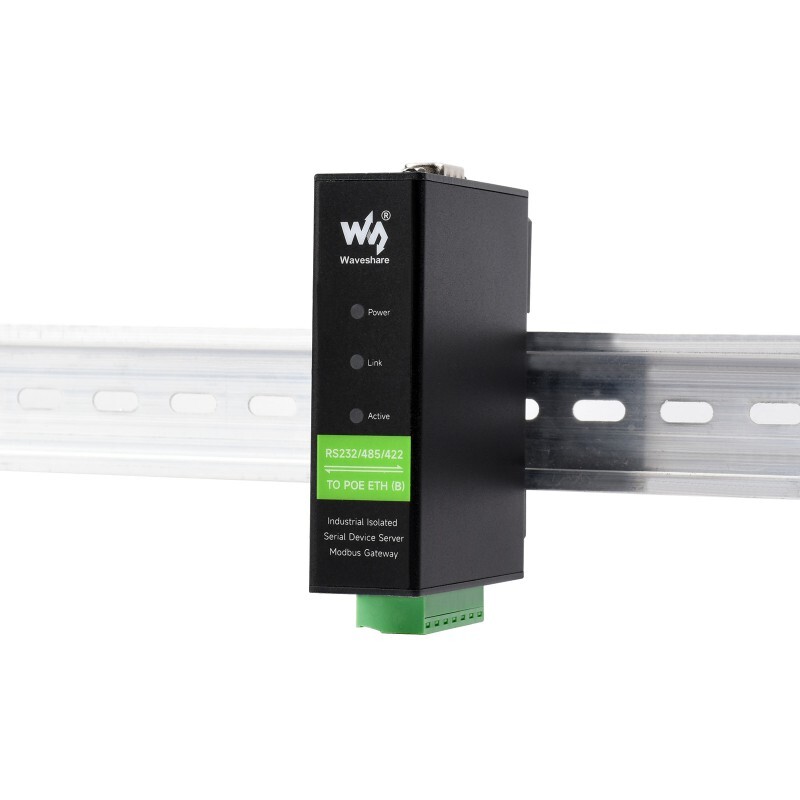

RS232/485/422 to RJ45 Converter Module - PoE Ethernet Port, This is an RS232/485/422 device data collector / IoT gateway designed for industrial environment. Serial server, Modbus gateway, MQTT gateway, RS485 to JSON etc. It combines many functions in one, including: The module has RS232/485/422 and Ethernet port, uses DC port (outer diameter: 5.5 mm, inner diameter: 2.1 mm) and has screw terminal for power input. Rail mount supported case, small size, easy to install. Suitable for applications such as data collection, IoT gateway, safety and security IoT and smart device monitoring.

Features

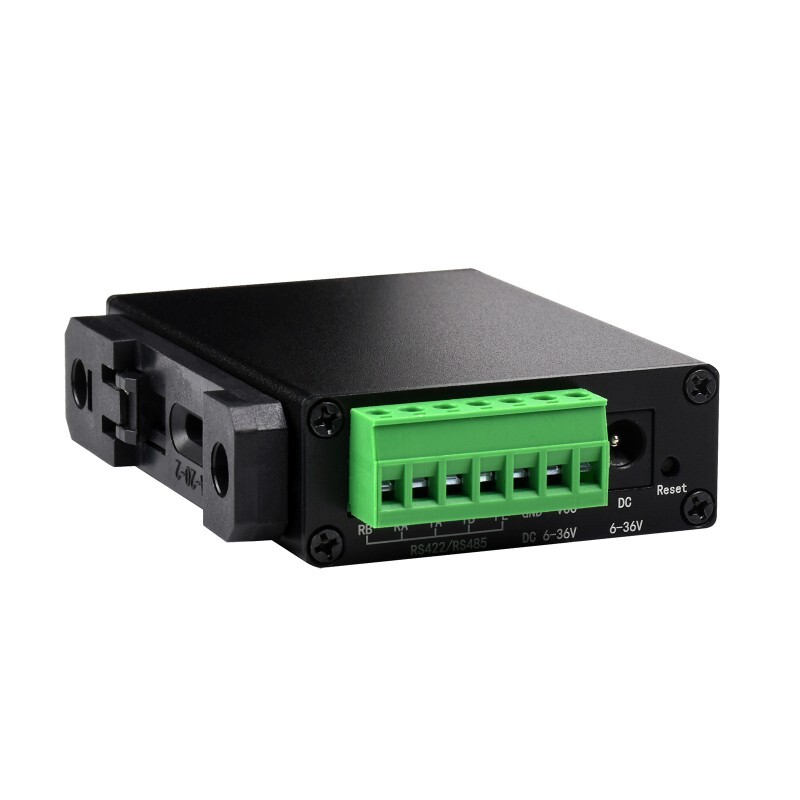

• Module Power Options: DC Jack, 6 ~ 36V DC power input via terminal, PoE Port
• Isolation Protection: Power and signal isolation
• Ethernet: PoE network port, support IEEE 802.3af standard
• span>
• Serial Port: Isolated RS232/485/422
• Baudrate: 300 ~ 115200 bps
• Parity Bit: none, odd, even, mark, space
• Data Bit: 5 ~ 9 bit
• Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
• Communication Method : TCP/IP, VCOM
• Operating Modes: TCP server, TCP client, UDP, UDP multicast
• Operating Temperature Range: -40 ~ 85°C
• Size: 88.7x72.5x24.2mm
