Skyrukh Surge H7 Autopilot Flight Control Board

Skyrukh Surge H7 Autopilot Flight Control Board

The Skyrukh Surge H7 Autopilot Flight Control Board, Skyrukh Surge H7, is a flight control board with high processing power based on the H7 architecture, developed for advanced drone and UAV projects. Thanks to its advanced sensor infrastructure, wide connectivity options, and modern firmware compatibility, it offers stable, fast, and reliable flight in FPV, cinematic multicopter, long-range, and industrial UAV applications.

The high computational capacity provided by the H7 architecture; Filtering, PID calculations, and sensor fusion are performed much faster, providing more stable control, lower latency, and smoother flight.

Internal Sensors and Components

• MCU: STM32H743, 2 MB Flash, 16 MHz crystal oscillator

• IMU: 2× (Bosch BMI088; InvenSense ICM20602)

• Barometer: Infineon DPS310

• OSD: MAX7456 (Analog FPV)

• Storage: 1× microSD (SDMMC), 32 KB FRAM

• Status Indicator: RGB status LED

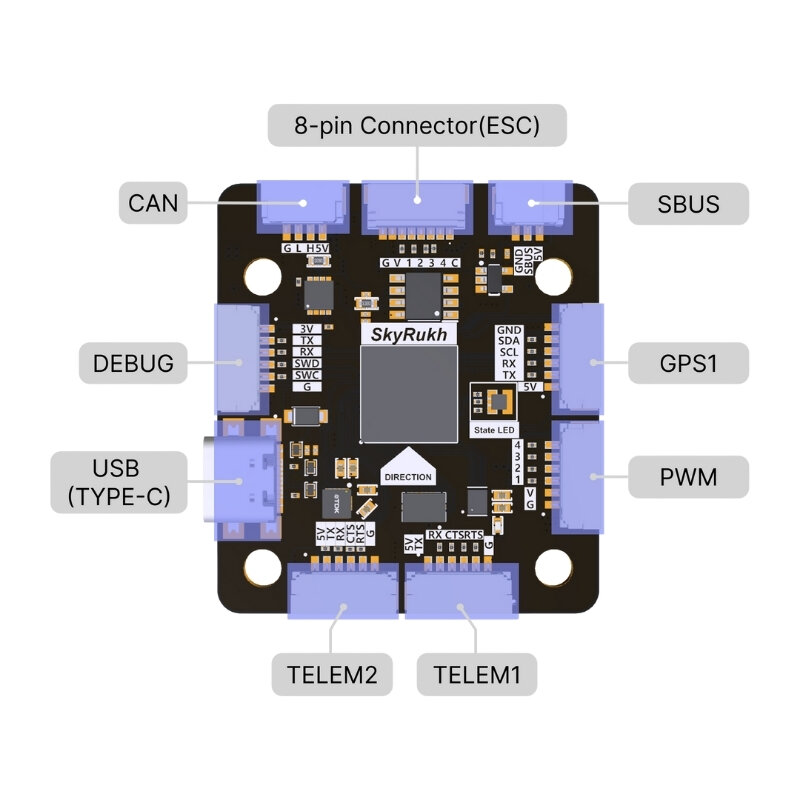

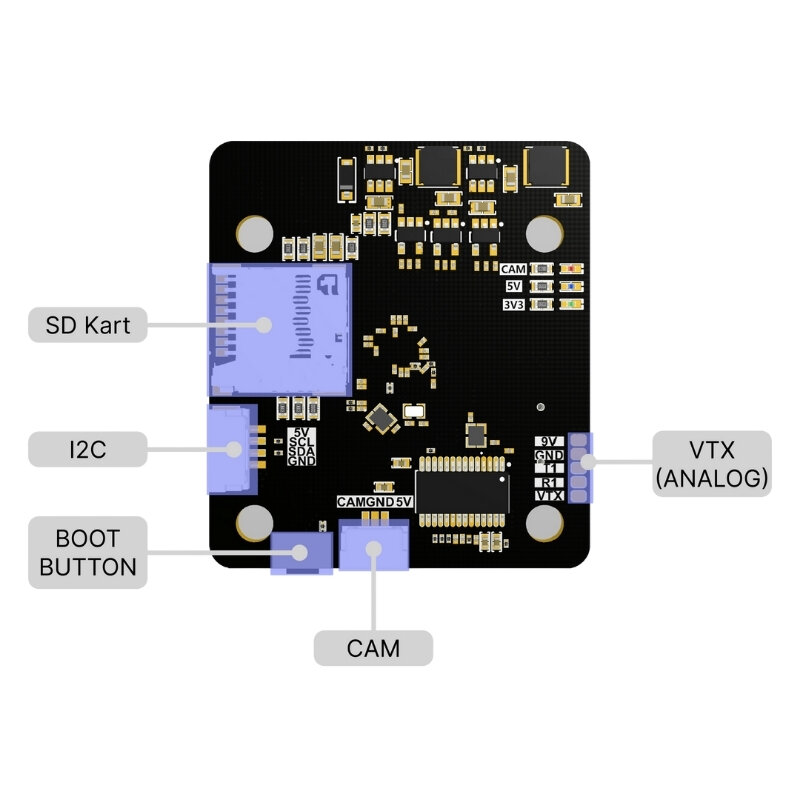

External Sensors and Interfaces

• UART: 3×

• GPS Port: 1× (pinout: VCC, GND, TX, RX, SCL, SDA)

• I²C: 2×

• CAN: 1×

• RC Inputs: SBUS, PPM / RCIN

• PWM / ESC Outputs: 8×

• Analog Input: 1× RSSI

• USB: 1× USB 2.0 OTG FS

• Debug Interface: SWD (SWDIO, SWCLK)

• microSD Slot: 1×

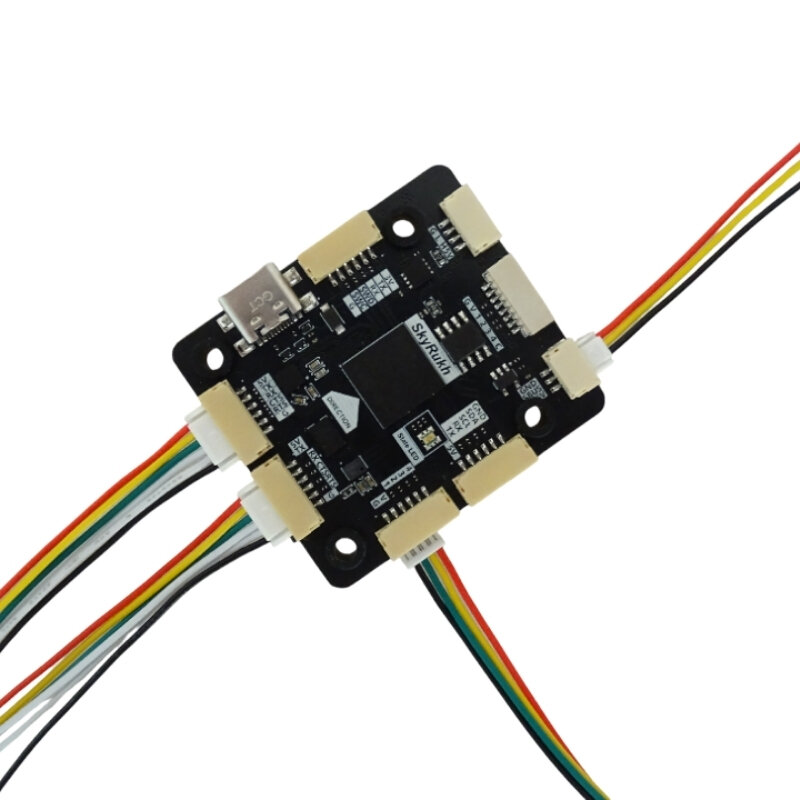

Box Content

• 1× Skyrukh Surge H7 Flight Control Card

• 2× 6 pin UART cable

• 1× I²C cable

• 1× SBUS cable
