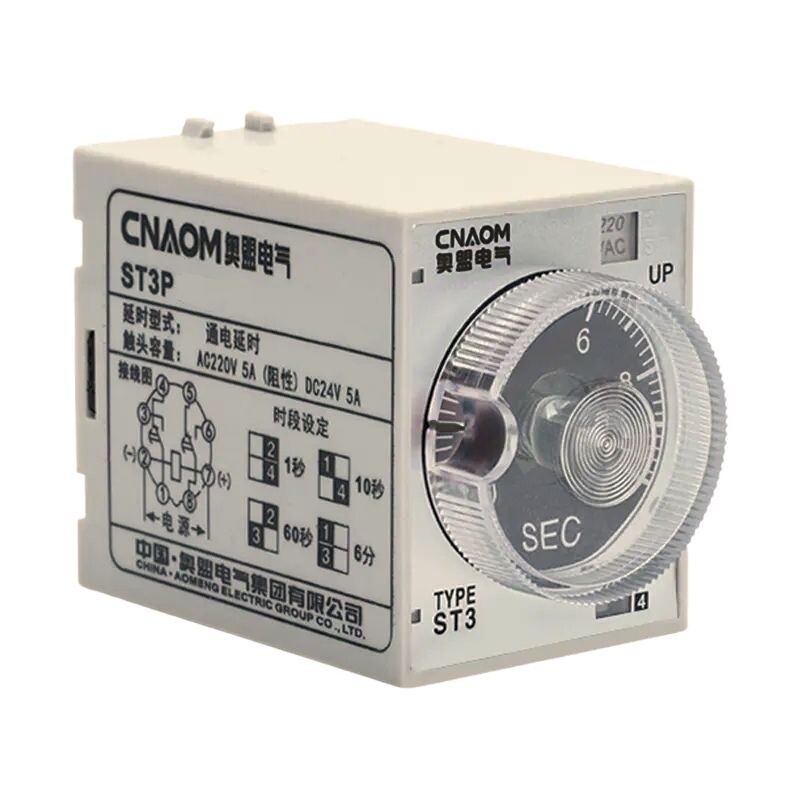

ST3PA-B AC/DC 24V Delayed Time Relay - 10S

ST3PA-B AC/DC 24V Delayed Time Relay - 10S. It is a delayed time relay that can be adjusted between 0 and 10 seconds. It is analog adjustable. You can adjust it with the potentiometer on it.

Adjustments such as delay or NO-NC contact are provided through the connection. The product has 8 pins. Delay time or no-nc contact can be adjusted with different connections on 8 pins.

Visual Representation. The relay with the time setting in the product title will be sent.

Technical Specifications

Model: ST3PA-B
Adjustable Time: 0-10S
Working Voltage: 24V AC/DC
Working Mode: On-Delay
Nominal Current: 5A
Dimensions: 40x50x59mm

Connection

st3p-connection
