SunnySky V4008 380KV Brushless Drone Motor Second Hand

Name: SunnySky V4008 380KV Brushless Drone Motor Second Hand
Brand: SunnySky
SKU: OUT.OUT.01.000057
Price: 1056.00 TRY
Availability: OutOfStock

Category: Outlet Brand: SunnySkyProduct code : OUT.OUT.01.000057

880,00 TL + VAT

1.056,00 TL

Notify Me When It Arrives

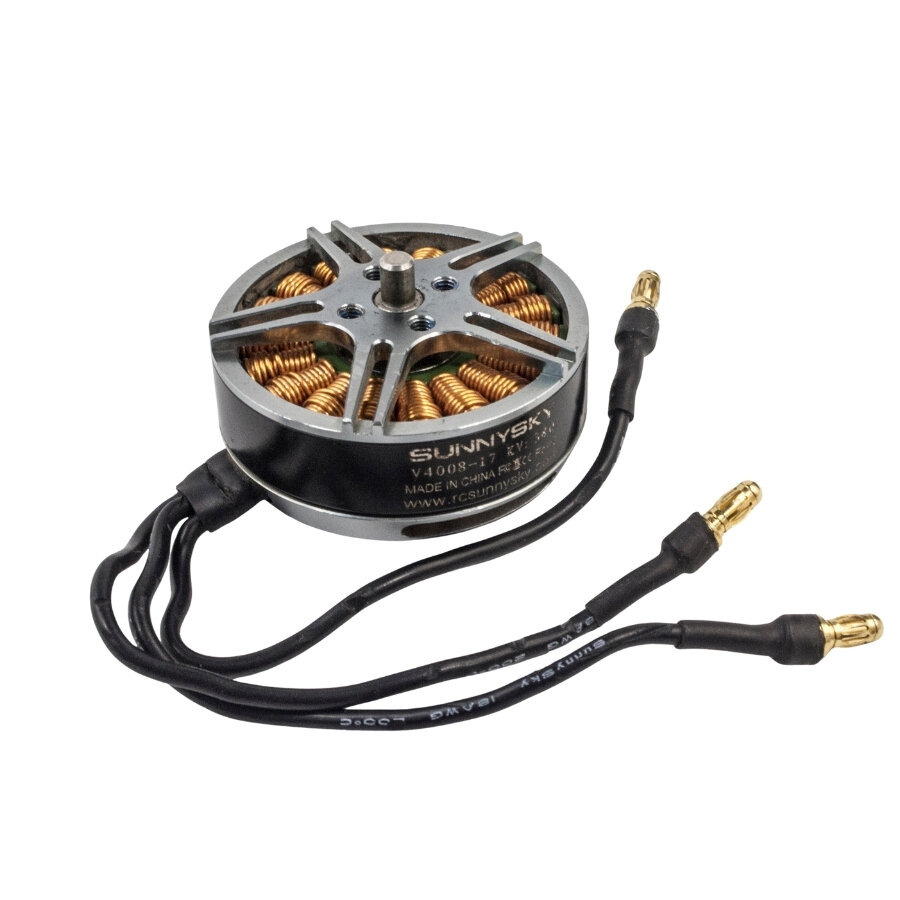

SunnySky V4008 380KV Brushless Drone Motor Second Hand

SunnySky V4008 380KV Brushless Drone Motor, Sunnysky V series of motors are specially designed power for long-endurance multirotor aircraft. Designing style of the whole series are high efficiency, stable stable structure, light weight, high consistency etc.. These flat V series motors are designed for long flight time multirotors. These motors can produce enough torque at low RPM and work at peak efficiency during flight.

The whole series uses Sunnysky patented Stepped and knurled design that not only efficiently prevent motors from getting loose, but also reduce the probability of
malfunction and unstable output power. The whole series use original Japanese EZO bearings that provide quiet and stable flight in the air.

This product is second-hand material. Therefore, it may have scratches, solder, etc. All products are tested for functionality before being shipped.

Specification

Stator Diameter	40mm	Rotor Diameter	44.3mm
Stator Thickness	8mm	Body Length	20mm
No.of Stator Slots	18	Max Lipo Cell	4-6S
No.of Rotor Poles	24	ESC	30-40A
Motor Kv	380	Recommended Prop(inch)	EOLO CN125/CN135/CN155.5/CN176.2
No-load current	0.5A/10V	Recommended single take-off Weight	≤1000g
Motor Resistance	131mΩ
Max Continuous Current	20A/30s
Max Continuous Power	500W
Weight	105g

Prop(inch)	Voltage(V)	RPM	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
EOLO CN12*5	22.2	2983	0.7	200	16	12.87	68℃
		3514	1.2	300	27	11.26
		4020	1.7	400	38	10.60
		4440	2.3	500	51	9.79
		4785	2.9	600	64	9.32
		5204	3.6	700	80	8.76
		5568	4.3	800	95	8.38
		5830	5	900	111	8.11
		6167	5.8	1000	129	7.77
		6964	8.4	1293	186	6.93
	25	2993	0.6	200	15	13.33
		3501	1.1	300	28	10.91
		4008	1.5	400	38	10.67
		4440	2	500	50	10.00
		4780	2.6	600	65	9.23
		5212	3.2	700	80	8.75
		5624	3.8	800	95	8.42
		5855	4.5	900	113	8.00
		6172	5.2	1000	130	7.69
		6738	6.8	1200	170	7.06
		7662	10.2	1580	255	6.20
EOLO CN13*5	22.2	2483	0.6	200	13	15.02	83℃
		2978	1	300	22	13.51
		3367	1.5	400	33	12.01
		3762	2	500	44	11.26
		4124	2.6	600	58	10.40
		4440	3.3	700	73	9.56
		4716	4	800	89	9.01
		4915	4.7	900	104	8.63
		5232	5.4	1000	120	8.34
		5757	7.05	1200	157	7.67
		6109	8.9	1400	198	7.09
		6704	11.2	1610	249	6.48
	25	2465	0.5	200	13	16.00
		2873	0.9	300	23	13.33
		3379	1.3	400	33	12.31
		3758	1.9	500	48	10.53
		4125	2.4	600	60	10.00
		4525	2.9	700	73	9.66
		4782	3.5	800	88	9.14
		5026	4.2	900	105	8.57
		5282	4.9	1000	123	8.16
		5760	6.4	1200	160	7.50
		6250	7.9	1400	198	7.09
		6621	9.8	1600	245	6.53
		7015	11.7	1800	293	6.15
		7283	13.1	1945	328	5.94
EOLO CN15*5.5	22.2	1915	0.5	200	11	18.02	100℃2min20s
		2358	0.8	300	18	16.89
		2656	1.3	400	29	13.86
		3040	1.8	500	40	12.51
		3267	2.3	600	51	11.75
		3482	2.9	700	64	10.87
		3716	3.5	800	78	10.30
		3920	4.2	900	93	9.65
		4131	4.9	1000	109	9.19
		4504	6.35	1200	141	8.51
		4816	8.15	1400	181	7.74
		5185	9.9	1600	220	7.28
		5450	12	1800	266	6.76
		6013	16.4	2210	364	6.07
	25	1932	0.4	200	10	20.00
		2333	0.8	300	20	15.00
		2679	1.2	400	30	13.33
		2992	1.55	500	39	12.90
		3281	2.1	600	53	11.43
		3460	2.6	700	65	10.77
		3726	3.1	800	78	10.32
		3926	3.7	900	93	9.73
		4166	4.4	1000	110	9.09
		4513	5.7	1200	143	8.42
		4868	7.2	1400	180	7.78
		5186	8.9	1600	223	7.19
		5469	10.7	1800	268	6.73
		5730	12.6	2000	315	6.35
		6035	14.8	2200	370	5.95
		6443	19.4	2651	485	5.47
EOLO CN17*6.2	14.8	1545	0.7	200	10	19.31	75℃
		1873	1.2	300	18	16.89
		2142	1.7	400	25	15.90
		2403	2.4	500	36	14.08
		2579	3.1	600	46	13.08
		2770	3.8	700	56	12.45
		2956	4.6	800	68	11.75
		3090	5.5	900	81	11.06
		3294	6.5	1000	96	10.40
		3548	8.5	1200	126	9.54
		3859	10.8	1400	160	8.76
		4078	13	1570	192	8.16
	16	1541	0.6	200	10	20.83
		1830	1.1	300	18	17.05
		2086	1.6	400	26	15.63
		2335	2.2	500	35	14.20
		2505	2.9	600	46	12.93
		2723	3.55	700	57	12.32
		2883	4.3	800	69	11.63
		2965	5.1	900	82	11.03
		3177	6	1000	96	10.42
		3548	7.9	1200	126	9.49
		3771	10.05	1400	161	8.71
		4058	12.5	1600	200	8.00
		4236	14.4	1770	230	7.68
