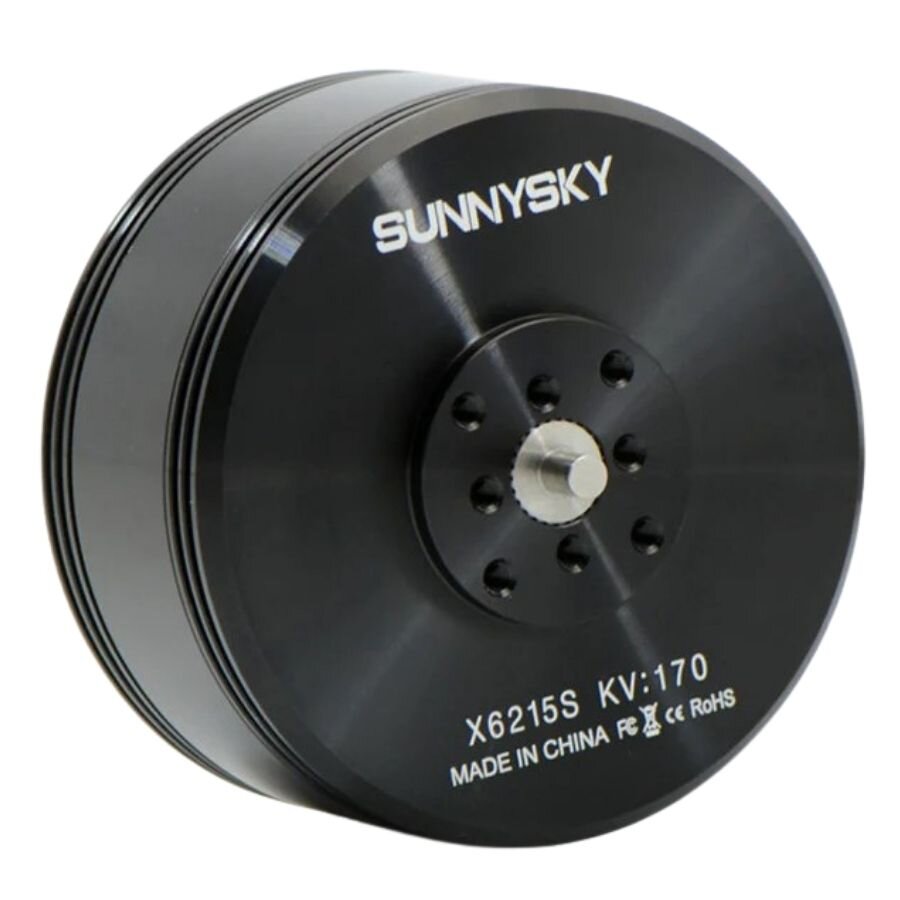

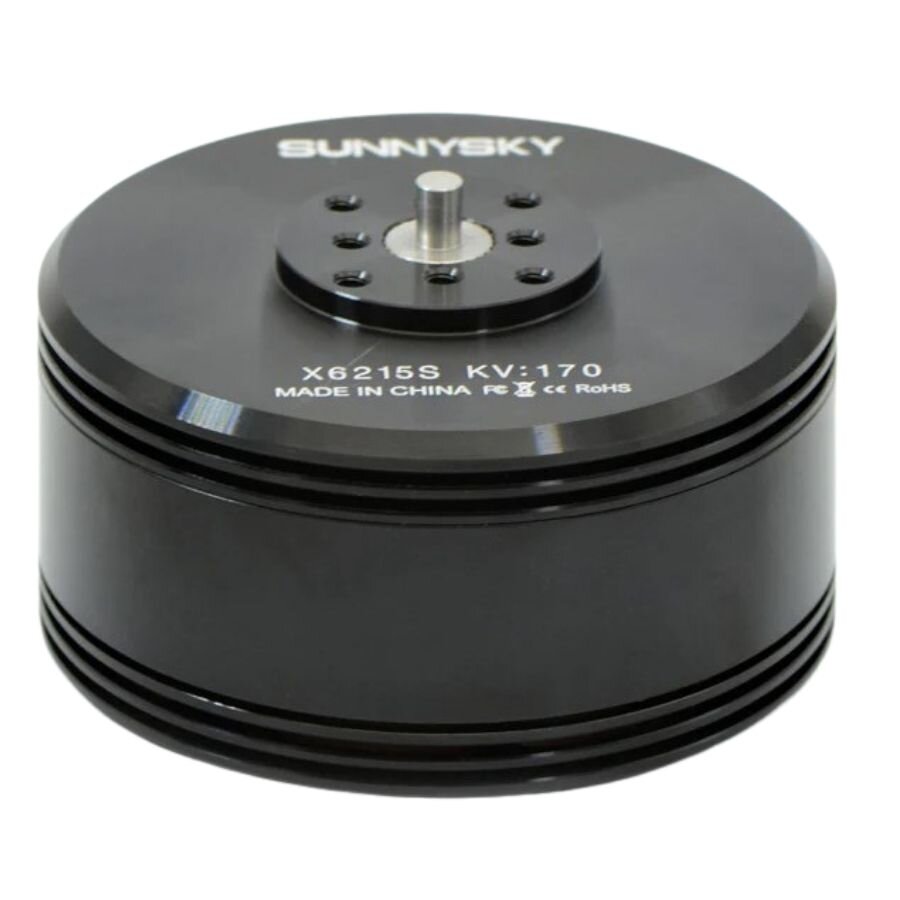

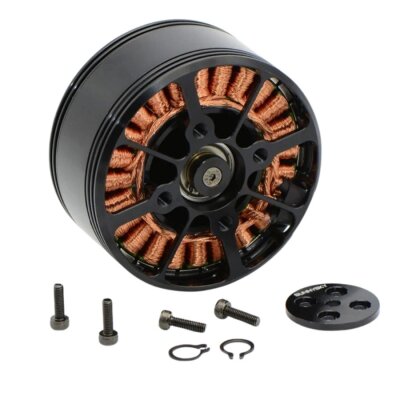

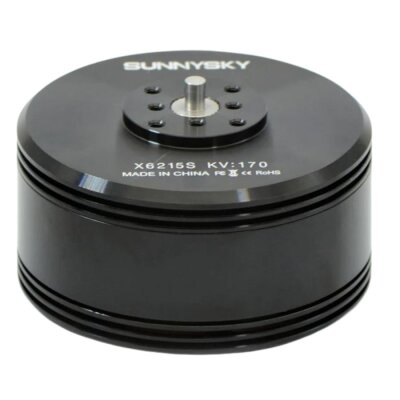

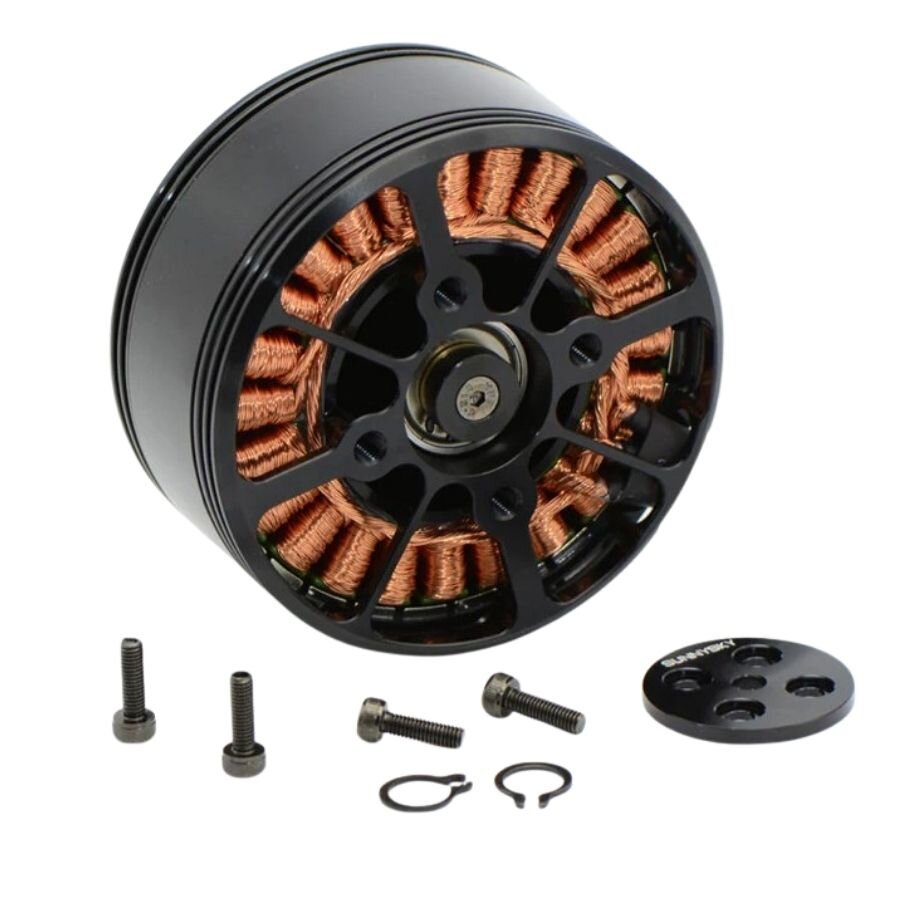

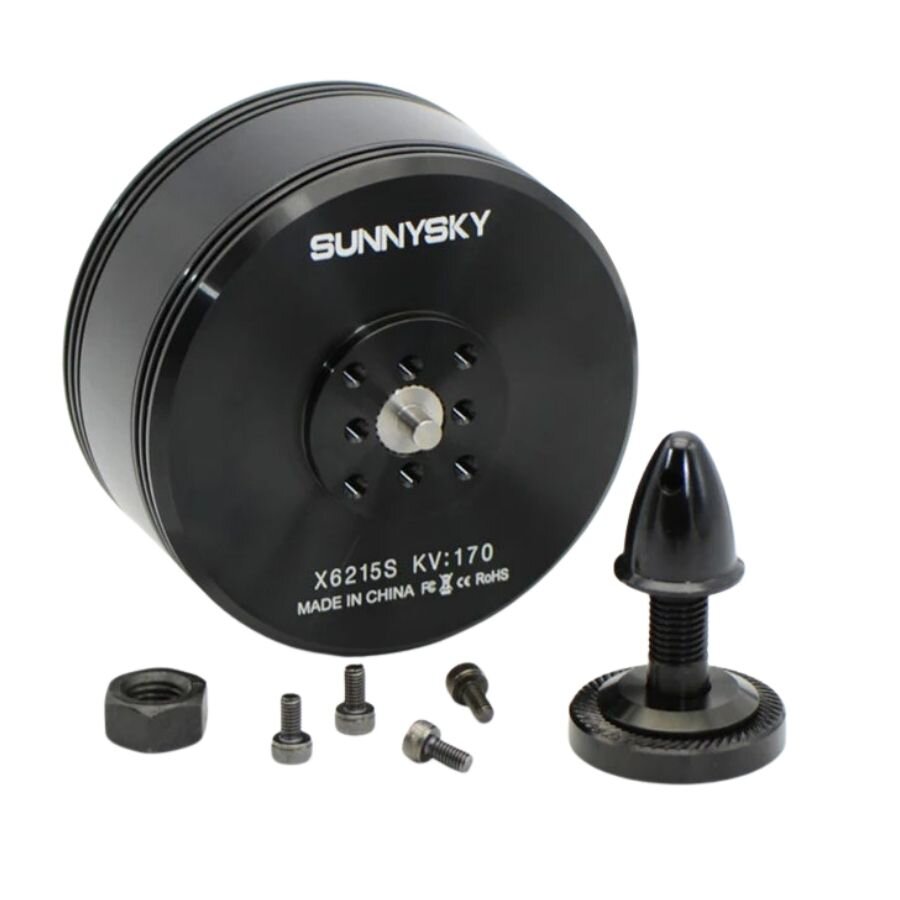

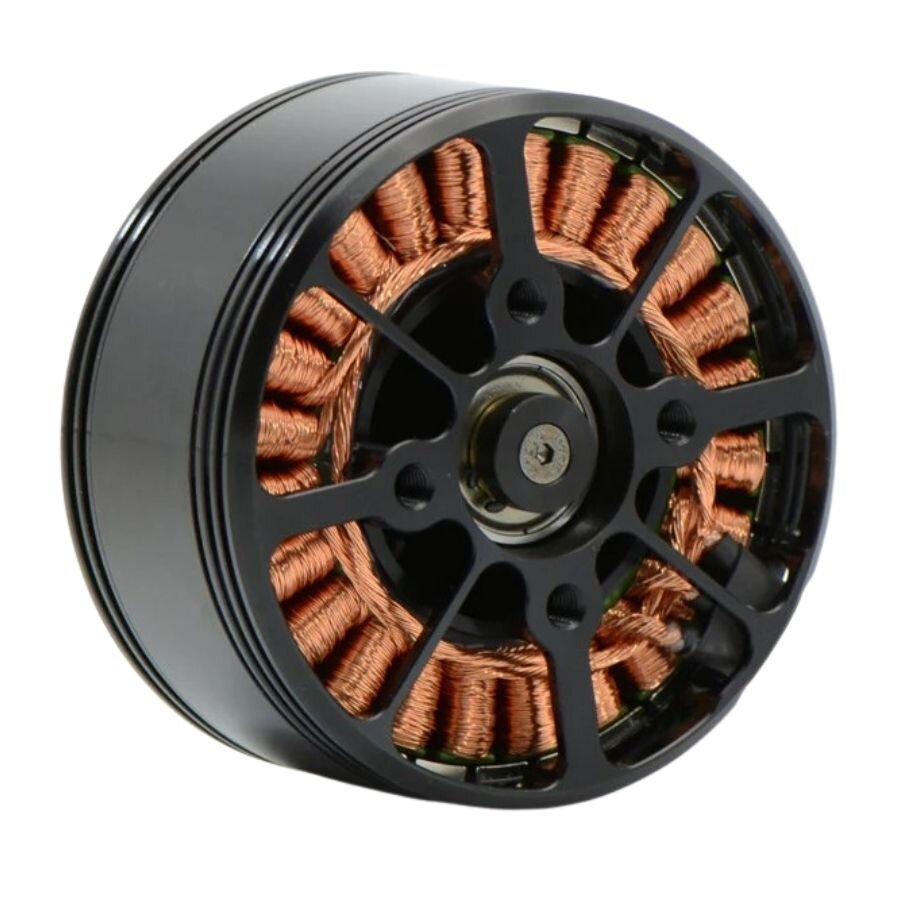

SunnySky XS X6215S 170KV High Power Brushless Motor

SunnySky XS X6215S 170KV High Power Brushless Motor

The Sunnysky X6215S series motor is perfect for heavy-duty UAV drones. Maximum thrust can reach 13600g.

Thanks to EZO bearings, X6215S motors are stable, quiet, and long-lasting.

You can find a suitable propeller here.

Specifications

Stator Diameter	62mm	Rotor Diameter	69.3mm
Stator Thickness	15mm	Shaft Diameter	4mm
Number of Stator Slots	24	Body Length (excluding shaft)	37.5mm
Rotor Pole Number	28	Body Length	43mm
Engine KV Value	170	Max. Number of LiPo Cells	12S
Idle Current	1.5A/10V	ESC	80A
Motor Resistance	70mΩ	Recommended Propeller (inches)	22*6.6
Max. Continuous Current	43A/30s	Recommended single takeoff weight	≤3500g
Max. Continuous Power	2175W
Weight	375g

Engine Power Table

Propeller (inch)	Voltage (V)	Current (A)	Impulse (gf)	Power (W)	Efficiency (g/W)	Under load temperature at 100% gas
22*6.6	44.4	2.1	1000	93	10.73	73℃
		4.9	2000	218	9.19
		8.5	3000	377	7.95
		12.8	4000	568	7.04
		17.4	5000	773	6.47
		22.7	6000	1008	5.95
		28.1	7000	1248	5.61
		35.2	8130	1563	5.20
	50	1.8	1000	90	11.11	8 min 115℃
		4.5	2000	225	8.89
		7.7	3000	385	7.79
		11.7	4000	585	6.84
		15.9	5000	795	6.29
		20.5	6000	1025	5.85
		25.6	7000	1280	5.47
		31	8000	1550	5.16
		37.1	9000	1855	4.85
		43.5	10050	2175	4.62

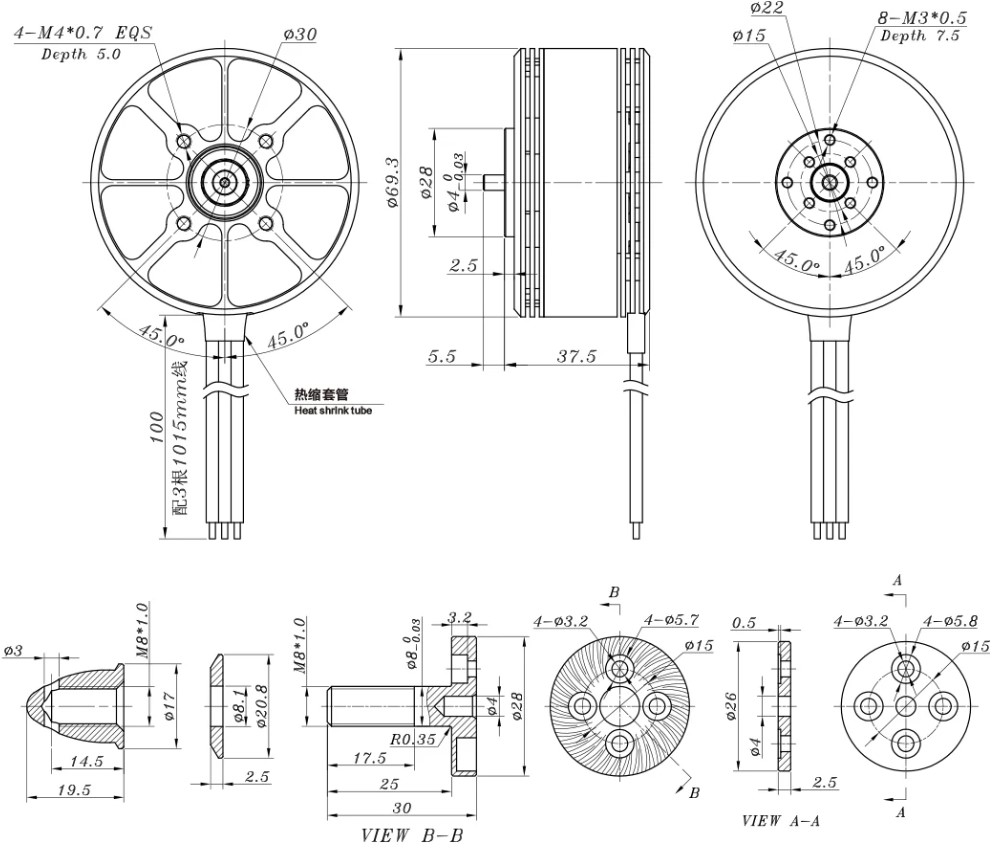

Size
