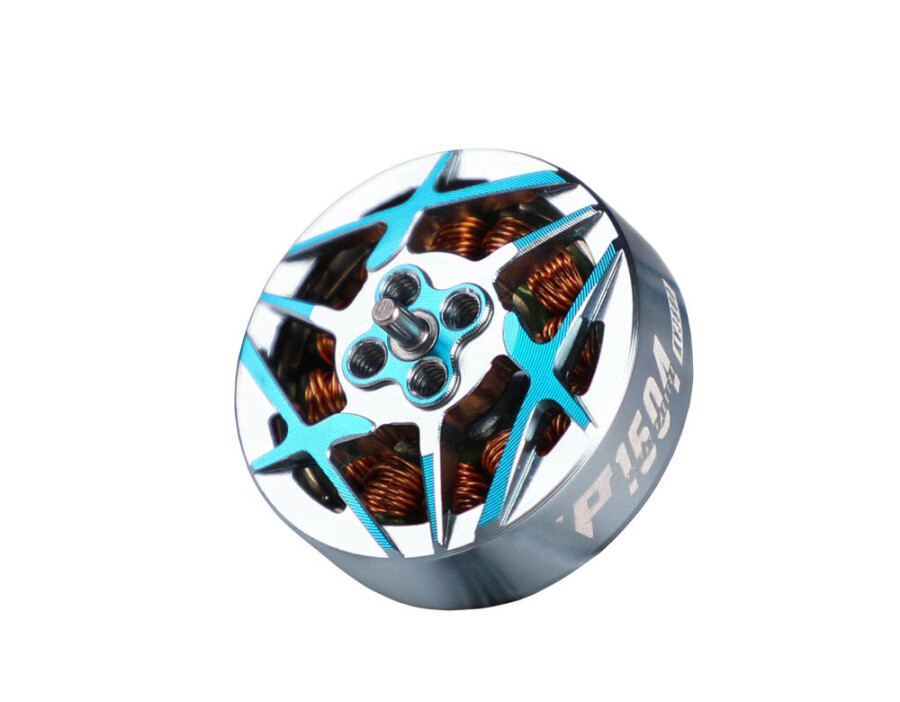

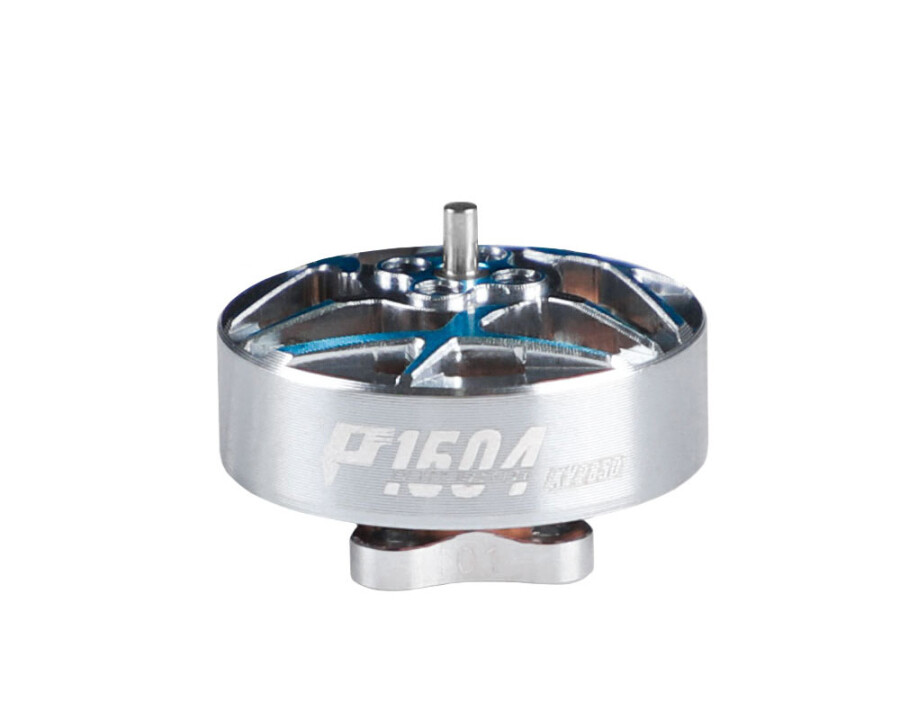

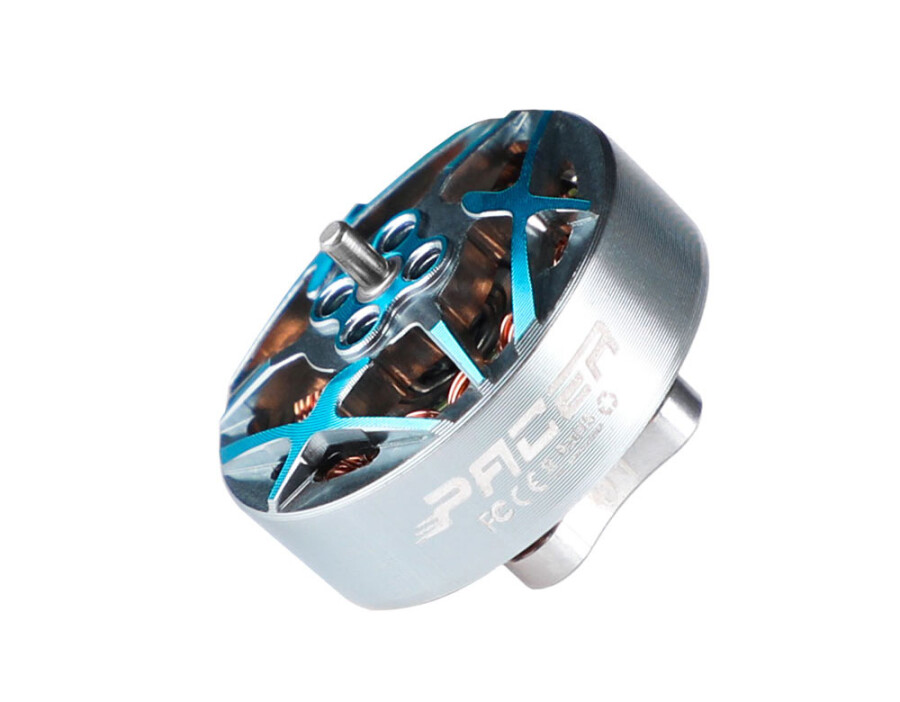

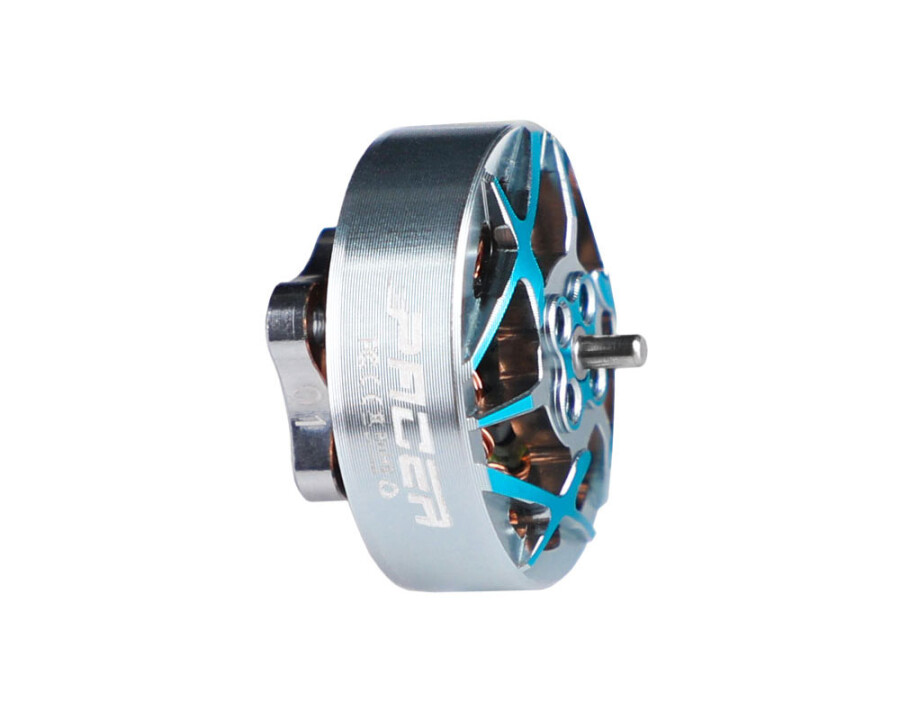

T-Motor P1604 2850KV 3.5'' FPV Drone Motor

T-Motor P1604 2850KV 3.5'' FPV Drone Motor. 1.5mm shaft and 9x9 mounting holes make this motor suitable for a wide range of propellers and airframes. The P1604 Motor is extremely lightweight, weighing only 11.6g. Suitable for 3.5-inch freestyle drones weighing under 250g!


Features

KV KV2850 Configuration 12N14P
Shaft Diameter 2mm Lead 24#120mm
Weight (Incl. Cable) 11.6g Voltage 25.2V
Idle Current(10V) 0.4A Max. Power(10s) 394.6W
Peak Current(10s) 15.8A

Test Data

Propeller Type Throttle Voltage
(V)
Current
(A)
RPM Thrust
(g)
Power
(W)
Efficiency
(g/W)
GF
3520-3
2850KV 20% 25.2 1.4 19580.2 104.1 35.4 2.94
40% 25.1 4.2 28436.5 235.7 105.8 2.23
60% 25.1 7.2 34220.1 349.7 179.9 1.94
80% 25.0 10.4 38863.2 461.7 259.5 1.78
100% 24.9 15.8 44031.6 618.8 394.6 1.57
3800KV 20% 16.8 1.5 17311.1 91.2 25.9 3.52
40% 16.7 4.6 25611.5 202.2 76.6 2.64
60% 16.7 7.7 30692.7 292.4 127.6 2.29
80% 16.6 11.0 35219.6 380.5 182.5 2.08
100% 16.5 16.8 40750.1 514.1 277.8 1.85


p1604-dimension


Weight(Kg)
0.1
