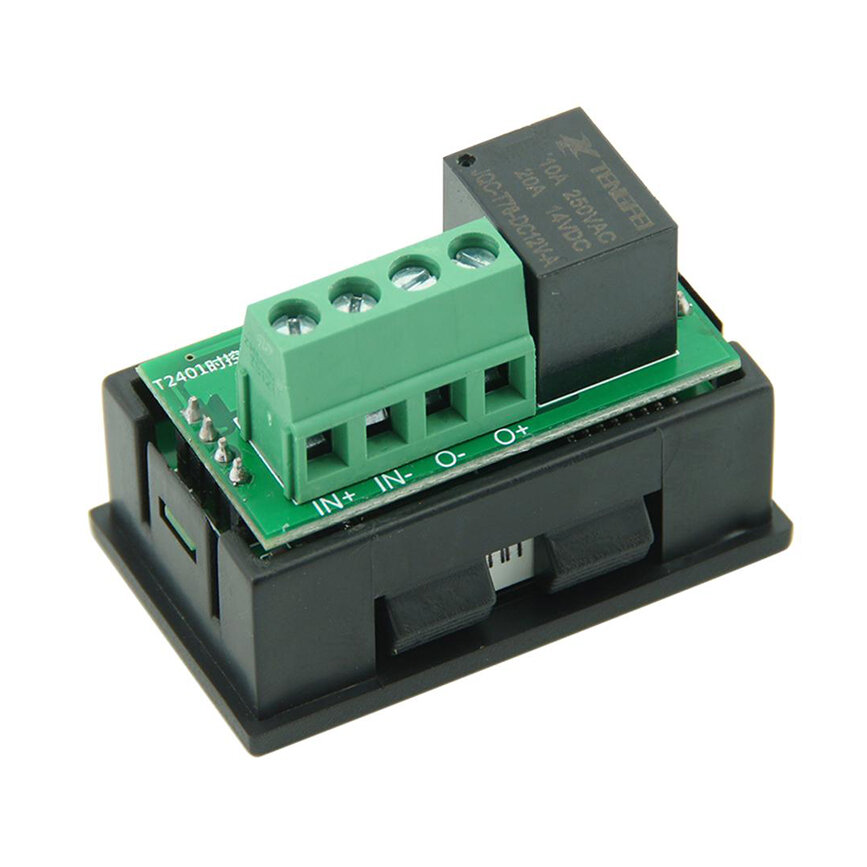

T2401-O 12V Timer Relay Module

T2401-O 12V Timer Relay Module

The T2401-O 12V Timer Relay Module can be used with products such as lamps, motors, fans, etc. that operate on 12V. You can set the time from 1 second to 999 hours. It offers the possibility to control products with a maximum power of 240W with time setting.

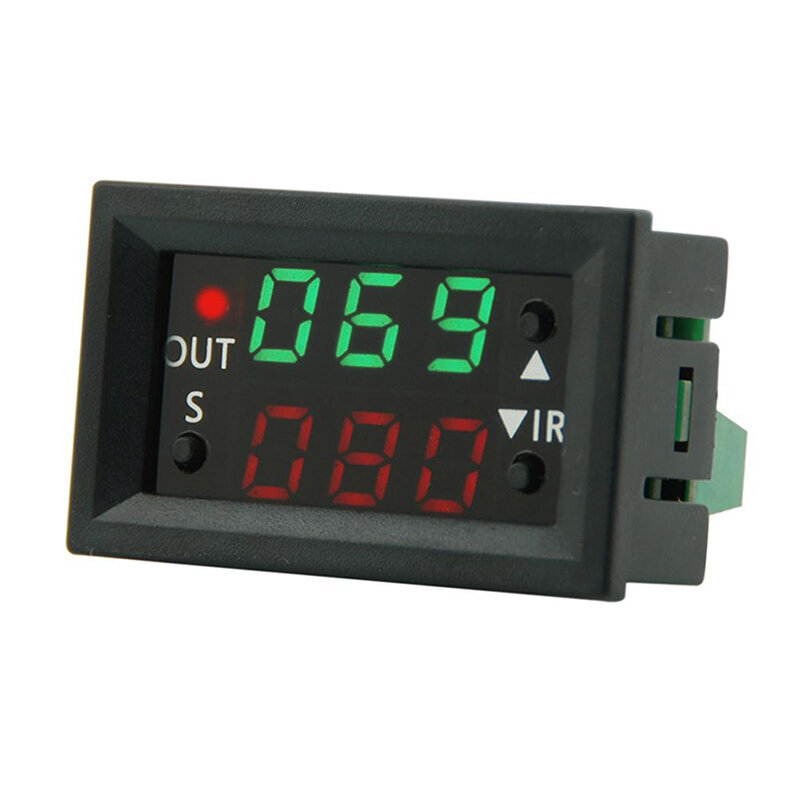

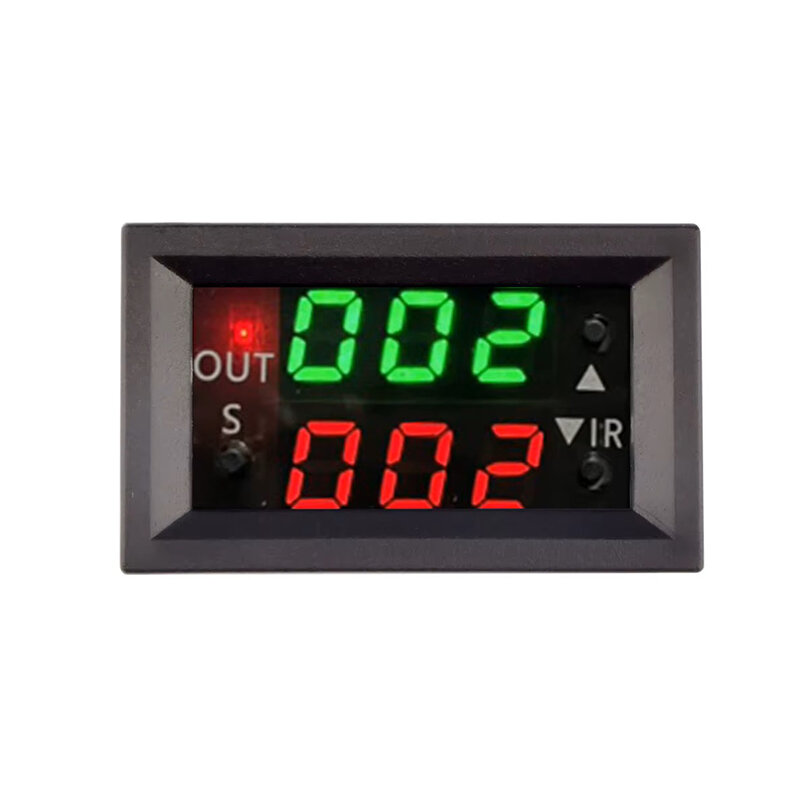

The green number on the module indicates the time the relay will remain open (power is flowing), and the red number indicates the time the relay will be closed (power is not flowing).

If you press and hold the S button on the module, it will switch to mode setting.

You can change the mode setting with the up and down arrow keys; pressing the set button again will switch to the next mode. Double-clicking the S key will take you to the time setting. The green timer sets the time the relay stays on, and the red timer sets the time the relay stays off.

Specifications

• Model: T2401-O
• Operating Voltage: 12V DC
• Rated Current: 20A
• Rated Power: 240W
• Time Range: 1 ~ 999 (seconds, minutes, hours)
• Operating Temperature: -10 ~ 60°C
• Operating Humidity: 35% ~ 85%
• Mounting Size: 45.5x26.1mm
• Dimensions: 48x29x34mm

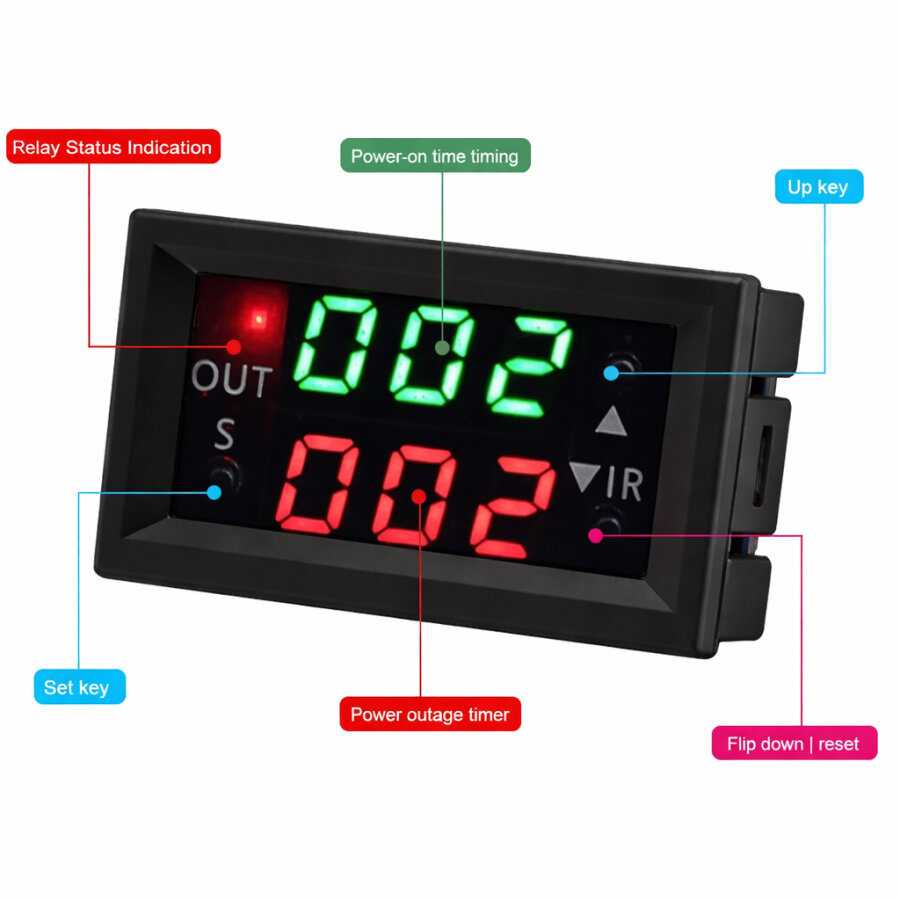

Interface

Modes
