TDA7294 Integrated Multiwatt-15

TDA7294 is a monolithic integrated circuit in Multiwatt15 package intended for use as an audio class AB amplifier in Hi-Fi field applications (Home Stereo, self-powered speakers, High-end TV). Thanks to its wide voltage range and high output current capability, it can deliver peak power to both 4W and 8W loads even in the presence of poor supply regulation with high Supply Voltage Rejection. Built-in mute function with on-delay simplifies remote operation by eliminating on-off sounds.

Usage Areas

HI-FI

Car Radio

Bridge Application Circuit

An audio class AB amplifier

Stereo system

Subwoofer

Series	TDA7294
Input Voltage	10V- 40V
Output Power	100W
Sound - Load Impedance	8 Ohm
Type< /span>	1 Channel Mono

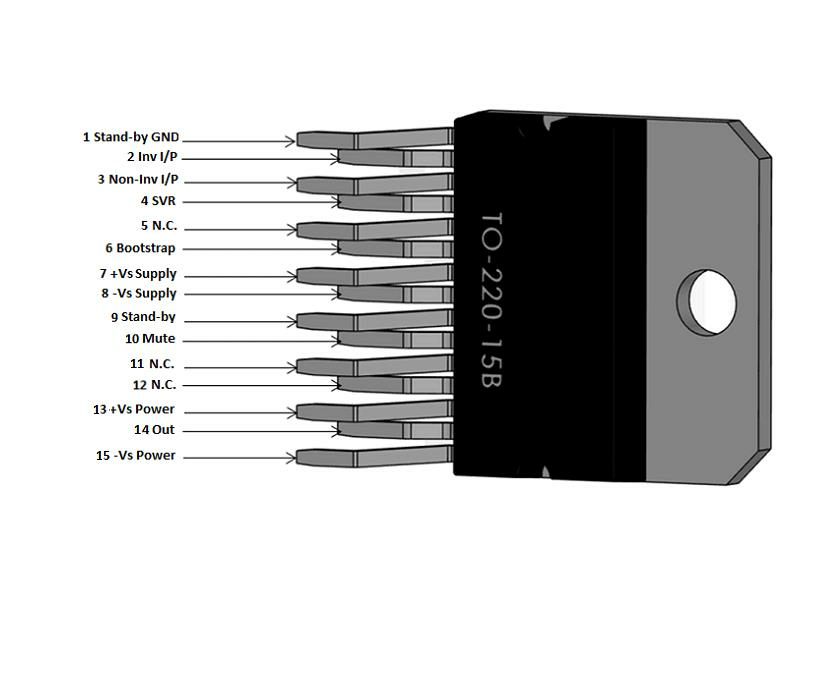

Package Type	Multiwatt-15

TDA7294 Datasheet
