Name: Tower Pro SG90 RC Mini Servo Motor - 360 Degrees
Brand: Tower Pro
SKU: MTR.SRV.01.000006
Price: 129.00 TRY
Availability: InStock

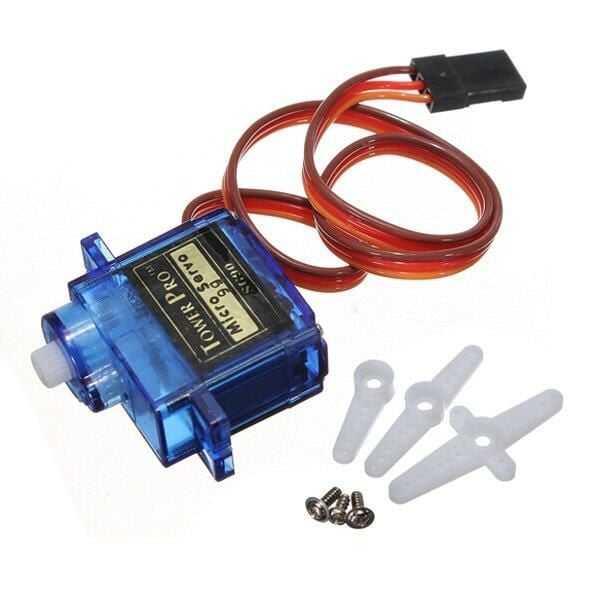

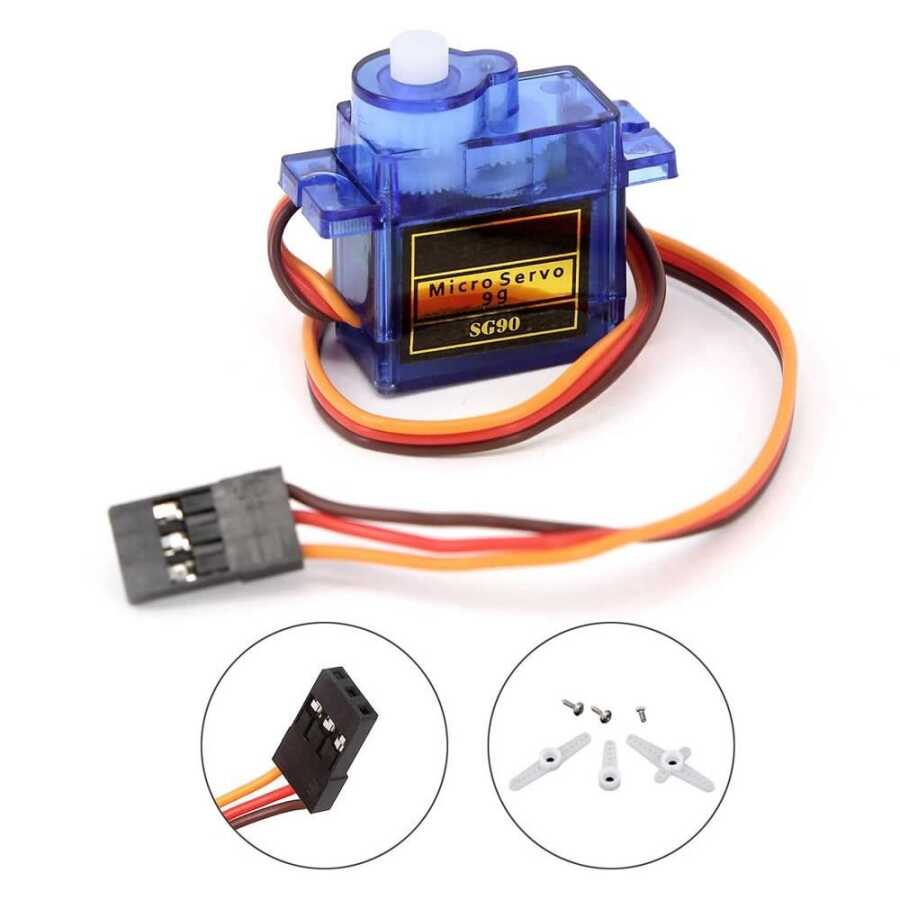

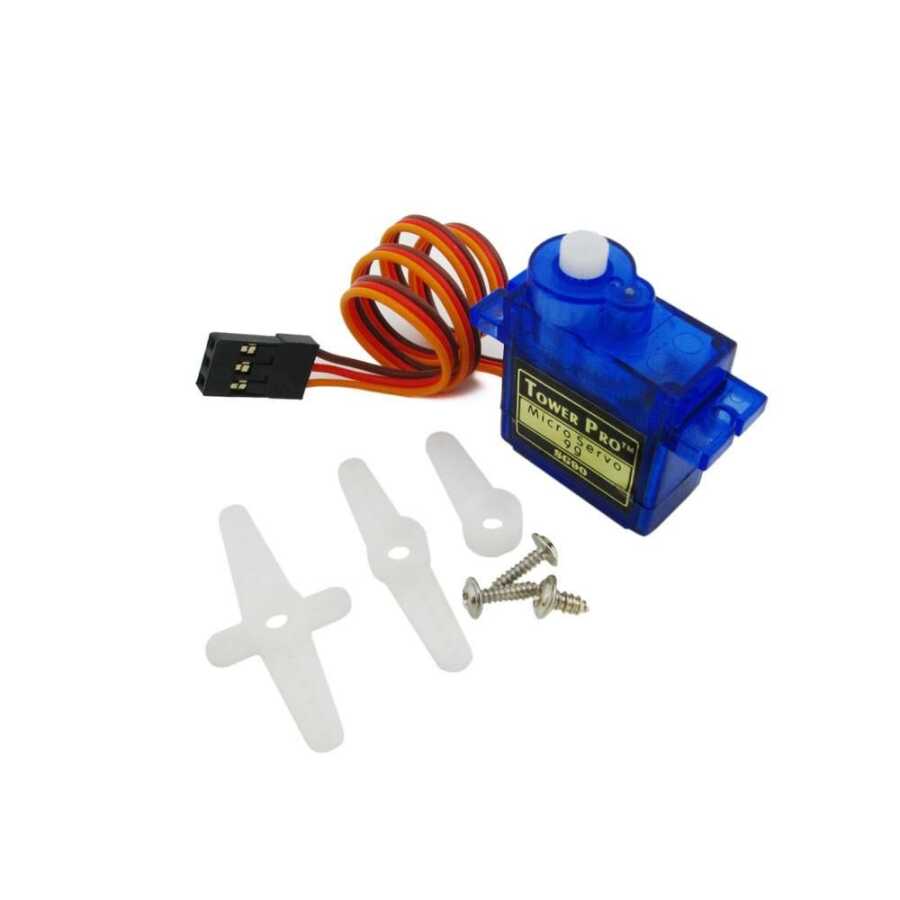

Tower Pro SG90 RC Mini Servo Motor - 360 Degree

Tower Pro SG90 Continuous Rotation 360 Degree Servo Motor is a great value, multi-purpose micro servo and BBC micro:bit is ideal for use with microcontroller systems such as Arduino, Raspberry Pi and PICAXE. Its miniature size also makes it perfect for use in radio-controlled models.

This 360-degree continuous rotation servo is very different in operation from a standard servo. Instead of going to a specified angle, this servo will static on a 1.5ms pulse, a longer pulse providing forward rotation and a shorter pulse providing reverse rotation.

To suit most applications Comes with mounting screws and various accessories. You can use any servo code, hardware or library to control these servos.

This motor is a continuous servo model and rotates continuously, it does not stop at certain angle values. For angular positioning, choose models with 180 degrees.

Technical Specifications

Dimension: 23 × 12 .2 x 29 (LxWxH) mm.
Stall moment: 1.2kg / cm (4.8v)
Operating voltage: 4.8V
Gear Material: Plastic
Weight: 9 gm
Operating Speed: 0.12 sec / 60 degrees (4.8 V) -0.1 sec / 60 degrees (6.0 V)
Bandwidth: 5 usec
Temperature Range: -30-60

Connection Cables

Brown: GND
Red: VCC (4.8V)
Orange: Signal (PWM)

Package Content:

1 x SG90 360 degree Servo Motor< /DIV>

1 x Servo Accessory Set
