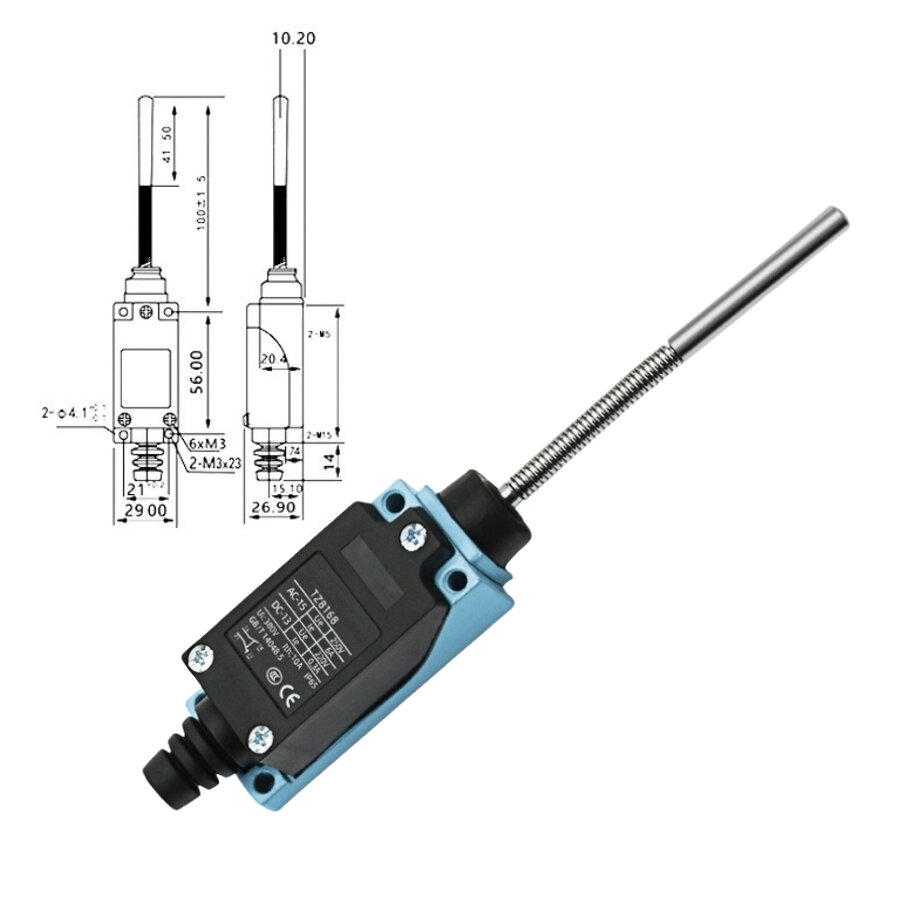

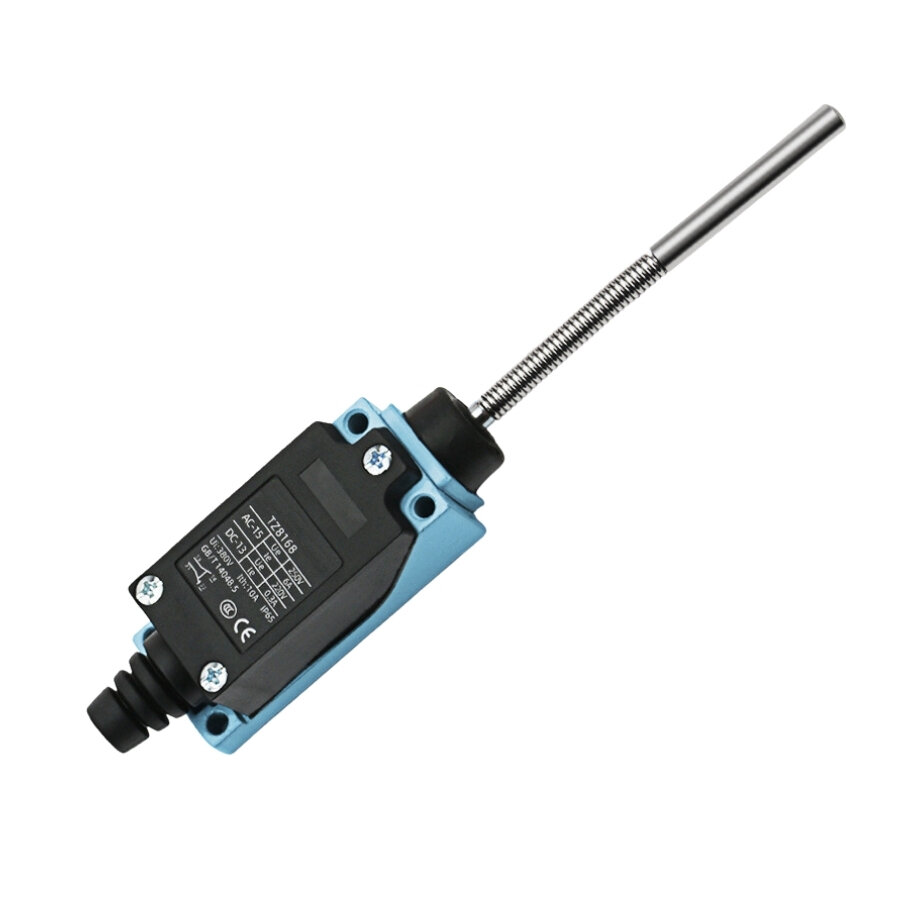

TZ-8168 Metal Body Limit Switch

TZ-8168 Metal Body Limit Switch

The TZ-8168 Metal Body Limit Switch offers high-performance solutions for position sensing, machine motion termination, and safety applications in industrial automation systems. It provides reliability even in harsh conditions with its high IP protection class.

Areas of Use

• Automation Systems
• CNC Machines
• Production Lines
• Conveyor Systems
• Industrial Robots
• Automatic Doors
• General Control Circuits

Features

• Operating Speed: 5mm - 0.5mm/s
• Contact Resistance: 25mOhm
• Insulation Resistance: 100mOhm (@500VDC)
• Dielectric Strength: 1000VAC 50/60 Hz 1 min
• Vibration: 10-55Hz, 1.5mm double amplitude
• Operating Temperature Range: -10 to 65°C
• Electrical Life: 500,000
• Protection Degree: IP65
• Material: Zinc, Plastic
• Silver Pin
