USB Type-C Female 24-Pin Test Board

USB Type-C Female 24-Pin Test Board

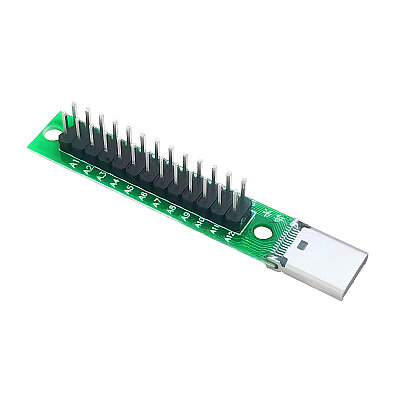

The USB Type-C Female 24-Pin Test Board is a passive connection board that facilitates electronic development, prototyping, measurement, and signal testing by providing individual access to the pins of a USB Type-C connector.

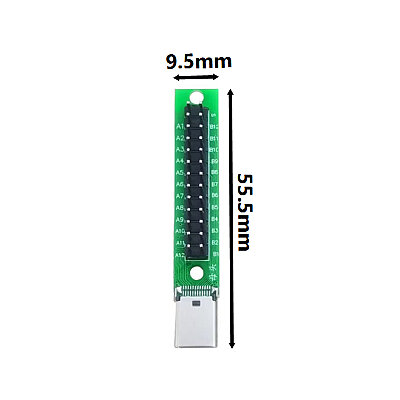

Thanks to its 24-pin breakout design, signals defined in the USB Type-C standard—such as VBUS, GND, D+, D-, CC1, CC2, SBU, and high-speed differential data lines—are routed to accessible pins on the PCB. This configuration simplifies signal measurement using multimeters, oscilloscopes, logic analyzers, and various other test instruments.

This module is a passive breakout board. It does not convert USB protocols, perform voltage regulation, or independently handle USB Power Delivery communication; its sole function is to provide external access to the lines of the Type-C connector.
