WCS1700 70A Hall-Effect Linear Current Sensor Module

WCS1700 70A Hall-Effect Linear Current Sensor Module

The WCS1700 70A Hall-Effect Linear Current Sensor Module is a Hall-effect-based current measurement board designed to monitor high-current AC and DC lines and detect instances where a preset current level is exceeded.

The module features the WCS1500 Hall-effect current sensor, along with a comparator circuit and an adjustment potentiometer. This allows not only for analog current measurement but also for generating a digital warning signal if the specified current threshold is surpassed.

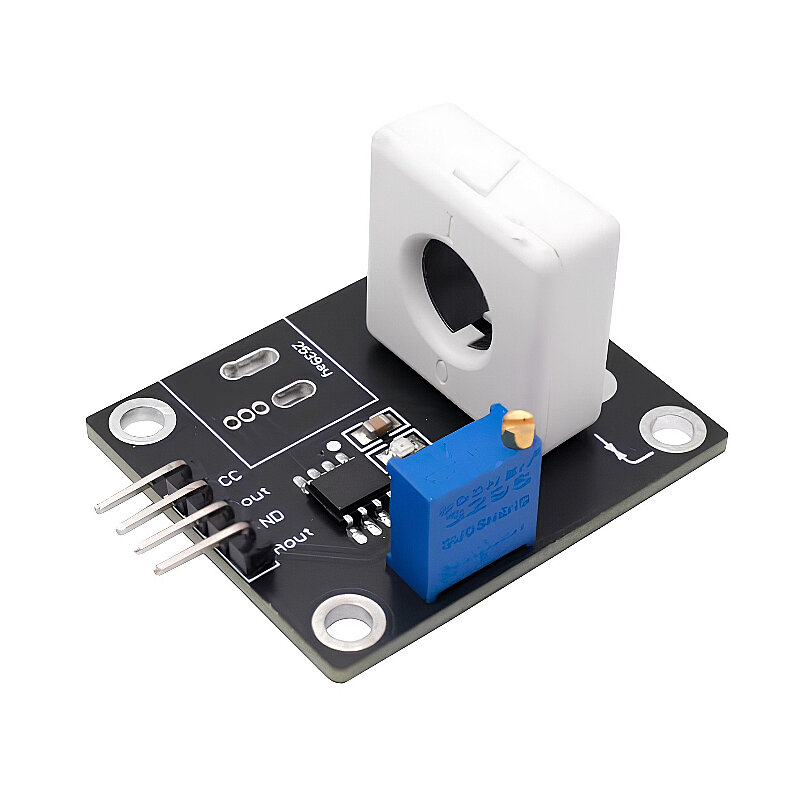

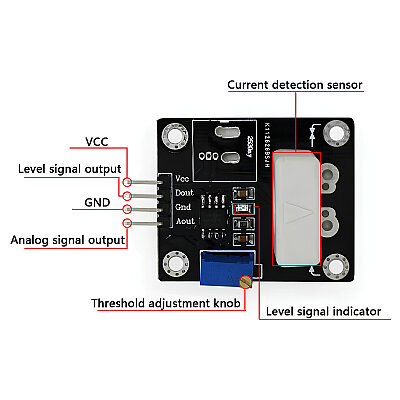

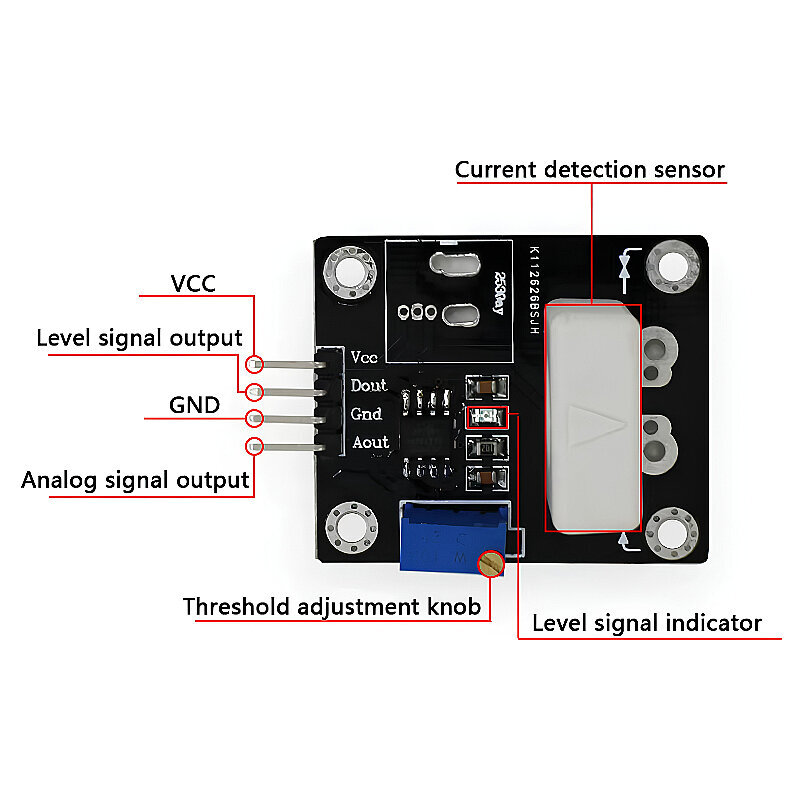

The board's analog output produces a voltage proportional to the measured current, which can be read via a microcontroller's ADC input. Meanwhile, the digital output generates a signal when the current exceeds the threshold set by the onboard trimmer potentiometer.

This feature facilitates the implementation of motor stall detection, over-current warning, and short-circuit detection systems.

Specifications

• Sensor: WCS1700
• Comparator: LM393-class comparator circuit
• Operating Voltage: 5V DC
• DC Current Detection Range: Up to ±70A
• AC Current Detection Range: Up to 50A RMS
• Sensor Sensitivity: Approx. 12mV/A @ 5V

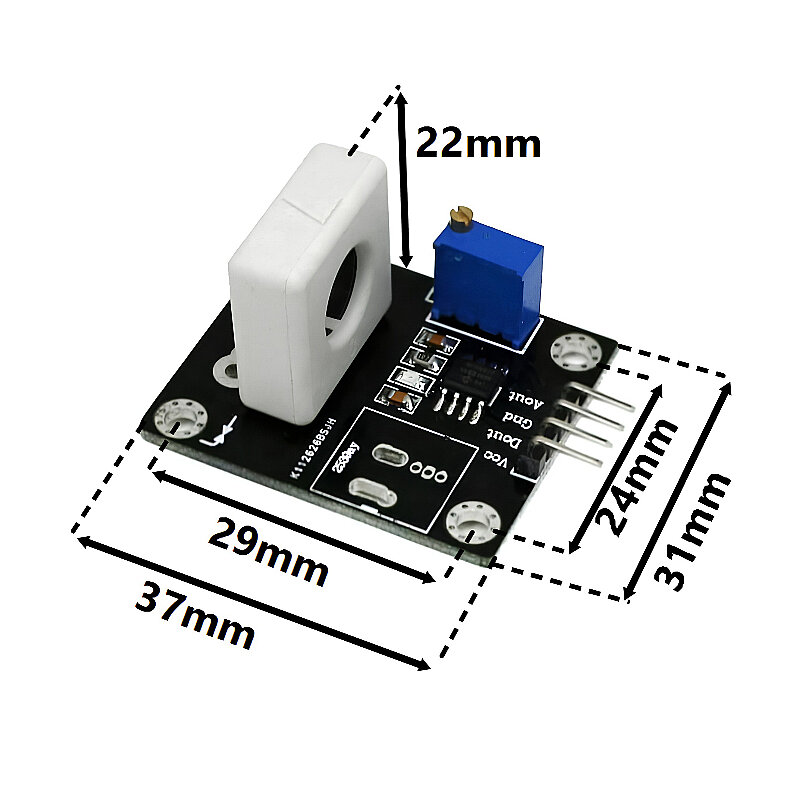

• Conductor Pass-through Hole: 9mm
• Analog Output: Yes
• Digital Over-current Output: Yes
• Over-current Threshold: Adjustable
• Threshold Adjustment: Via onboard trimpot
