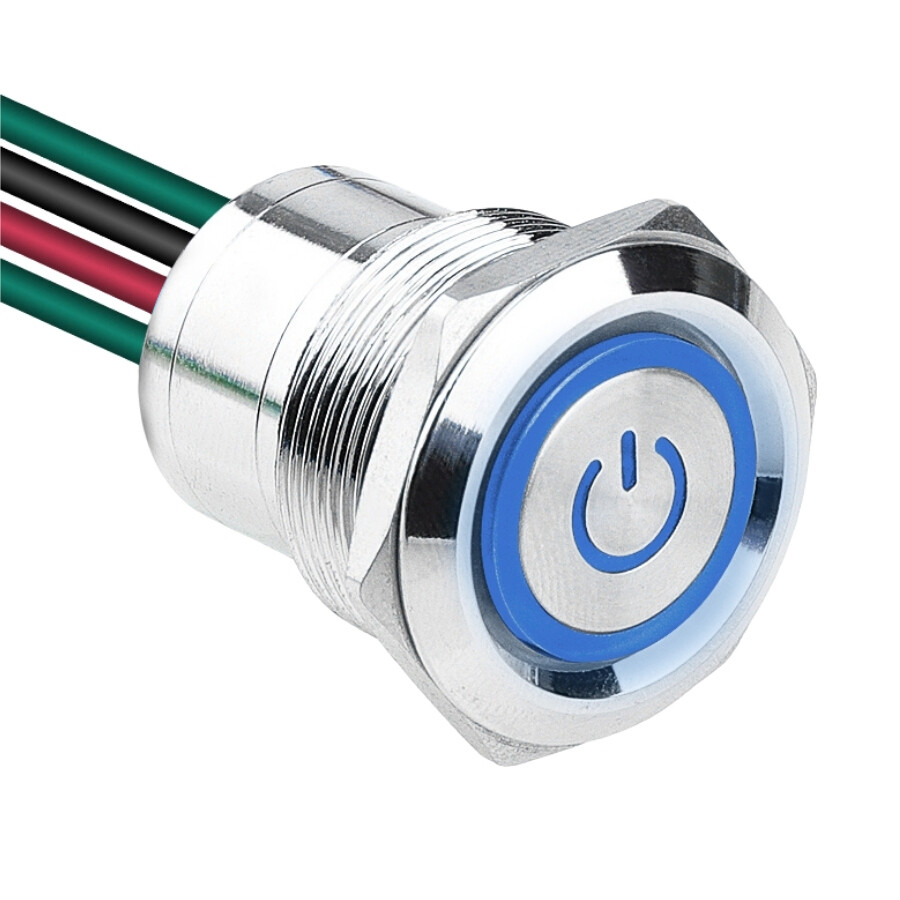

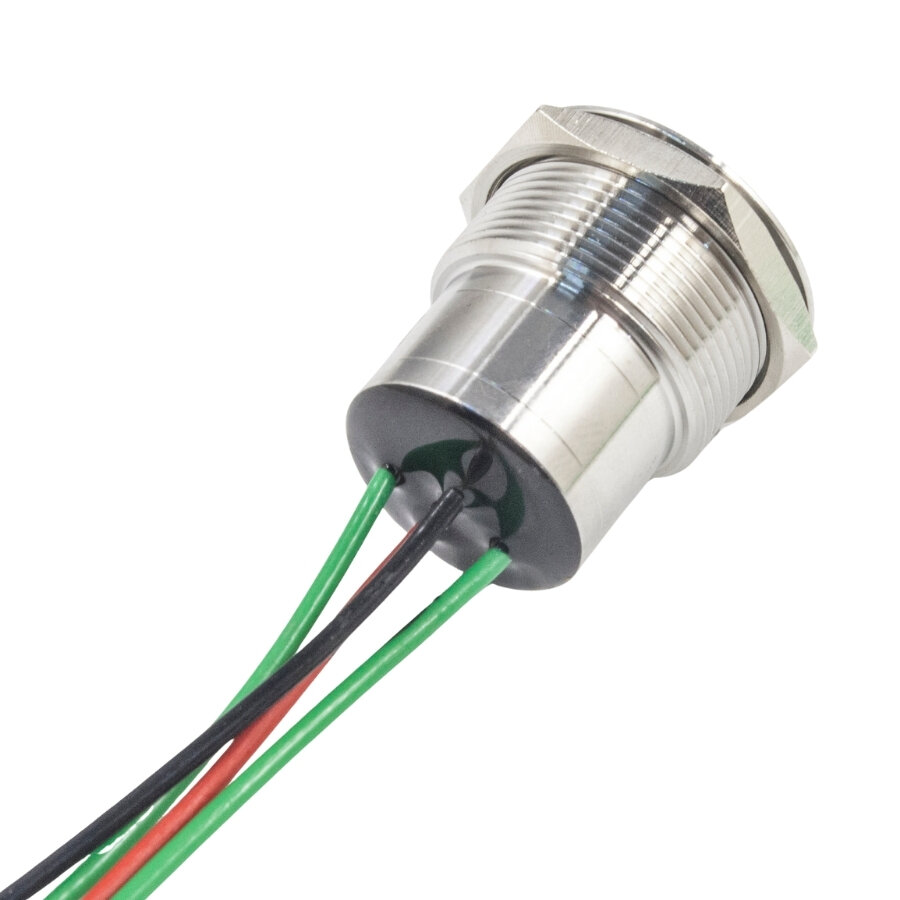

WD22D1-P2-EC 22mm Flat Spring Illuminated Metal Button with Power Cable - Blue

This 22mm metal button is an IP66 waterproof product that can be used in various industrial applications, electronics projects, and mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.

Because it is made of stainless steel and has an IP66 protection rating, metal buttons are suitable for both indoor and outdoor use. This feature makes them preferred in applications where longevity is desired. Furthermore, the button press structure has a much longer lifespan than plastic buttons. The spring-loaded model has a lifespan of 500,000 presses, while the key-loaded model has a lifespan of 250,000 presses.

22mm Metal Button Types

22mm Metal Button Types are divided into two types: spring-loaded and key-loaded, depending on their intended use. Spring-loaded buttons allow voltage to pass as long as they are held down. Switched models, on the other hand, turn on the power when pressed for the first time and turn it off when pressed again.

The following factors should be considered when choosing a product:

Head Type: Protruding or Flat
Light: Illuminated or Non-Illuminated
Light Type: Power Symbol or Not
Product Type: Keyed or Spring-loaded

The following factors should be considered when choosing a product: These details are clearly stated in the product image and name. Please pay attention to the name and image before purchasing.

Technical Specifications:

Operating Mode: Spring-loaded
Mounting Diameter: 22mm
Material: Stainless Steel
Protection Level: IP66
Switching Voltage: 1.5 ~ 250V AC/DC
LED Voltage: 12-24V
Current: 20A
Switch Contacts: 1NO
Electrical Life: >50,000
Print Life: 500,000 (spring-loaded model), 250,000 (with switch) (model)
Wiring: 20AWG
Operating Temperature: -30 °C ~ 85 °C

For more detailed information, please click the link below to access the product's detailed technical documentation.

Production with your own custom symbols and logos is available. For special productions, you can send an e-mail to info@motorobit.com.
