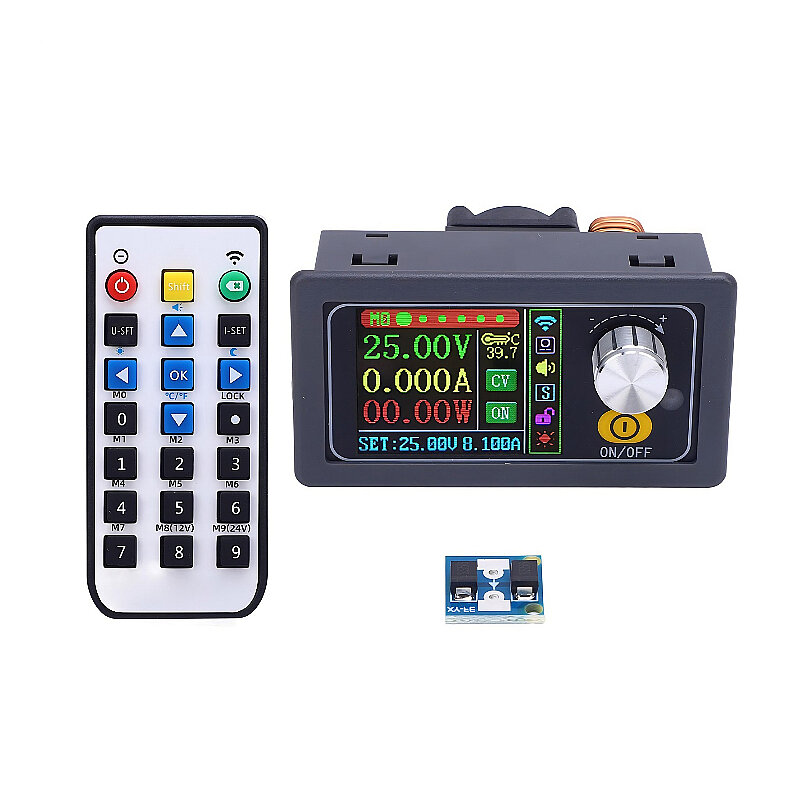

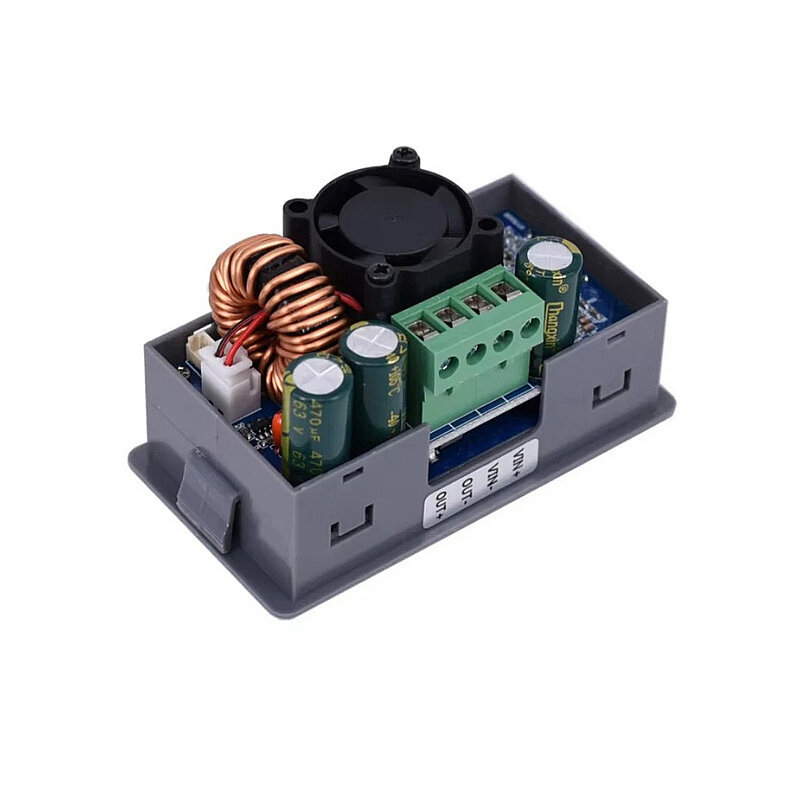

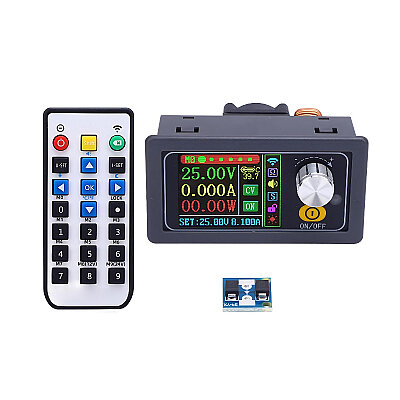

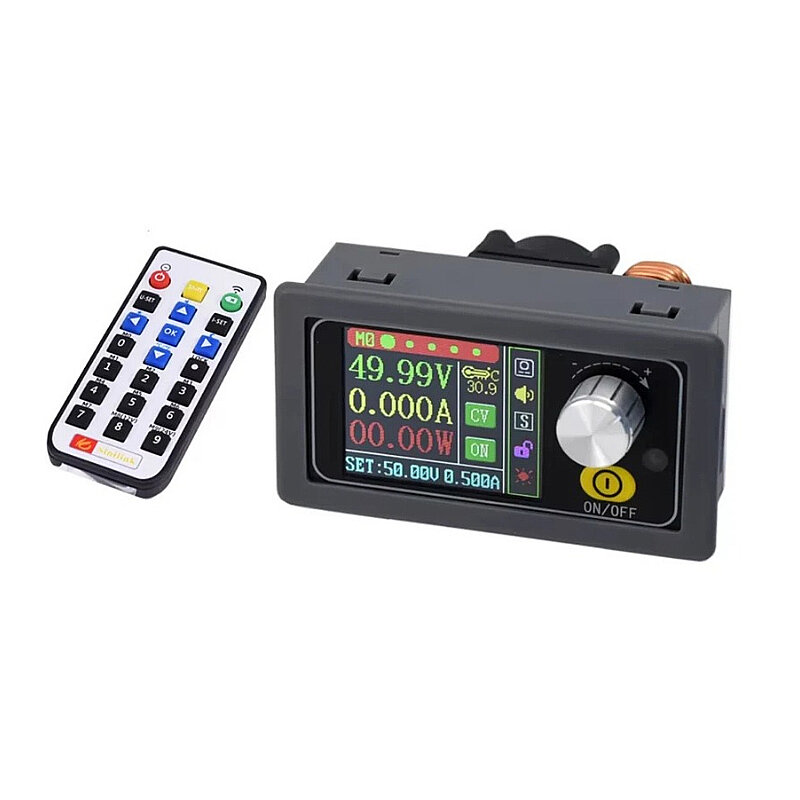

XY5008 400W 8A Adjustable DC Power Supply Module with Controller
The XY5008 400W 8A Adjustable DC Power Supply Module with Controller is an advanced DC-DC step-down power supply module featuring a color display and capable of high-precision voltage and current adjustment. Operating with an input voltage of 6-55V DC, it allows for output voltage adjustment within the 0-50V range and output current adjustment within the 0-8A range. With a maximum output power of 400W, it offers a comprehensive control solution for electronic testing, development, and adjustable DC power supply applications.
Features
- Input Voltage: DC 6.0-55V
- Adjustable Output Voltage: 0-50V DC
- Adjustable Output Current: 0-8A
- Maximum Output Power: 400W
- Operating Modes: CC / CV
- CV Mode: Constant Voltage
- CC Mode: Constant Current
- Voltage Adjustment Resolution: 0.01V
- Current Adjustment Resolution: 0.001A
- Voltage Accuracy: ±0.4% + 1 digit
- Current Accuracy: ±0.5% + 3 digits
- Display: 1.8-inch color LCD
- Control Element: Pushable rotary encoder
- Output Control: Via ON/OFF button
- Display Rotation: 4 different display orientations / 360° rotation
- Display Theme Support: Adjustable foreground and background color combinations
- Capacity Measurement: 0-999999Ah
- Energy Measurement: 0-999999Wh
- Runtime Tracking: Yes
- Voltage/Current Graph Display: Yes
- Parameter Memory: Yes
- Data Group Memory: M0-M9
