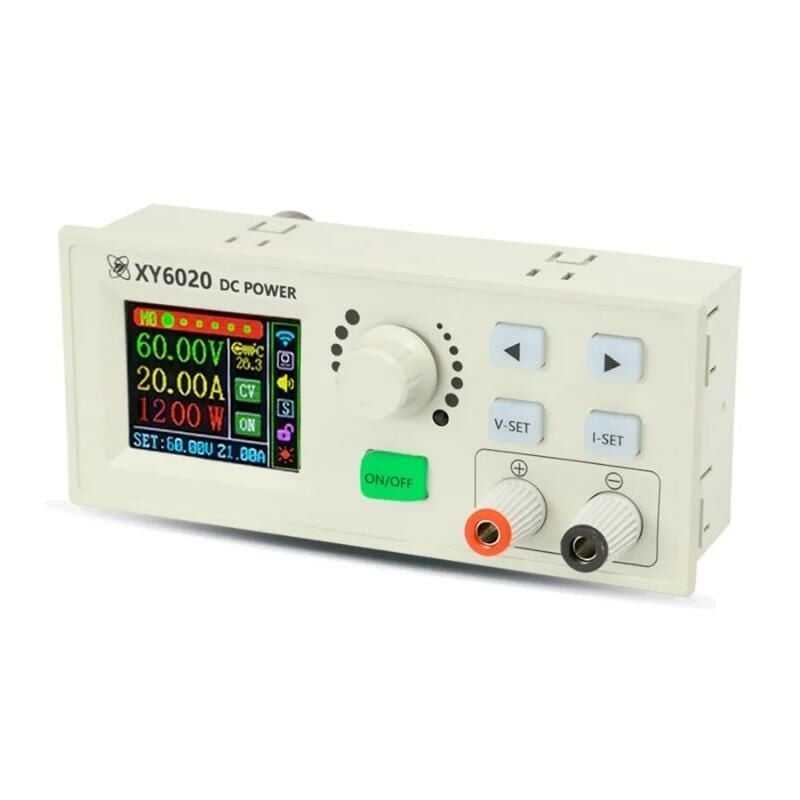

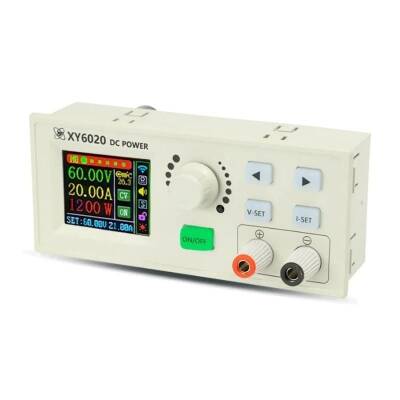

XY6020-W 60V 20A Adjustable Power Supply - Remote + Wifi

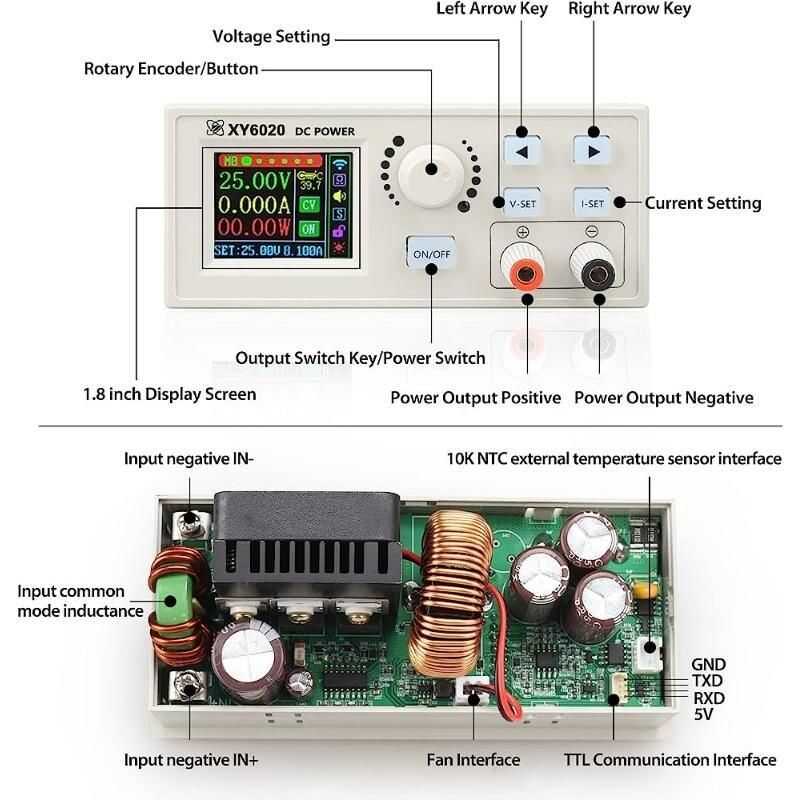

XY6020-W can be adjusted to provide DC voltage between 0-60V and current output between 0-20A It is a power source. It has a 1.8 inch screen where you can observe voltage, current and energy values. Since voltage and current settings can be adjusted with a resolution of 0.01, it is a suitable product for obtaining precise outputs. It can measure temperature thanks to the NTC that comes with the product. In addition, remote control is possible thanks to the wifi module and remote control included in the box.

The product is not AC. It must be supplied with DC voltage.

Specifications:

Input voltage range: 6-70V ±1％
Output voltage range: 0-60V ±0.4％
Output current range: 0-20A ±0.5％
Output power range: 0-1200W
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.01V
Typical value of output ripple: 100mV VPP
Operating temperature: -10 to 40 ℃
Capacity measuring range: 0-99999Ah ±2％
Power measuring range: 0-99999Wh ±2％
Working time measurement range: 0-1000h
Display size: 1.8in
Remote control battery: 1 * CR2025, 3V, 150mAH

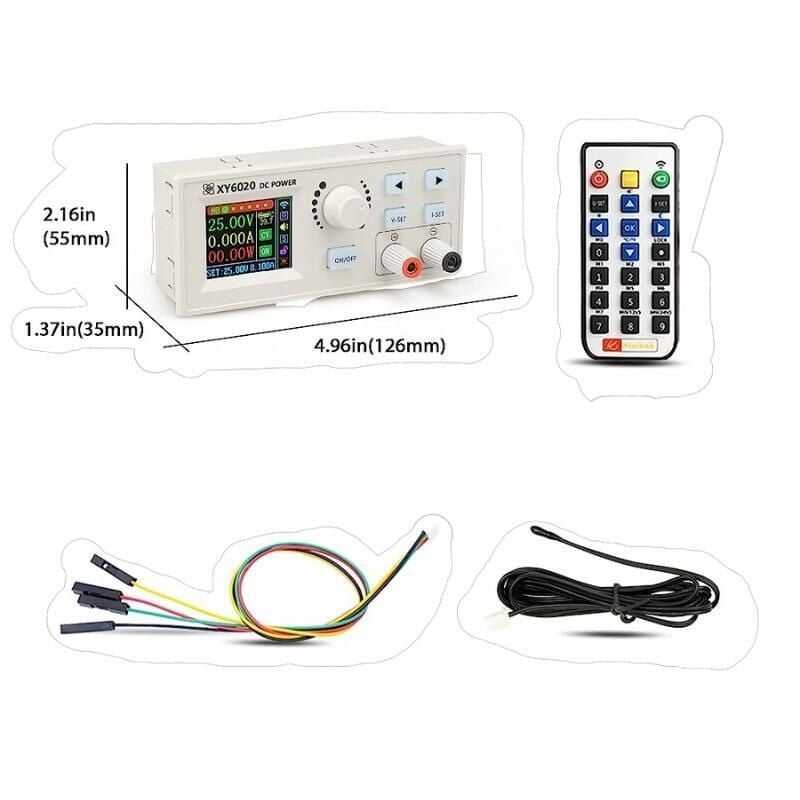

Item size: 125*55*35mm/4.9*2.2*1.4in
Item weight: 256g / 9.0ounce
Package size: 150*100*90mm/5.9*3.9* 3.5in
Package weight: 341g / 12.0oz

Phone App
