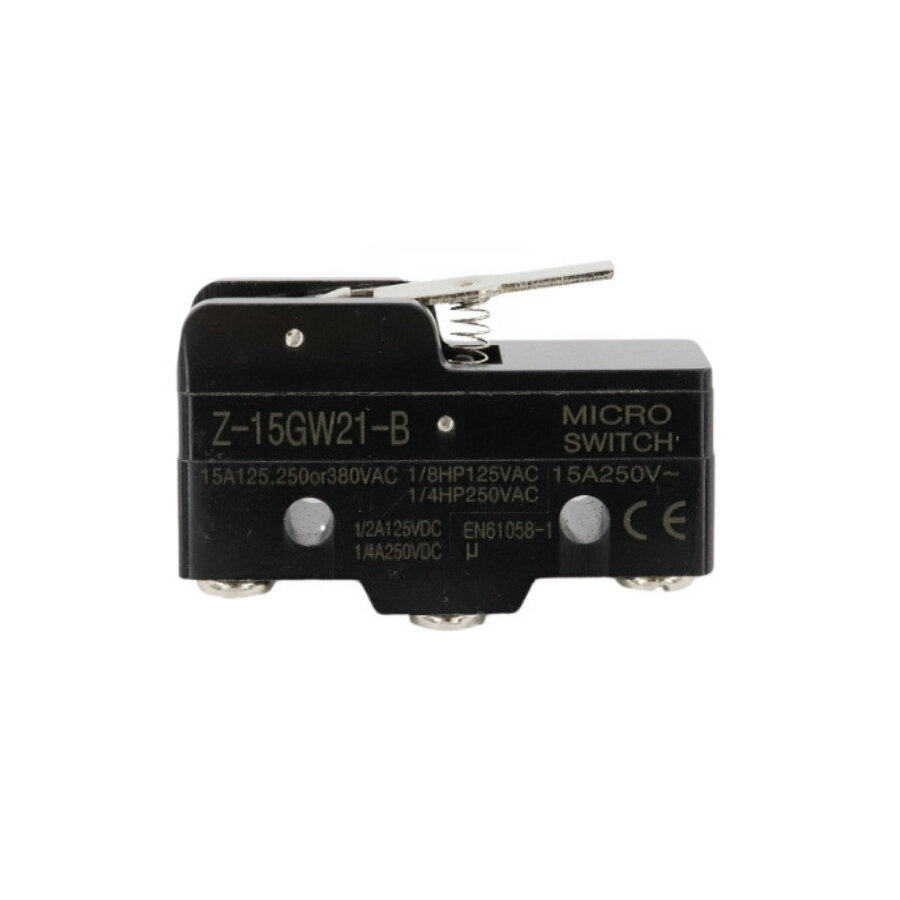

Z-15GW21-B Micro Switch 3-Pin

Z-15GW21-B Micro Switch 3-Pin

The Z-15GW21-B Micro Switch 3-Pin is a large micro switch designed for reliable and precise switching. With its high switching capacity of 15 A at 250 VAC, it is the ideal choice for high-current applications.

Areas of Use

• CNC machines
• Production Lines
• Conveyor Systems
• Robot Arms
• Door system stop mechanisms
• Limit point detection for safety stops in automatic systems



Features

• Contact Resistance: 15 mOhm
• Insulation Resistance: 100 mOhm (@500VDC)
• Dielectric Strength: 1000VAC, 50/60 Hz 1 min
• Motion Frequency;
  • Mechanical: 240 cycles/minute
  • Electrical: 20 cycles/minute
• Operating Temperature Range: -25 ~ 80°C
• Electrical Life: 500,000 cycles

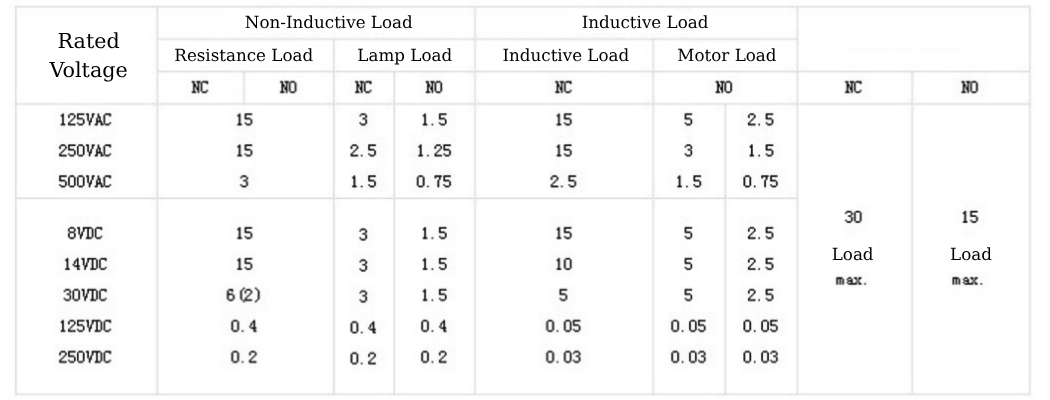

Current Table

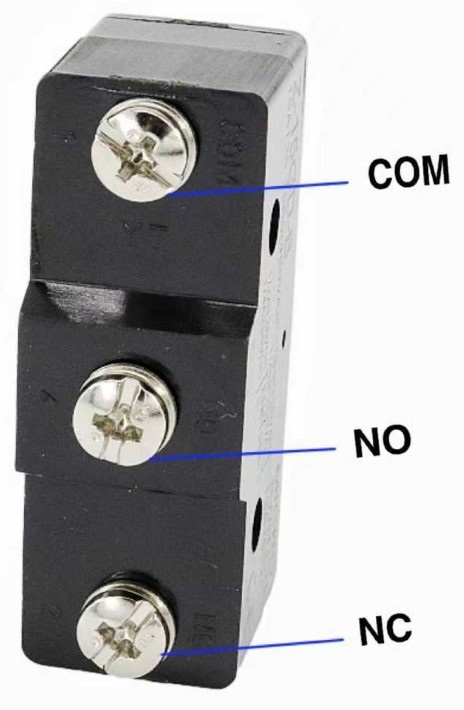

Pinout
