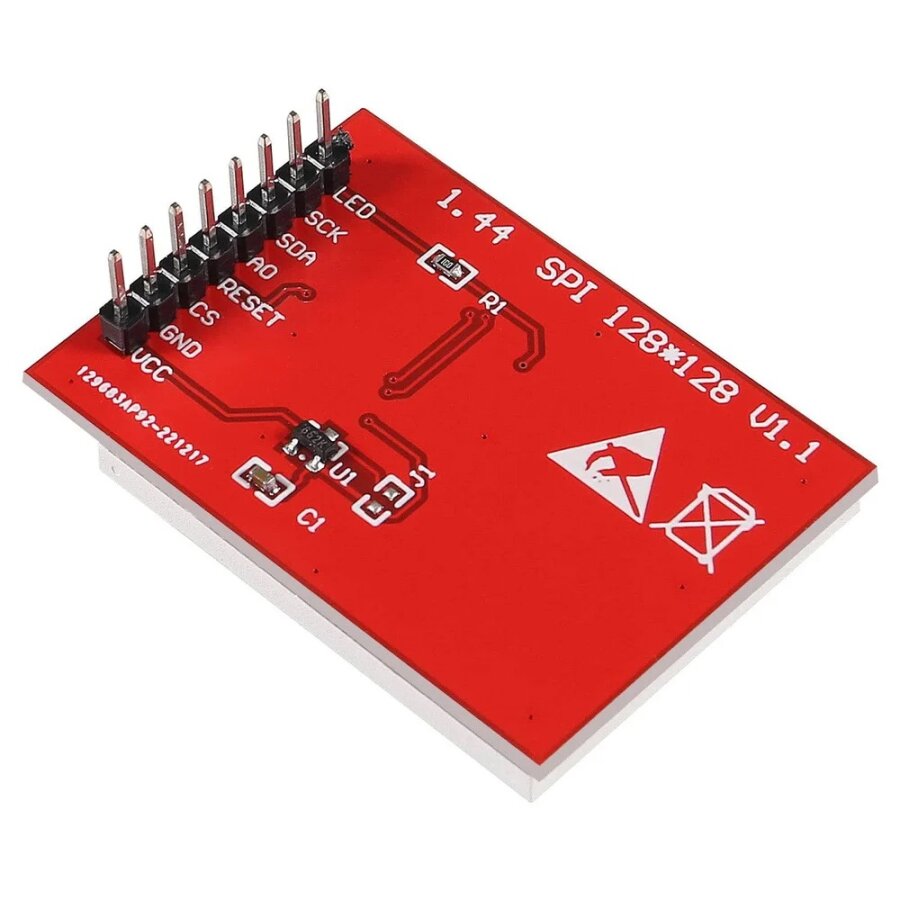

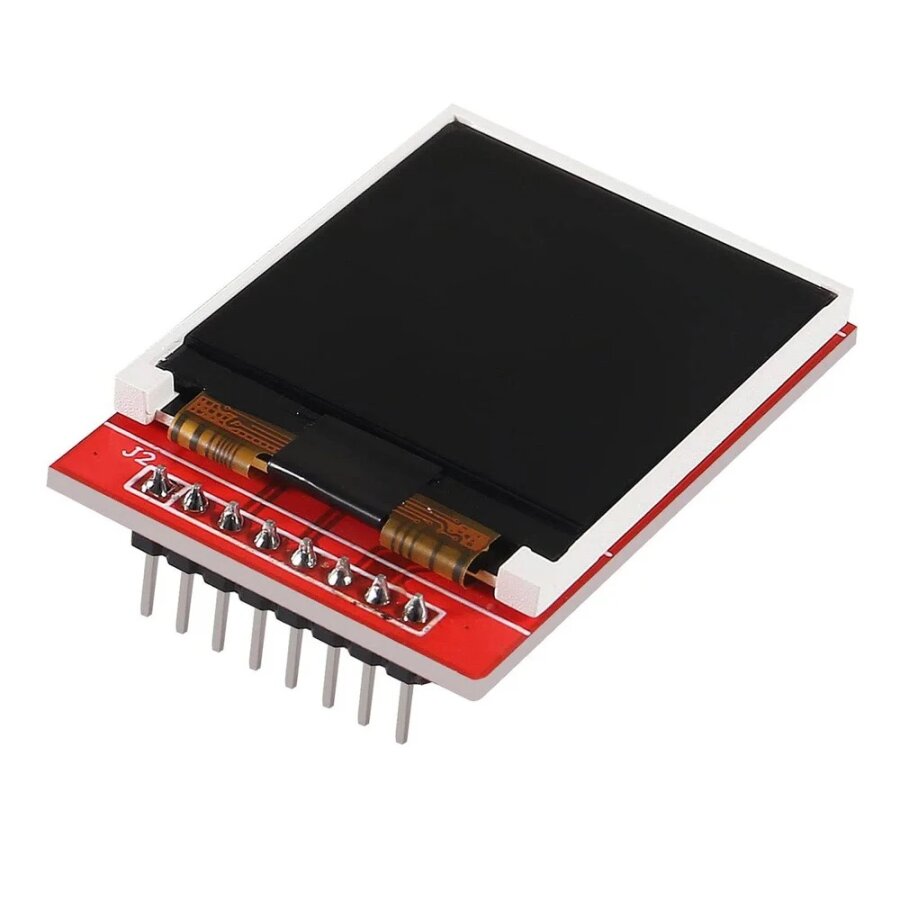

1.44'' 128x128 SPI TFT LCD Display

1.44'' 128x128 SPI TFT LCD Display

The 1.44'' 128x128 SPI TFT LCD Display is an ILI9163C-based 1.44-inch color TFT display with a resolution of 128 x 128 pixels, based on the SPI protocol. It can display up to 262,000 different colors. It can be considered a sister module to the 1.8-inch TFT display; However, it is much faster and has a better overall cost-performance ratio compared to a 1.8-inch TFT display.

Features

• Size: 1.44 inches
• Interface: SPI
• Resolution: 128*128 pixels
• Visual field: 1:1 square
• TFT color display, the effect is much better than other small CSTN displays
• Driver IC: ILI9163
• Fully compatible and alternative 5110 interface
• Built-in LDO supports 5V/3.3V input voltage, LED backlight, and 3.3V input
• Dimensions: 43x30x6mm

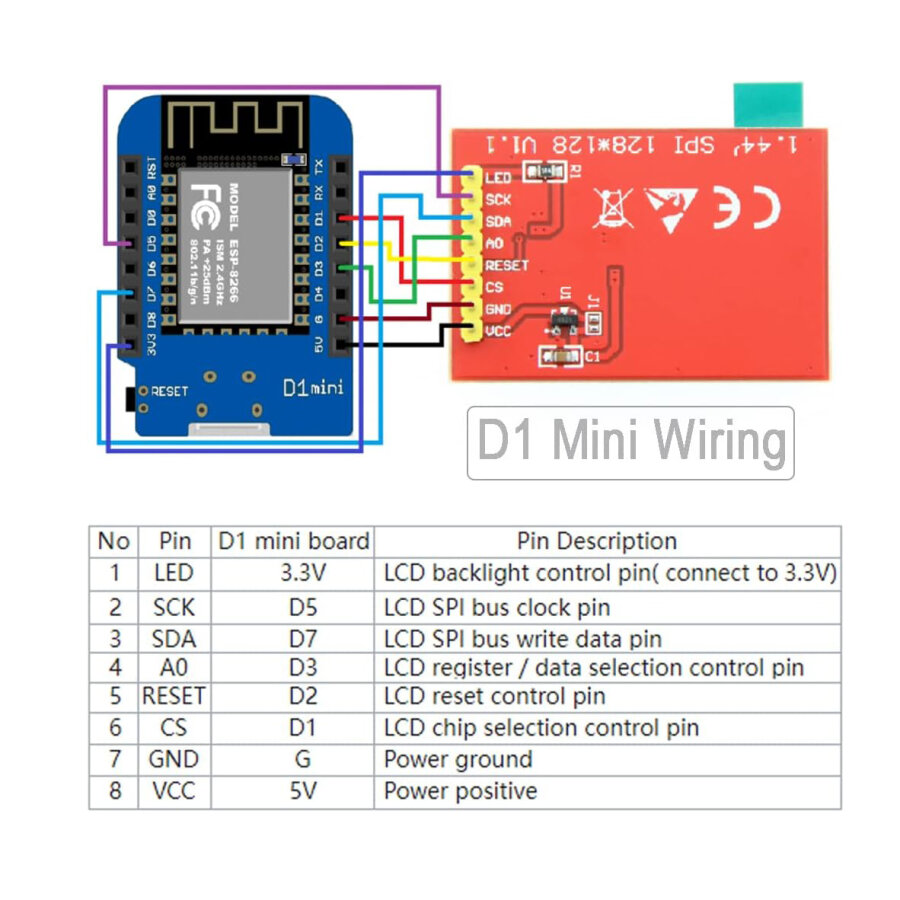

Sample Usage
