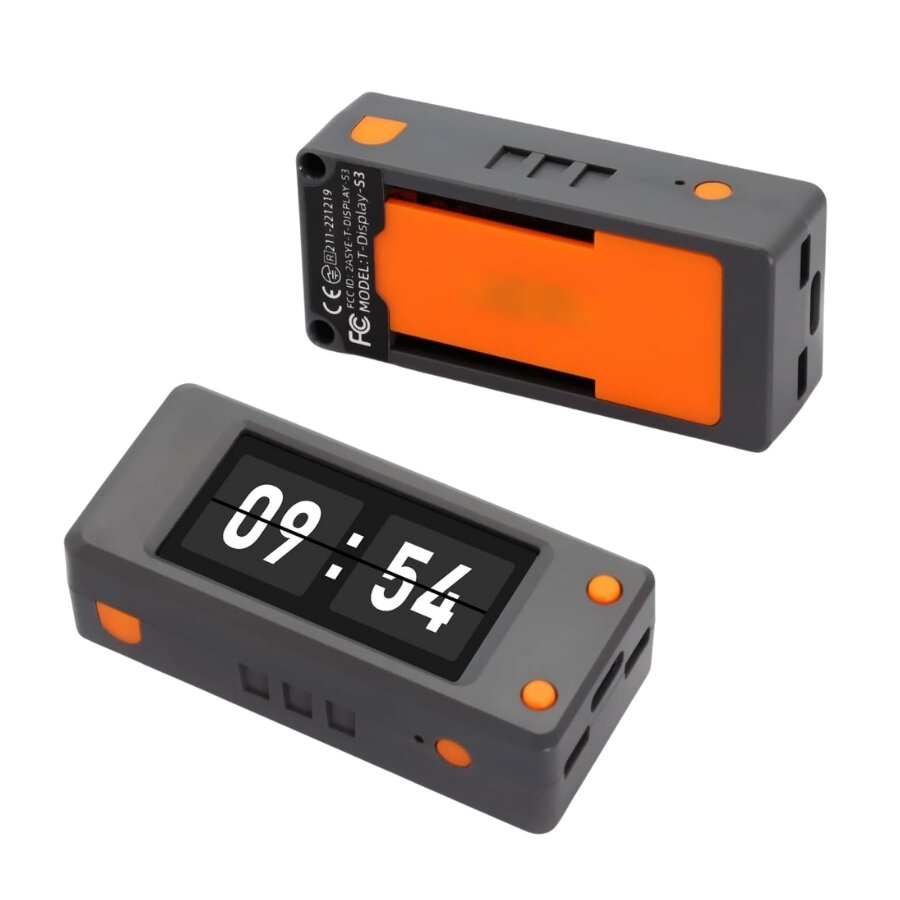

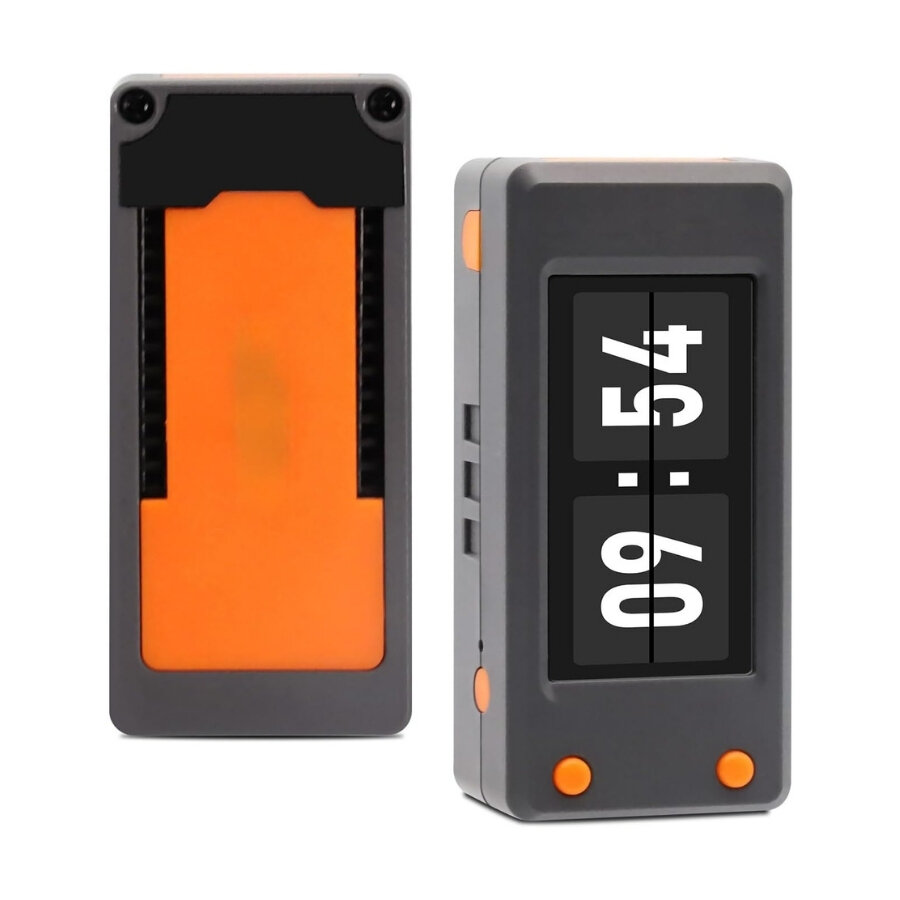

T-Display S3 ESP32-S3 1.9" ST7789 TFT Screen Development Board - Gray Box
T-Display S3 ESP32-S3 1.9" ST7789 TFT Screen Development Board - Gray Box, is a development board with the ESP32-S3 as its main control chip. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. It communicates via the I8080 interface. You can use the ESP32S3 directly for USB communication or programming.
The LILYGO T-Display S3 supports MIDI expansion boards, making it possible to play audio through headphones or stereo systems. This MIDI board is compatible with all versions of the LILYGO T-Display S3 development board, making it ideal for sound simulation and interactive projects.
This feature requires a MIDI expansion card, which is not included in the package.
You can find other T-Display S3 models here.
You can find sample code and the user manual here.
T-Display-S3 Technical Specifications | |||
SKU | K206 | ||
MCU | ESP32-S3R8 Dual-core LX7 microprocessor | ||
Flash | 16MB | PSRAM | 8MB |
Wireless Connectivity | Wi-Fi 802.11 | ||
Bluetooth 5.0 + BT mesh | |||
Programming Platform | Arduino-ide、Micropython | ||
Bat voltage detection | IO04 | ||
Onboard functions | Boot+Reset+IO14 Button | ||
1.9 inch ST7789V IPS TFT LCD | |||
Drive Chip | ST7789 | Resolution | 170(H) x 320(V) |
Screen Size | 1.9"Diagonal | Interface | 8-Bit Parallel |
Screen Type | TFT IPS LCD | Pixels Per Inch(PPI) | 260 |
Screen color | Full color | ||
Working Power Supply | 3.3v | ||

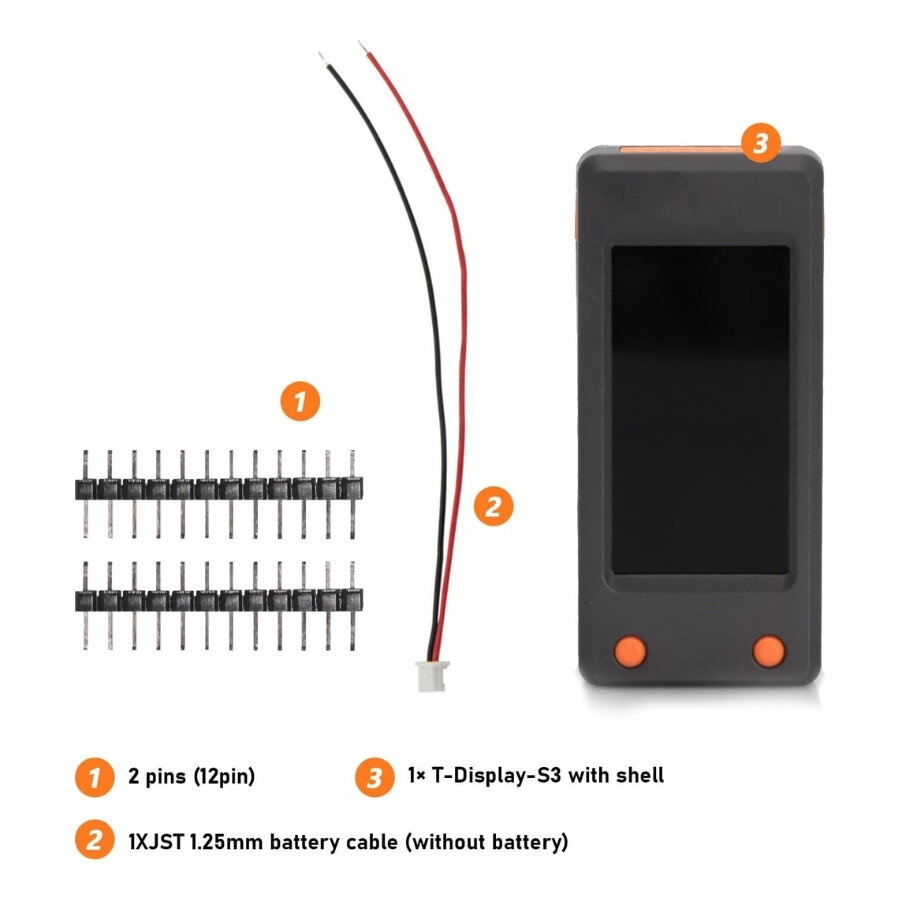

Package Content
- 1x T-Display-S3 (with box)
- 2x 2.54mm Header (1x12P)
- 1x JST 1.25mm 2P cable
Pinout
