T-Display S3 ESP32-S3 1.9" ST7789 TFT Screen Development Board - Solderless

T-Display S3 ESP32-S3 1.9" ST7789 TFT Screen Development Board - Solderless

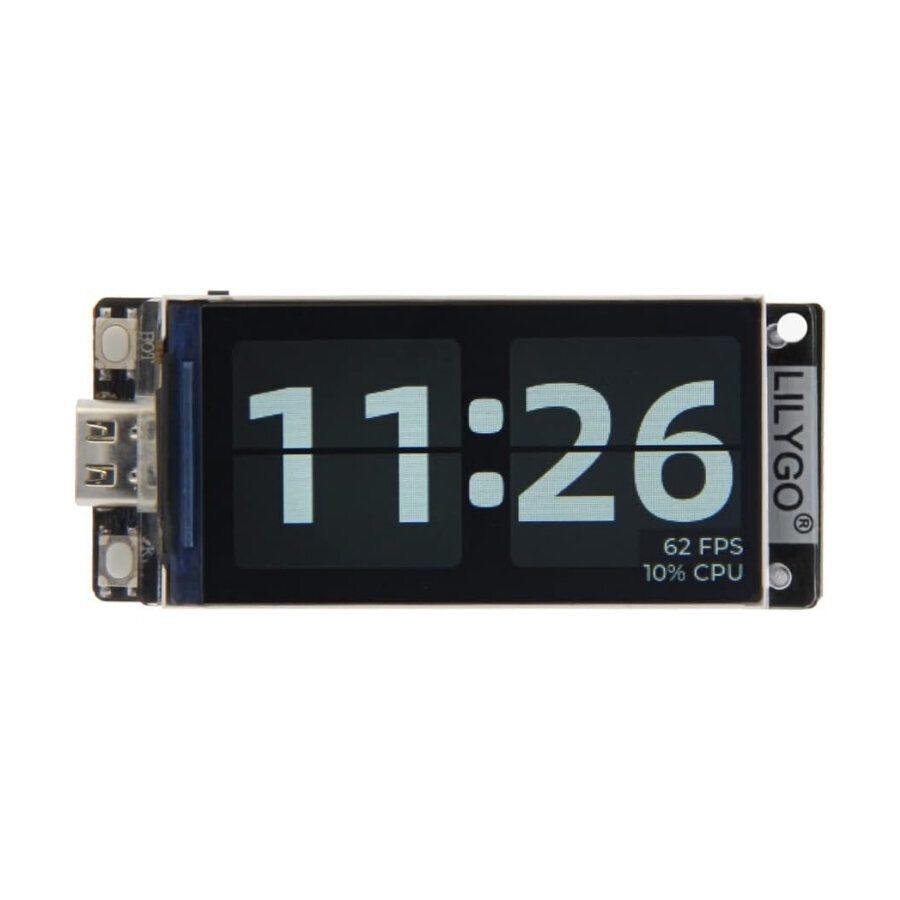

The T-Display S3 ESP32-S3 1.9" ST7789 TFT Screen Development Board - Solderless, is a development board with the ESP32-S3 as its main control chip. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. It communicates via the I8080 interface. You can use the ESP32S3 directly for USB communication or programming.

The LILYGO T-Display S3 supports MIDI expansion boards, making it possible to play audio through headphones or stereo systems. This MIDI board is compatible with all versions of the LILYGO T-Display S3 development board, making it ideal for sound simulation and interactive projects.

This feature requires a MIDI expansion card, which is not included in the package.

You can find other T-Display S3 models here.

You can find sample code and the user manual here.

T-Display-S3 Technical Specifications
SKU	H569
MCU	ESP32-S3R8 Dual-core LX7 microprocessor
Flash	16MB	PSRAM	8MB
Wireless Connectivity		Wi-Fi 802.11
		Bluetooth 5.0 + BT mesh
Programming Platform		Arduino-ide、Micropython
Bat voltage detection		IO04
Onboard functions		Boot+Reset+IO14 Button
1.9 inch ST7789V IPS TFT LCD
Drive Chip	ST7789	Resolution	170(H) x 320(V)
Screen Size	1.9"Diagonal	Interface	8-Bit Parallel
Screen Type	TFT IPS LCD	Pixels Per Inch(PPI)	260
Screen color		Full color
Working Power Supply		3.3v

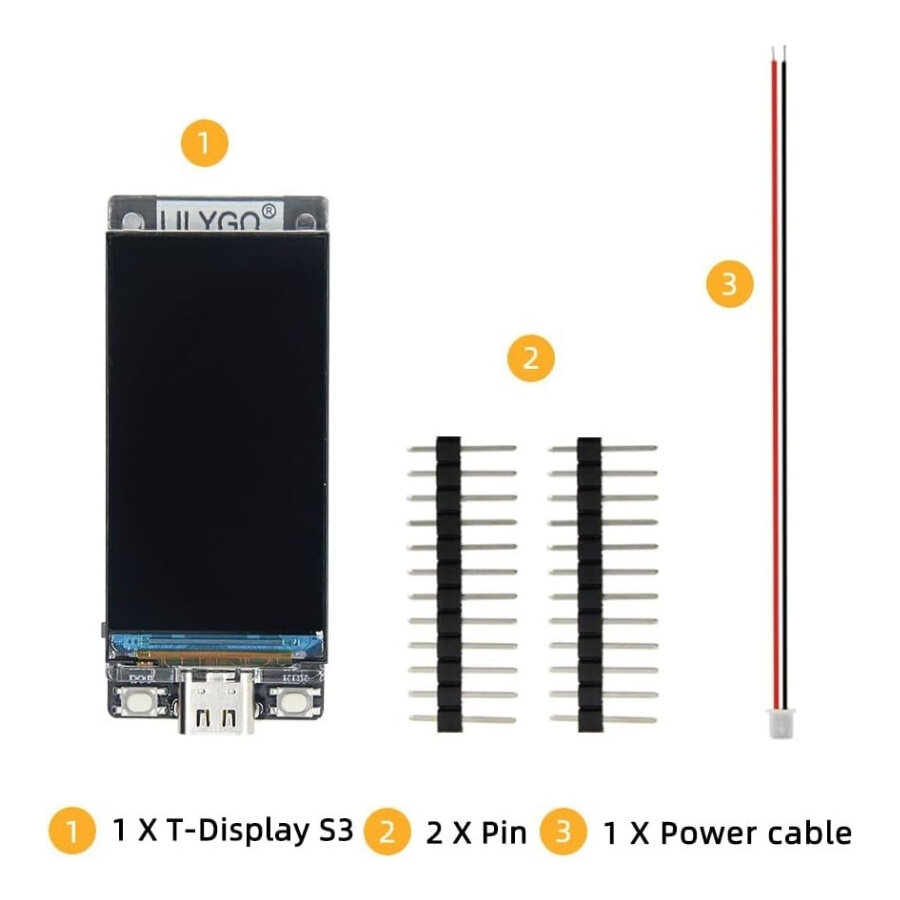

Package Content

• 1x T-Display-S3
• 2x 2.54mm Header (1x12P)
• 1x JST 1.25mm 2P ​​cable

Pinout
