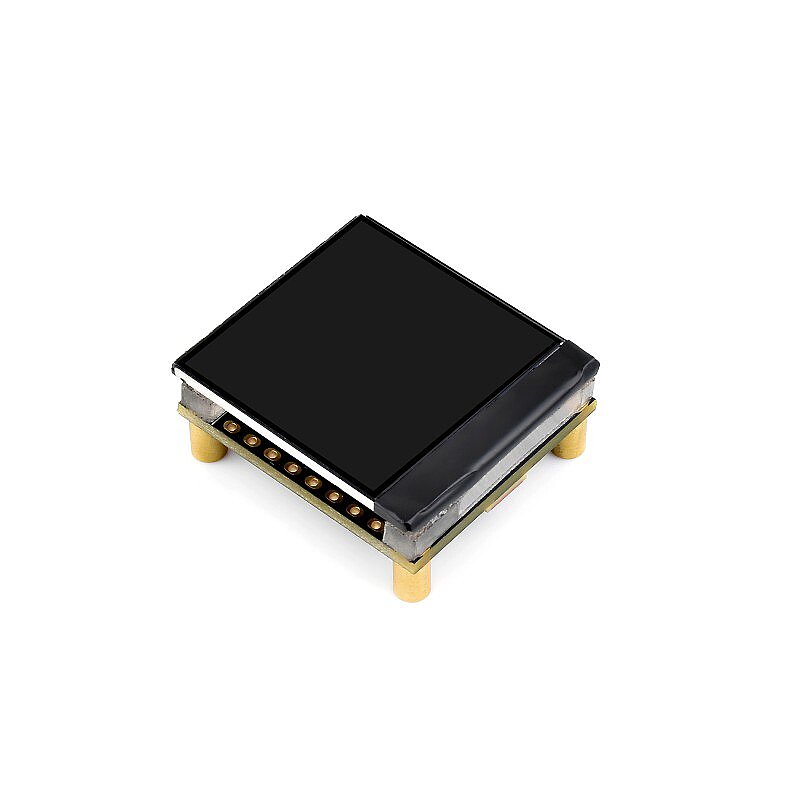

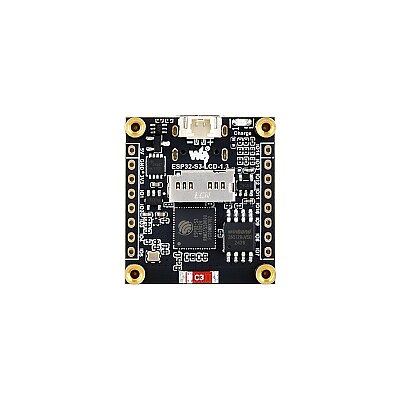

ESP32-S3 Development Board with 1.3" 240x240 ST7789V2 Display

ESP32-S3 Development Board with 1.3" 240x240 ST7789V2 Display

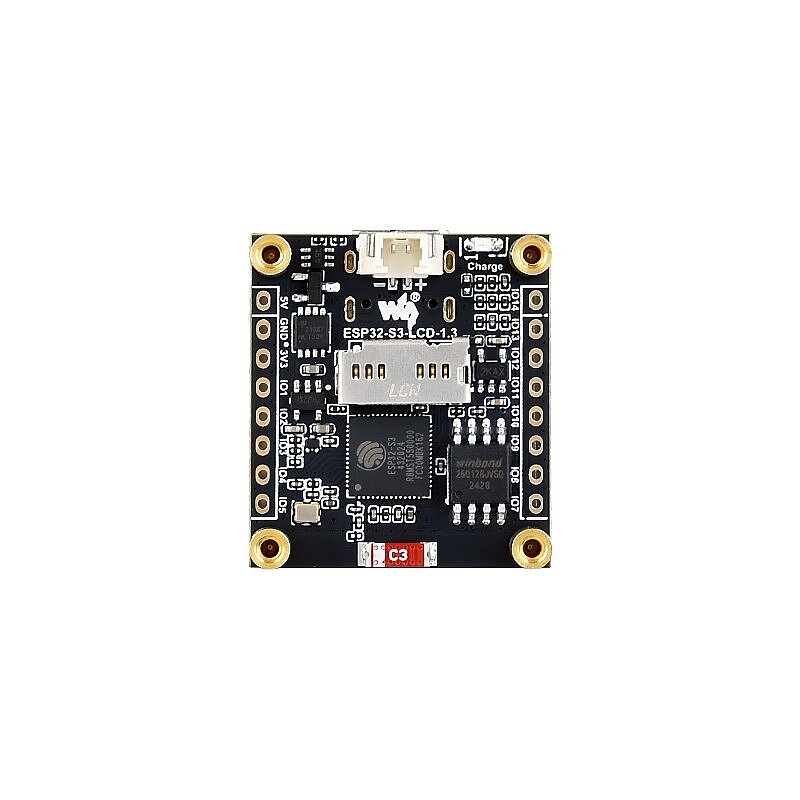

The ESP32-S3 development board with a 1.3" 240x240 ST7789V2 display is a low-cost, high-performance MCU board equipped with a 240 MHz dual-core processor. In addition to its compact size, Thanks to features such as the onboard 1.3-inch 262K color LCD screen, lithium battery charging management unit, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RGB LED, and Wi-Fi/Bluetooth antenna, it makes it easy to rapidly develop the board and integrate it into products.

Wiki Page

Features

• SKU: 30558
• Equipped with a high-performance Xtensa 32-bit LX7 dual-core ESP32-S3R8 processor capable of clock speeds up to 240 MHz
• Offers 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) support via its onboard antenna
• Features 8MB PSRAM and external 16MB Flash memory, in addition to internal 512KB SRAM and 384KB ROM
• Uses a modern and user-friendly Type-C connector

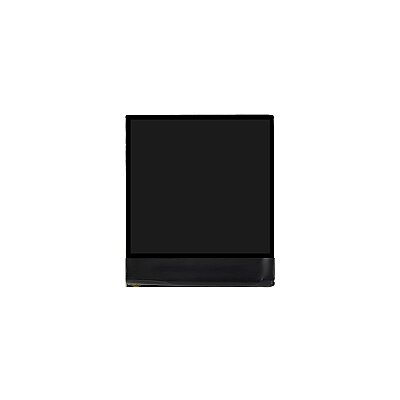

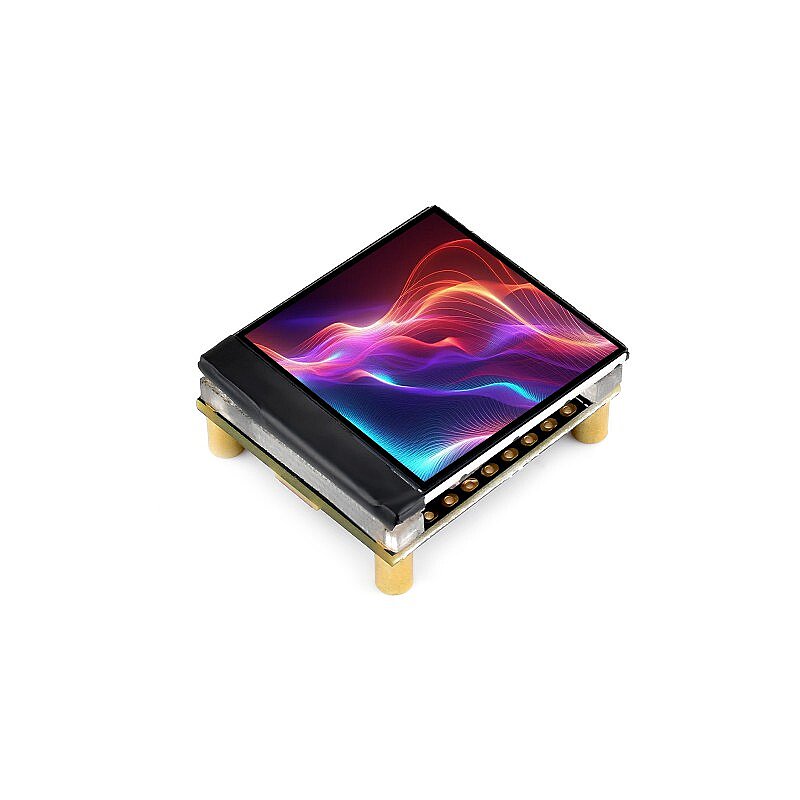

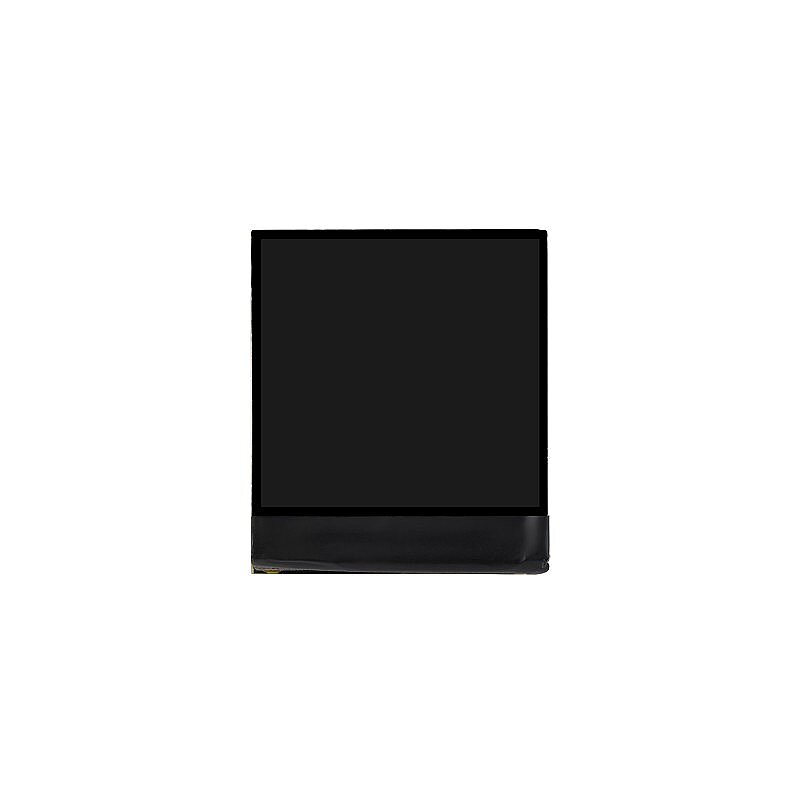

• Includes a 1.3-inch display with 240×240 pixel resolution and 262K color support for clear, colorful visuals
• Efficiently conserves IO resources thanks to the onboard ST7789V2 display driver utilizing SPI communication
• Includes an onboard QMI8658 6-axis sensor for motion detection and other applications
Features an IMU unit (3-axis accelerometer and 3-axis gyroscope)
• Includes a 3.7V MX1.25 lithium battery charge/discharge port
• Uses a 13-pin 2.54mm GPIO connector for connecting peripherals and debugging; allows for flexible configuration of pin functions
• Optional prism cube available to enhance optical imaging effects and provide expandability

Package Contents

• ESP32-S3-LCD-1.3 x1
• Header x2

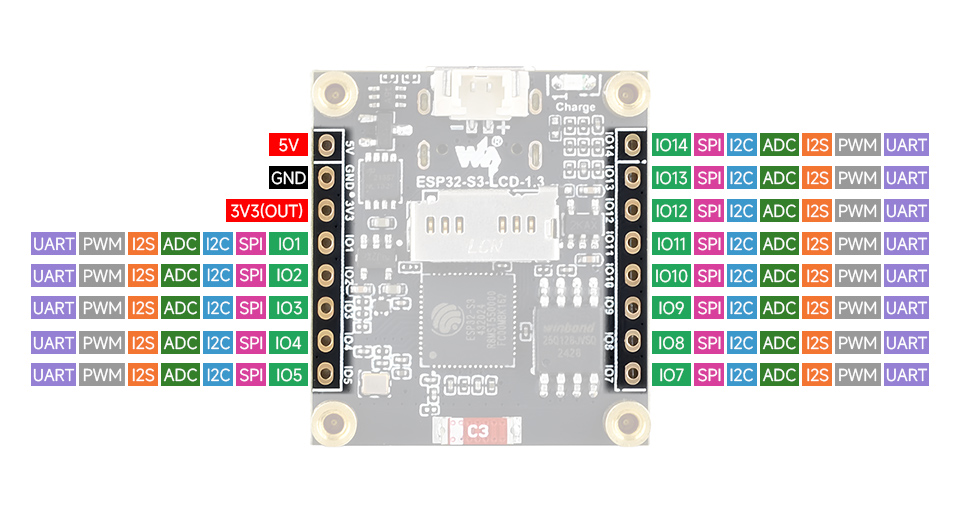

Pinout

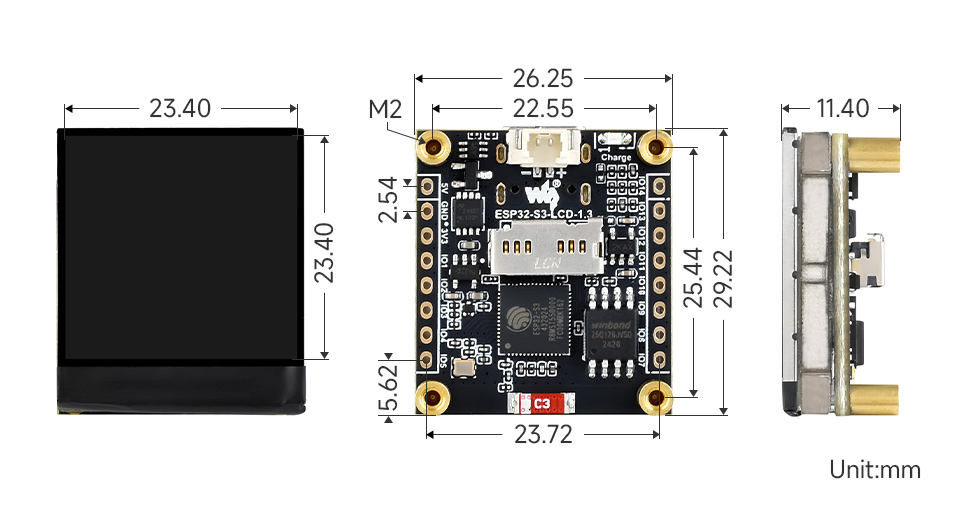

Dimensions
