2.4" ST7789 LCD TFT Screen + EC11 Rotary Encoder Module

2.4" ST7789 LCD TFT Screen + EC11 Rotary Encoder Module

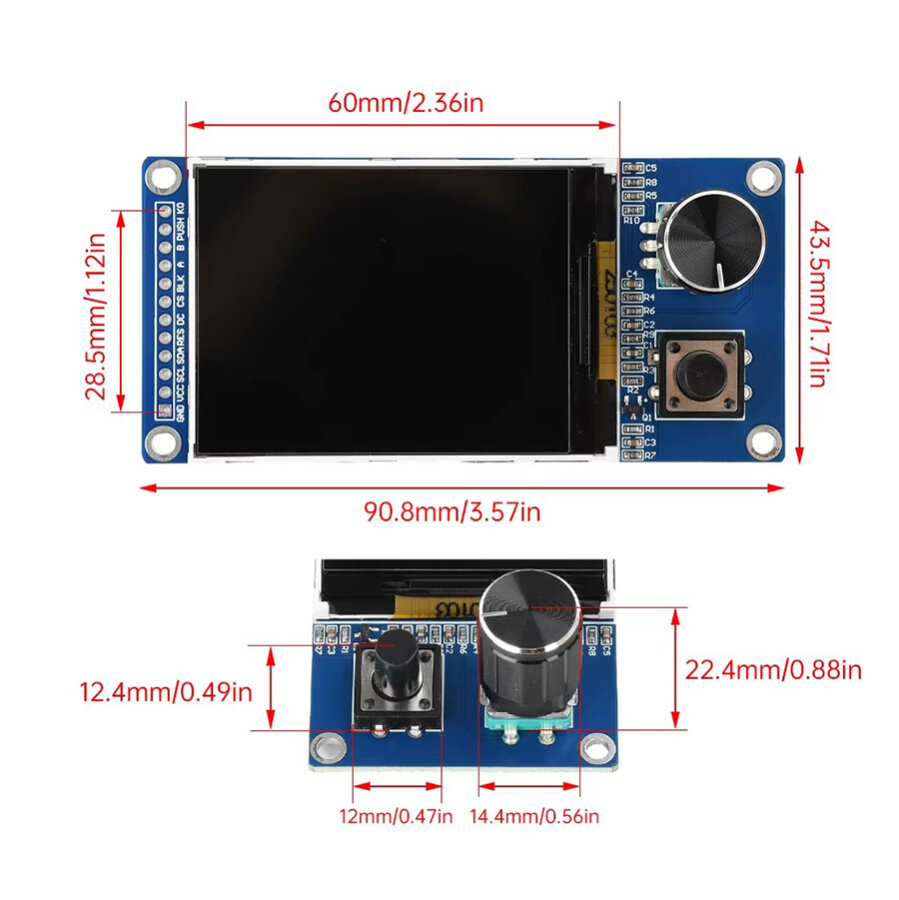

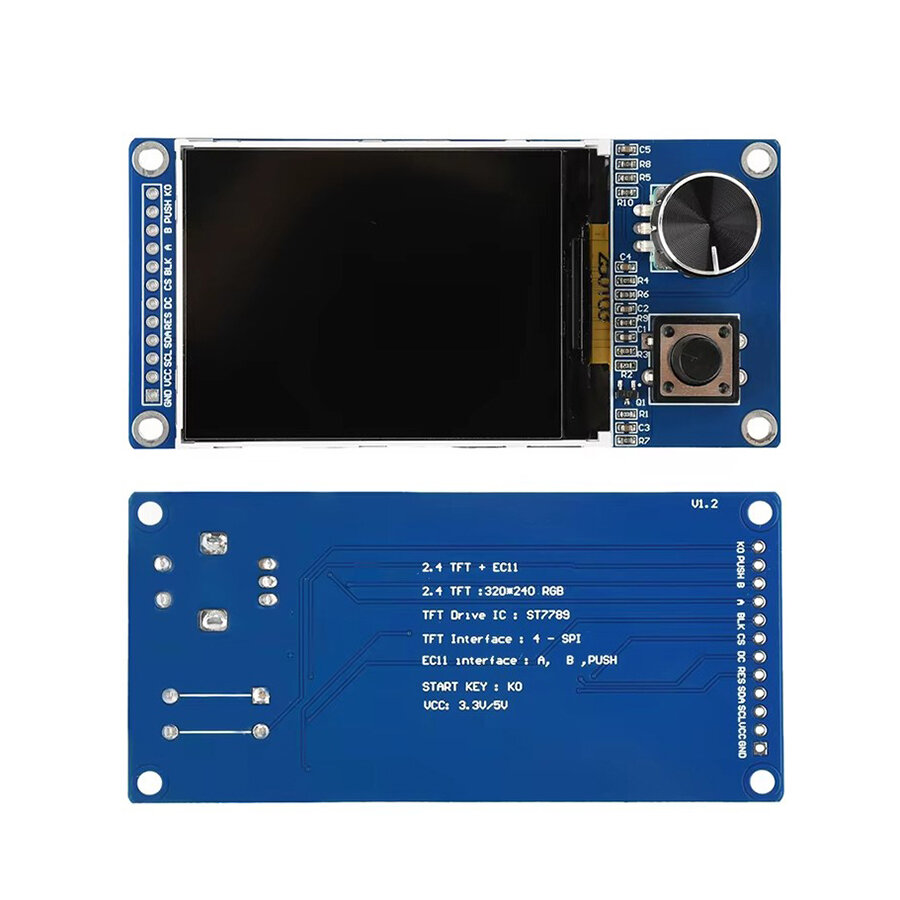

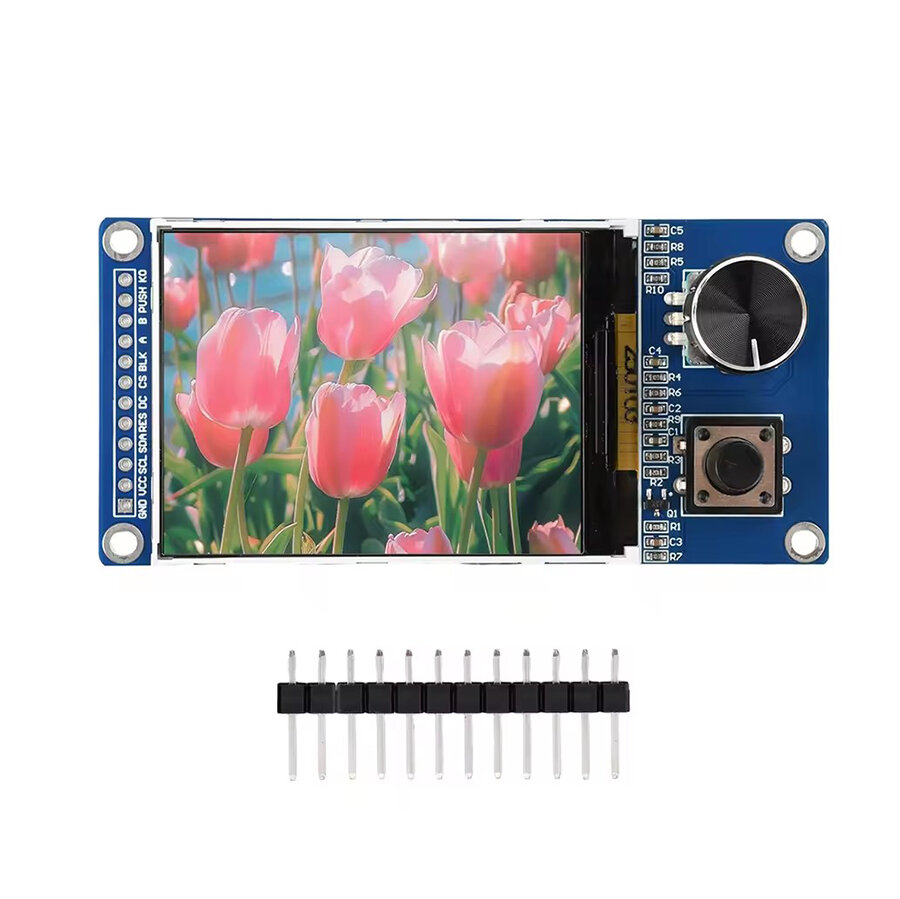

The 2.4" ST7789 LCD TFT Screen + EC11 Rotary Encoder Module combines a TFT screen with an EC11 rotary encoder to offer a compact and versatile human-machine interface solution.

It is designed specifically for various DIY electronics projects involving microcontrollers such as Arduino.

User Manual

Features

• All-in-one design: The display and encoder are integrated into a single board for simplicity and aesthetics, making it suitable for DIY projects.
• High-resolution display: The 2.4-inch version provides 320x240 RGB resolution, offering clear and detailed visuals.
• SPI interface support: It uses a standard SPI interface for strong compatibility, making it easy to connect and program with various microcontrollers.
It simplifies.
• Switched encoder: Features an EC11 rotary encoder with a 15 mm shaft, providing 20 pulses and 20 positioning points per revolution, and has an integrated push-button switch function.

Technical Specifications

• Supply Voltage: 3.3/5V DC
• Driver Chip: ST7789
• Interface: SPI
• Resolution: 320*240 RGB
• EC11;
  • Shaft length 15 mm
  • 20 pulses
  • 20 positioning
  • 5 pins and switched
