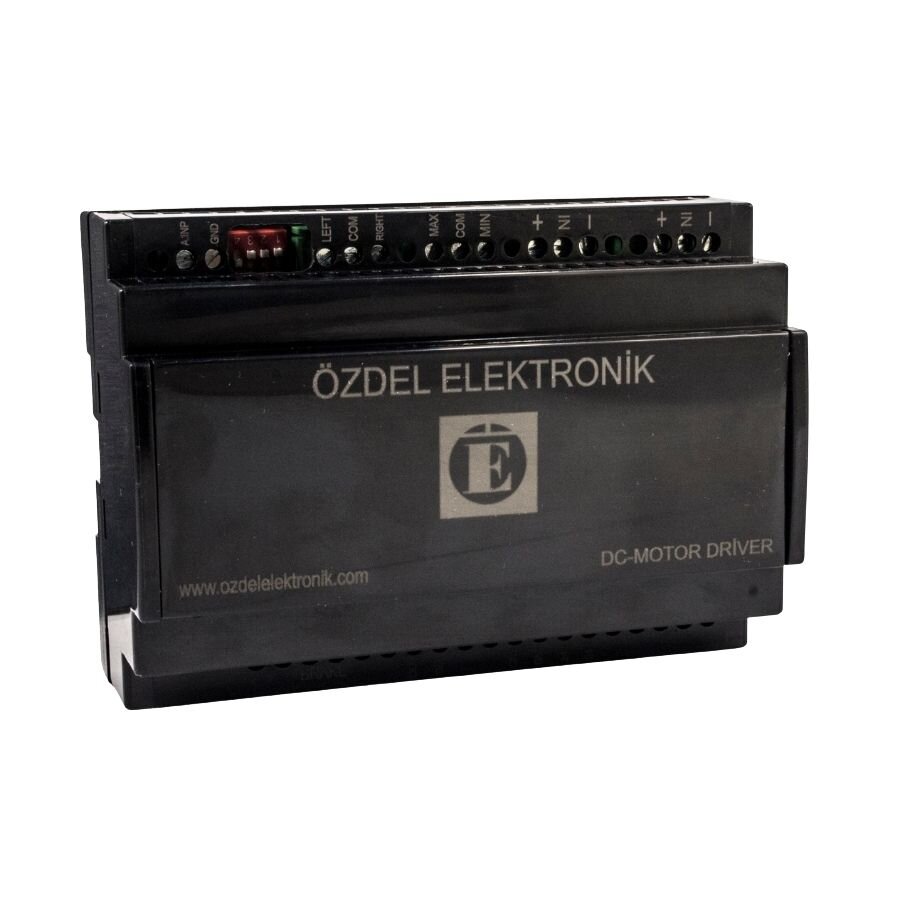

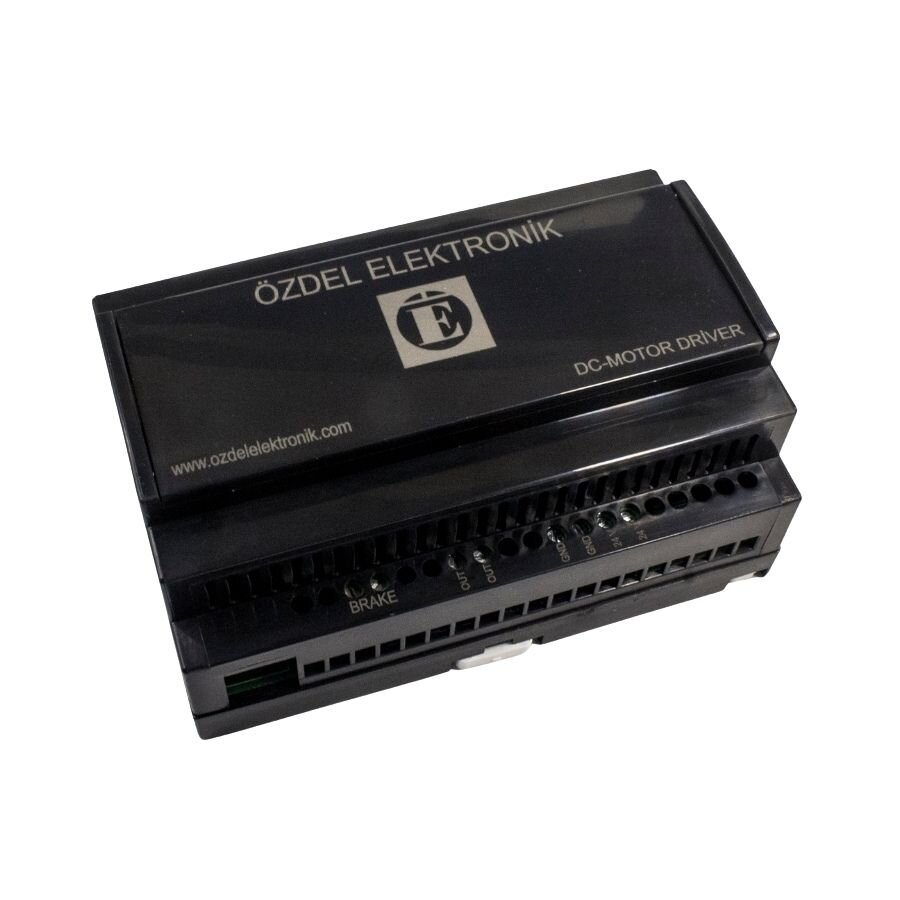

15-30V 250W Rail Type DC Motor Driver

The 15-30V 250W Rail Type DC Motor Driver is a microprocessor-based controller that enables precise speed control and external direction control of DC motors. It supports instant direction switching and can withstand peak currents of up to 80A for 4ms. It includes potentiometer and analog input options.

User Manual

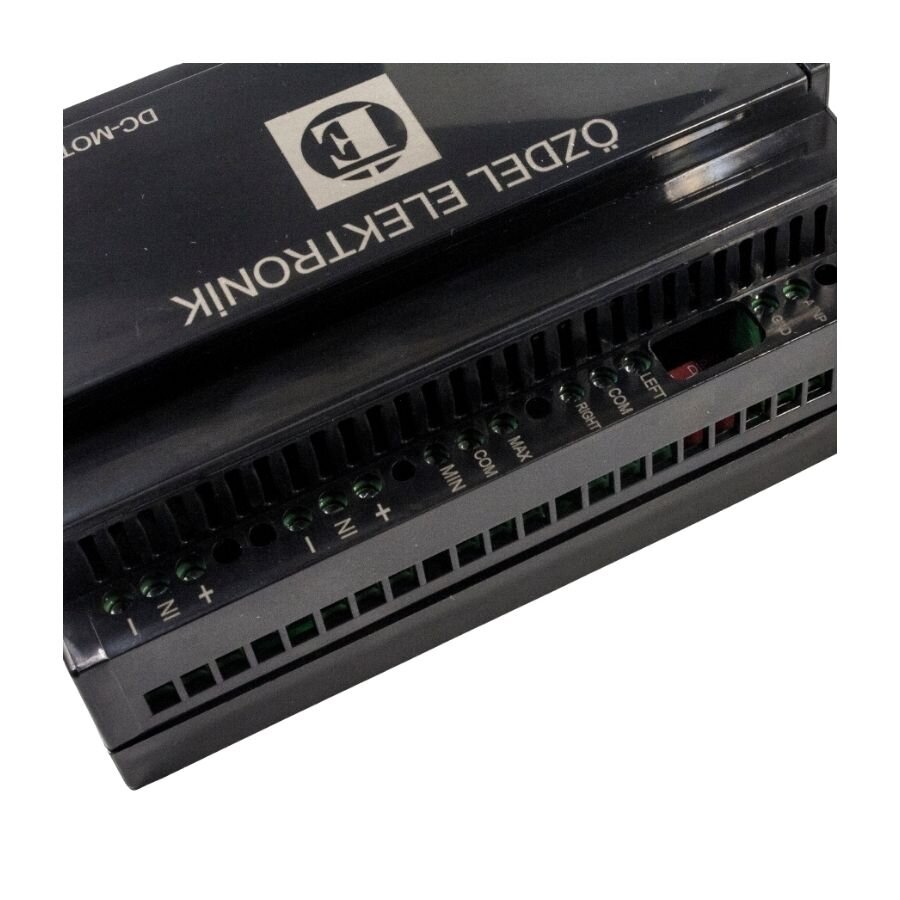

Inputs

• 0-10V Analog Input
• Direction Input
• Potentiometer Input
• Proximity Switch Input

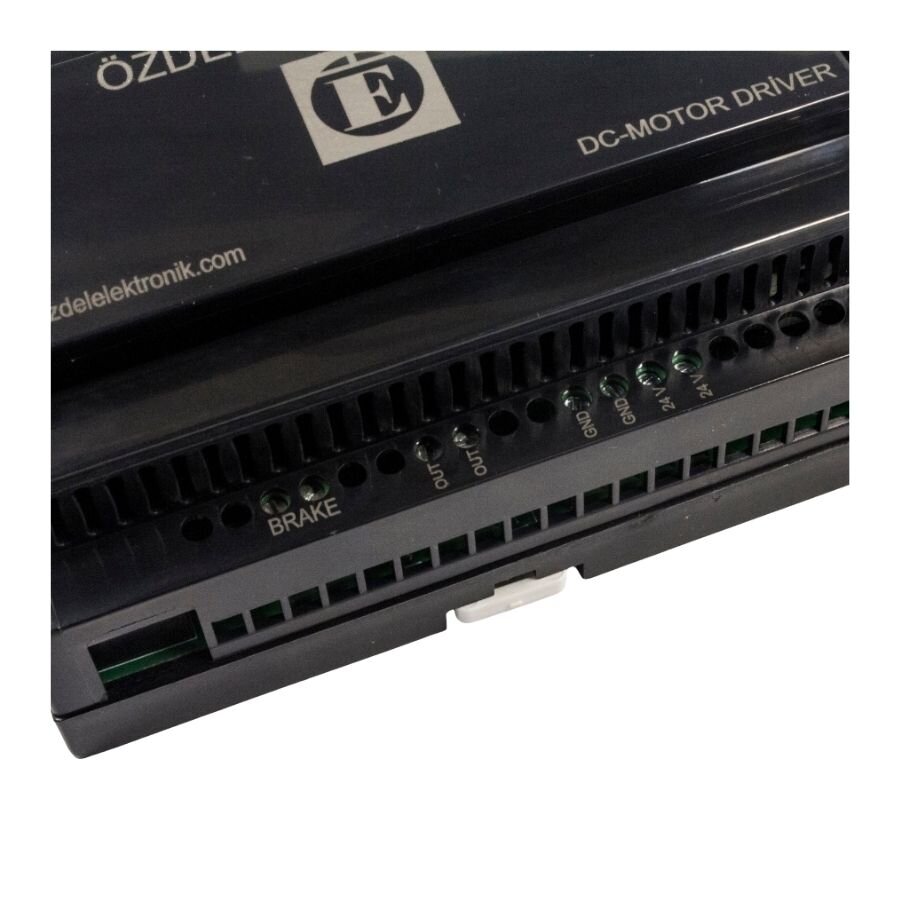

Outputs

• Motor Output
• Spring-Loaded Brake Output 3A

Specifications

• Supply Voltage: 15-30VDC
• Continuous Output Current: 24V DC – 14A
• Operating Temperature: -40°C to +85°C
• Response Time: 1ms

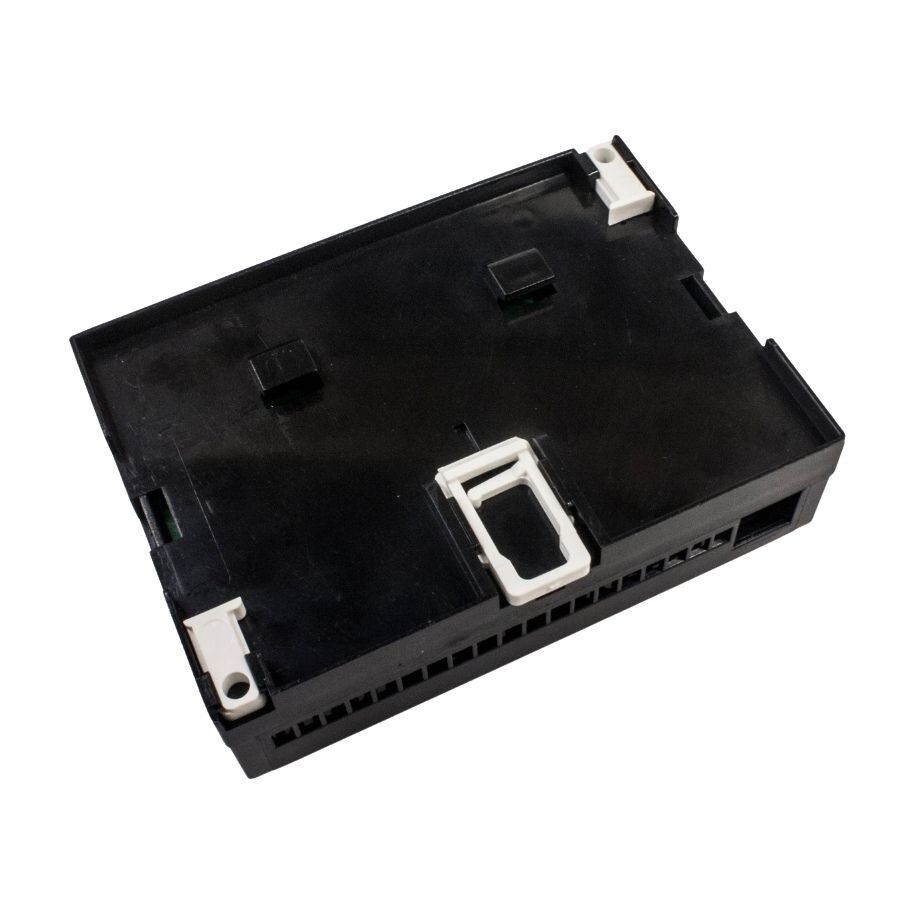

• Mounting Type: DIN Rail
• Dimensions: 126x57x91mm
• Weight: 350 grams

DIP Switch Features

• DIP SWITCH 1 MODE ON/OFF
  Automatic operation with proximity switch and direction terminals. Enables the motor to run in clockwise and counterclockwise directions without stopping when the sensors are triggered. Direction terminals are included.
• DIP SWITCH 2 MODE ON/OFF
  Manual operation with proximity switch and direction terminals. If the DC motor is running in one direction when a sensor is triggered, it stops and waits for a signal in the opposite direction. Once the sensor is no longer triggered, the motor resumes operation upon receiving a new signal.
• DIP SWITCH 3 MODE ON/OFF
  Single direction operation.
• DIP SWITCH 4 MODE ON/OFF
  Operates upon receiving a signal. When a signal is received at the "Left" direction terminal, the DC motor starts running and continues in that direction until the signal is removed. The same applies for the "Right" direction terminal.
