1.54'' 128x64 OLED LCD Screen

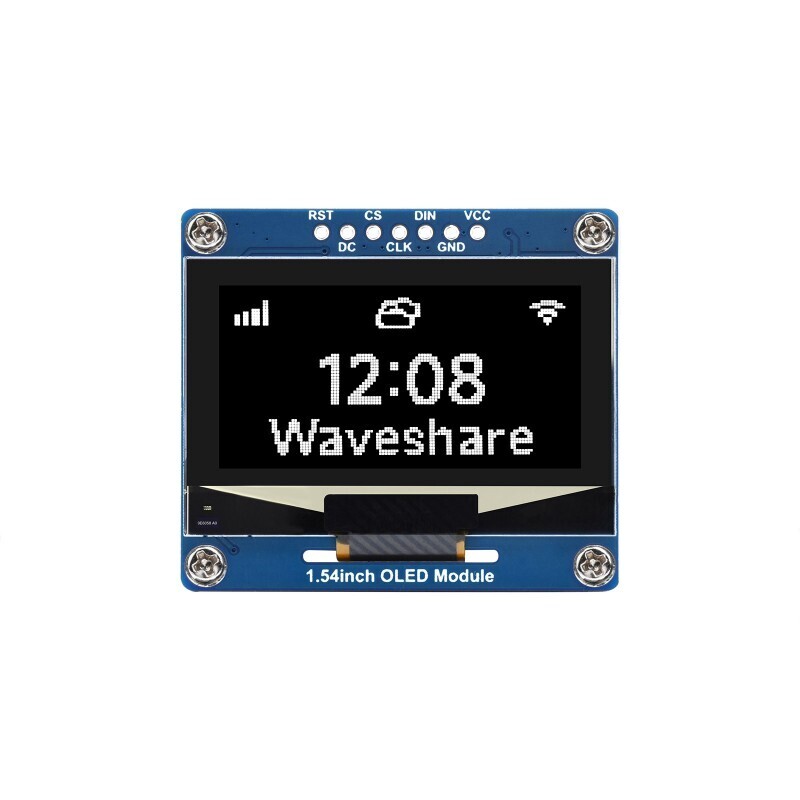

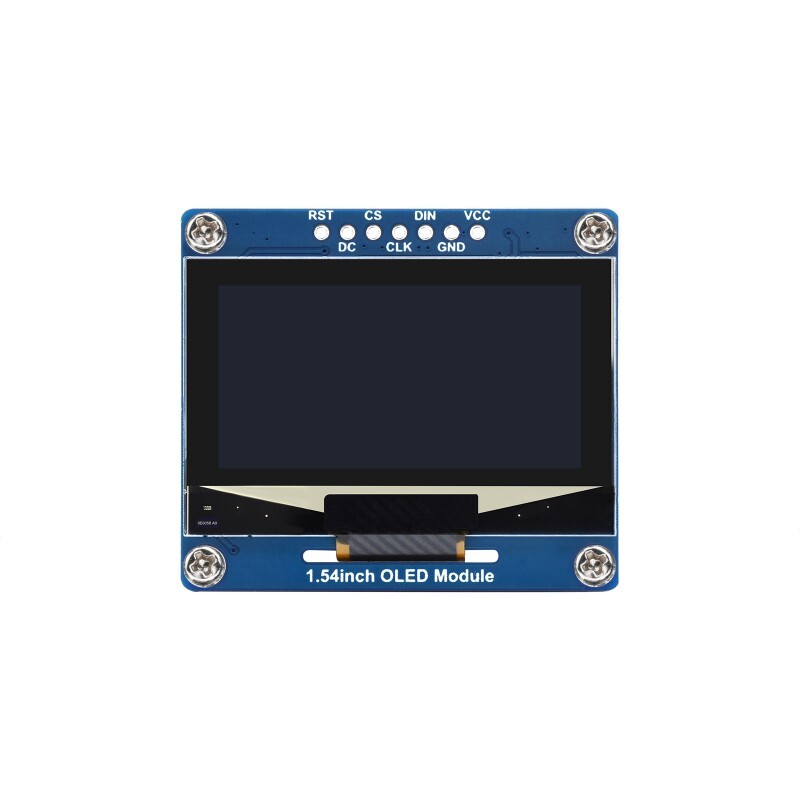

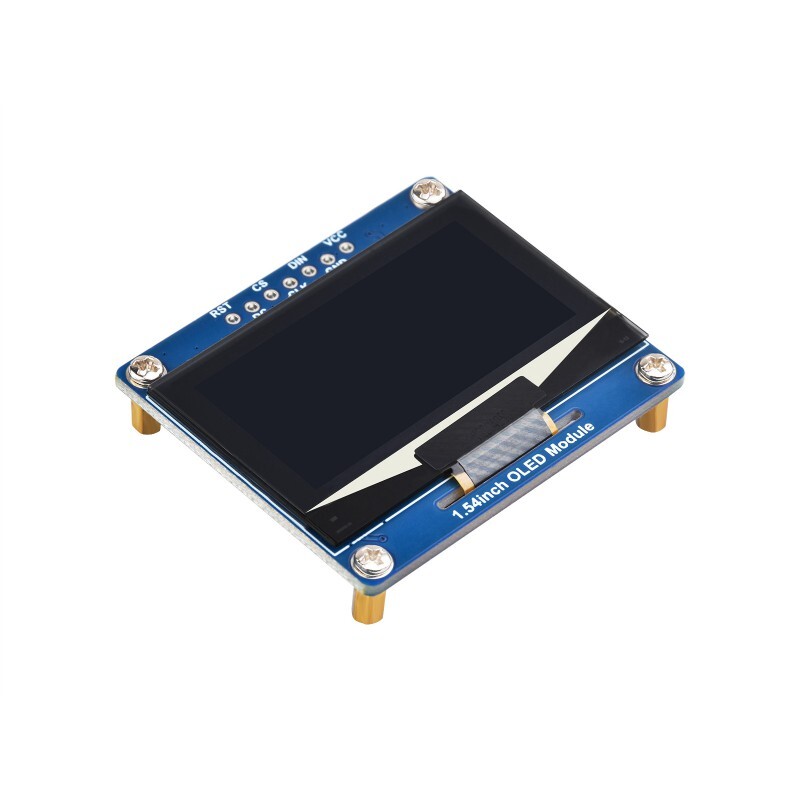

1.54'' 128x64 OLED LCD Screen, This product is a 1.54-inch OLED module with a built-in SSD1309 driver chip and provides demo information to Raspberry Pi, Arduino, STM32, ESP32, Jetson Nano and other mobile devices by communicating via SPI/I2C interface.
Features
- SKU: 25512
- Operating Voltage: 3.3V / 5V
- Communication Interface: SPI / I2C
- Driver: SSD1309
- Resolution: 128 × 64 pixels
- Pixel Size: 0.254 × 0.254 (mm)
- Screen Size: 35.05 × 17.52 mm
- Module Size: 43 × 37.5 (mm)
- Screen Color: White

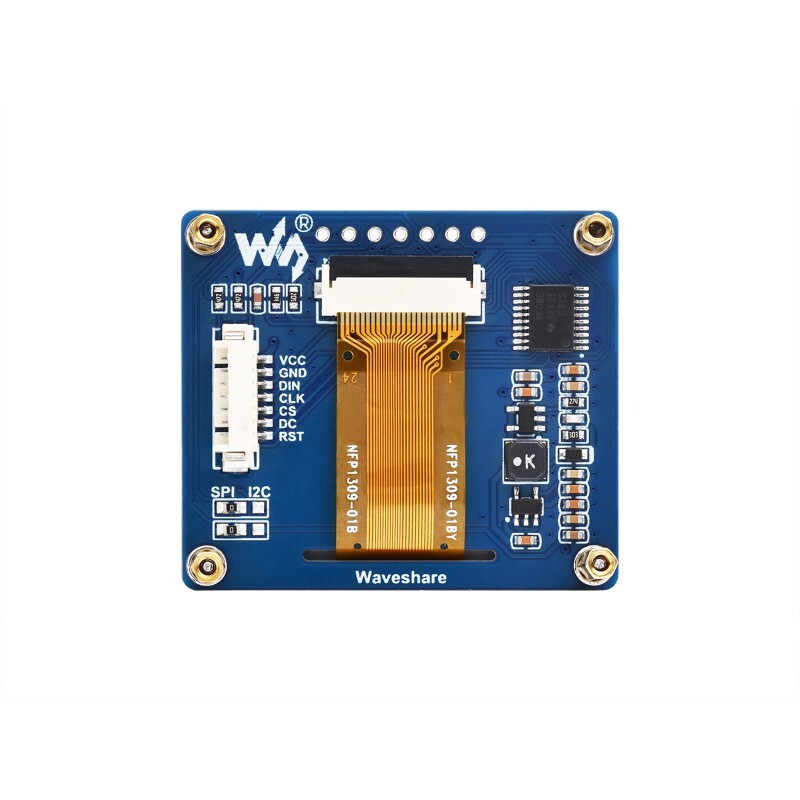

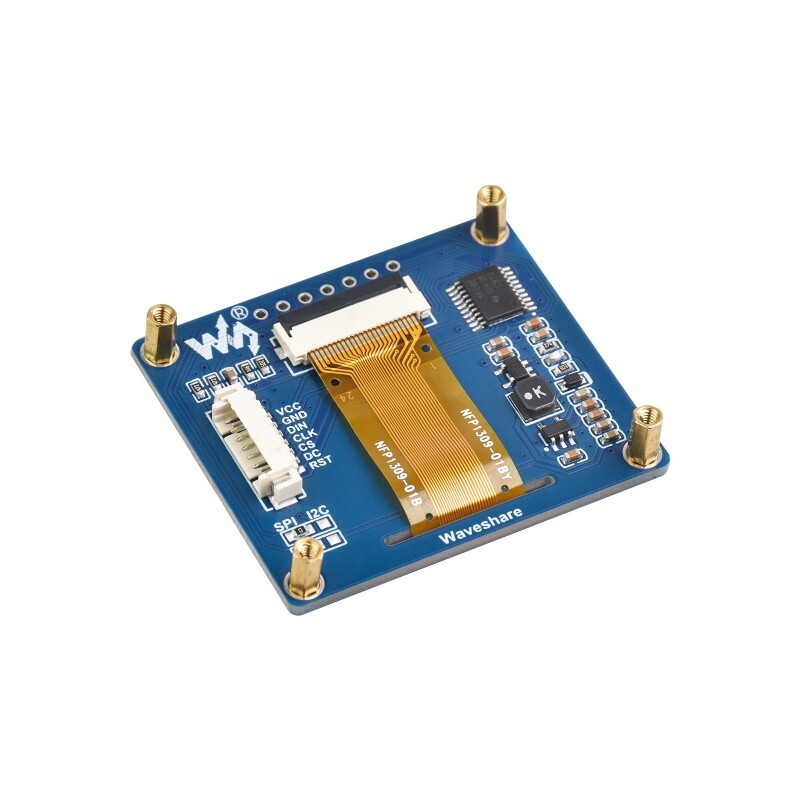

Pinout
| PIN | SPI | I2C |
| VCC | 5V/3.3V Power Input | |
| GND | Power Ground | |
| DIN | Data Input | I2C Data Input |
| CLK | Clock Signal Input | I2C Clock Signal Input |
| CS | Chip selection, low active | NC |
| DC | Data/command, low for command, high for data | I2C Address |
| RST | Reset, low active | |
