2.42'' 128x64 SSD1309 OLED LCD Screen - Yellow
You can use the 2.42'' 128x64 SSD1309 OLED LCD Screen - Yellow in your Arduino and other microcontroller projects. Thanks to its OLED technology, you can obtain high-contrast images without the need for backlighting.
The module comes with an integrated SSD1309 driver.
Specifications
- Text Color: Yellow
- Resolution: 128 x 64 pixels
- Interface: 4-wire SPI
- Driver IC: SSD1309
- Operating Voltage: 3 - 5.5 V

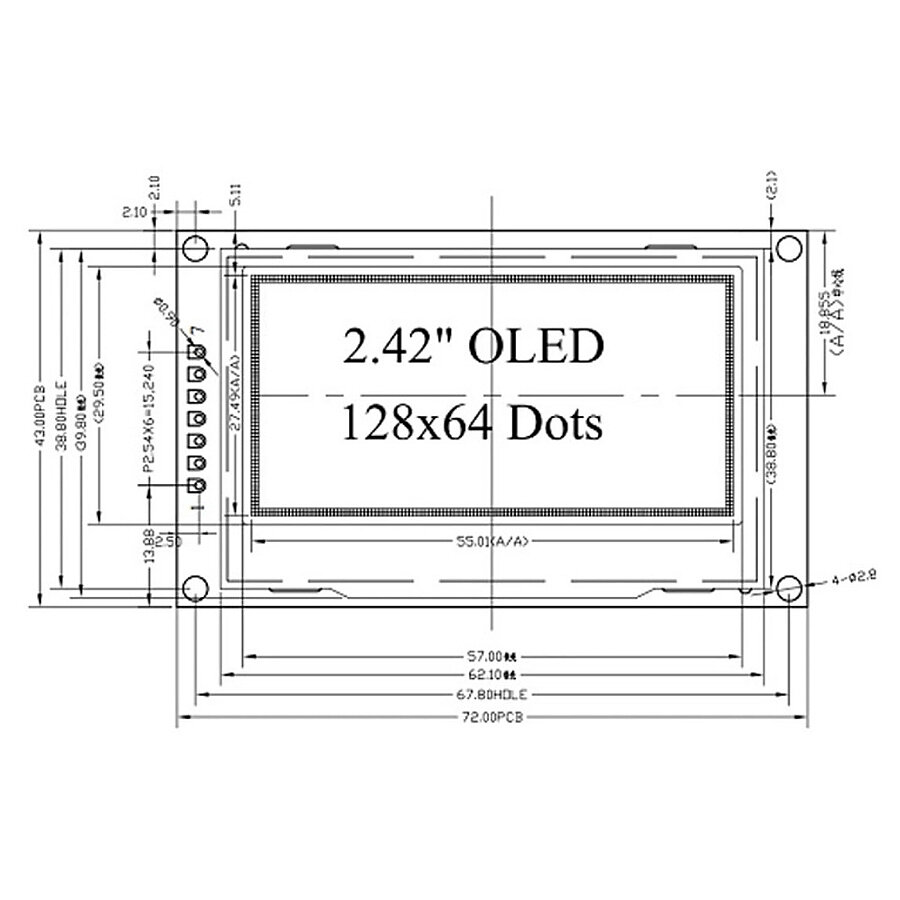

- Display Area: 55.01 x 27.49 mm
- Module Size: 72.00 x 43.00 mm
- Pixel Pitch: 0.43 x 0.43 mm
- Pixel Size: 0.40 x 0.40 mm
- Viewing Angle: Full Angle
- Operating Temperature: -40 - 80°C

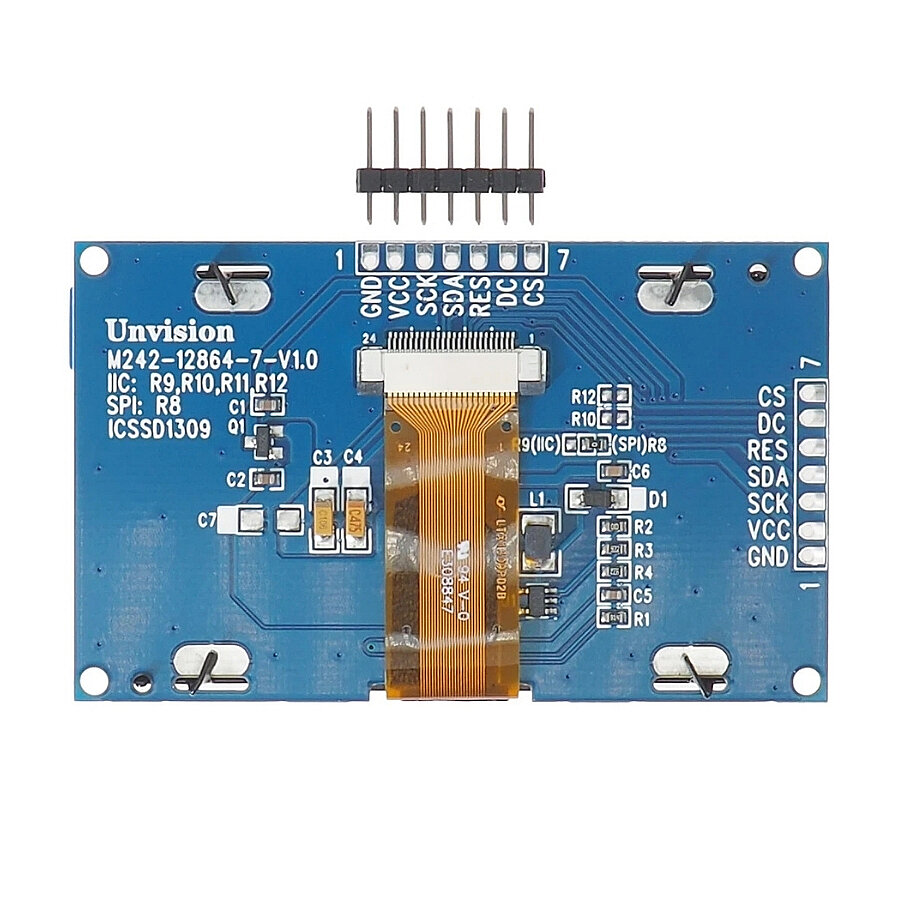

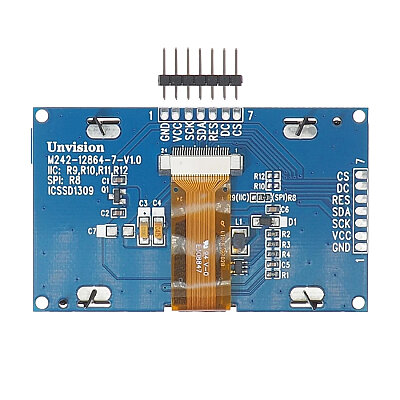

Pinout
- VCC - Supply voltage 3.3V
- GND - Ground
- SCK - SPI Clock line
- SDA - SPI Data line
- RST - Display reset
- DC - SPI Data/Command Selection
- CS - SPI Chip Selection, low level active
