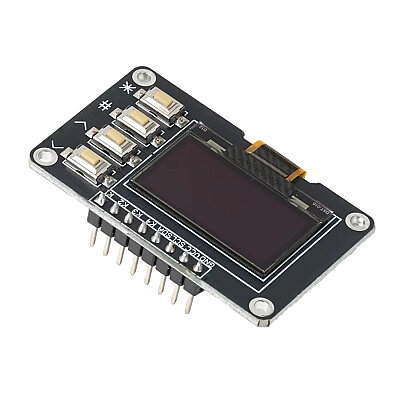

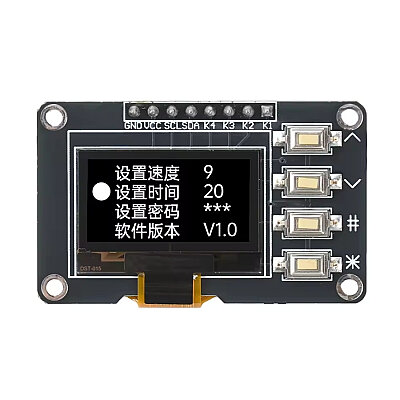

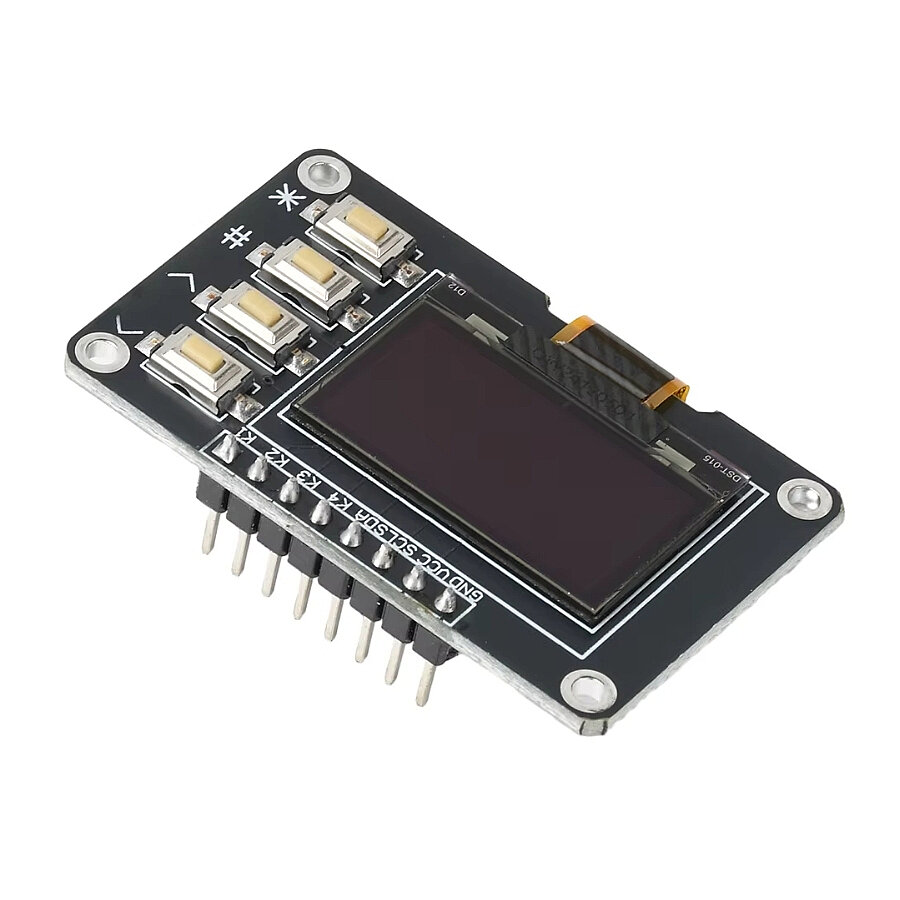

0.96'' 128x64 SSD1315 4-Button OLED LCD Screen - White
The 0.96'' 128x64 SSD1315 4-Button OLED LCD Screen - White combines a high-resolution 128×64 OLED display with an integrated 4-button keypad, making it ideal for compact and interactive embedded projects. With its full viewing angle, fast refresh rate, and simple I2C (IIC) interface, it's perfectly compatible with Arduino, ESP32, ESP8266, STM32, and other microcontroller platforms.
Specifications
- Operating Voltage: 3.3VDC
- Screen Size: 0.96"

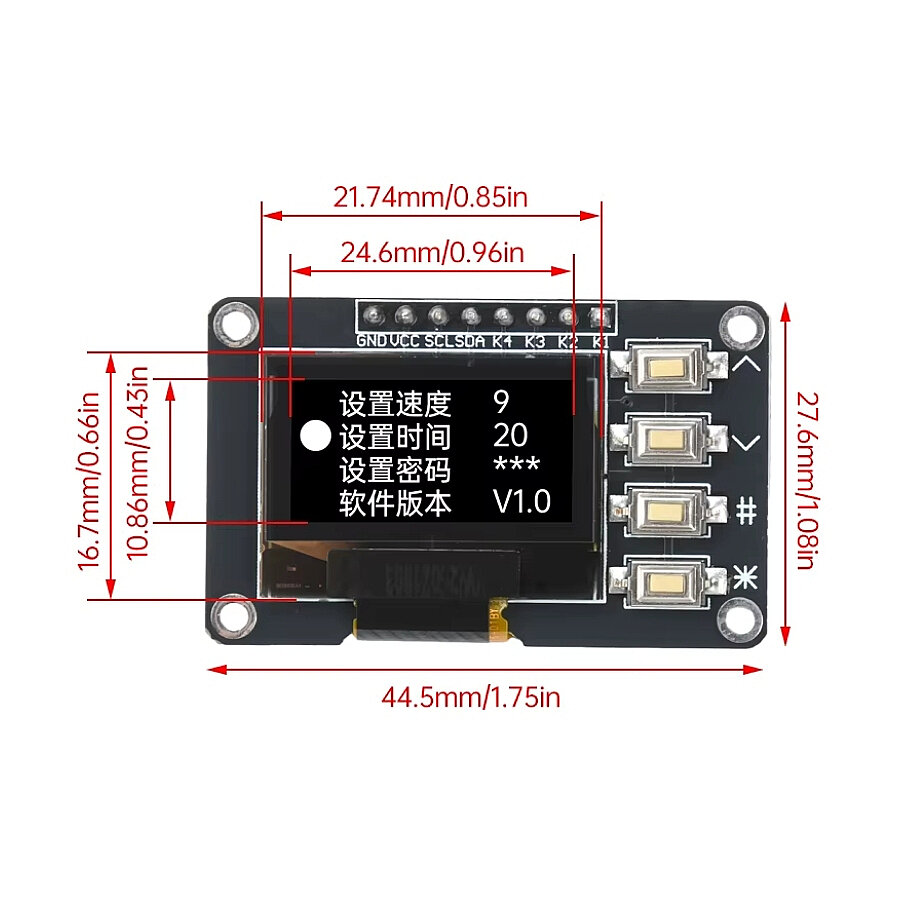

- Display Area: 21.74*10.86mm
- Pixel Pitch: 0.17mm*0.17mm
- Resolution: 128x64
- Control Chip: SSD1315
- Interface: IIC
- Display Color: White
- Refresh Rate: 100 Frames per second
- Working Environment Temperature: -40 ~ 70°C

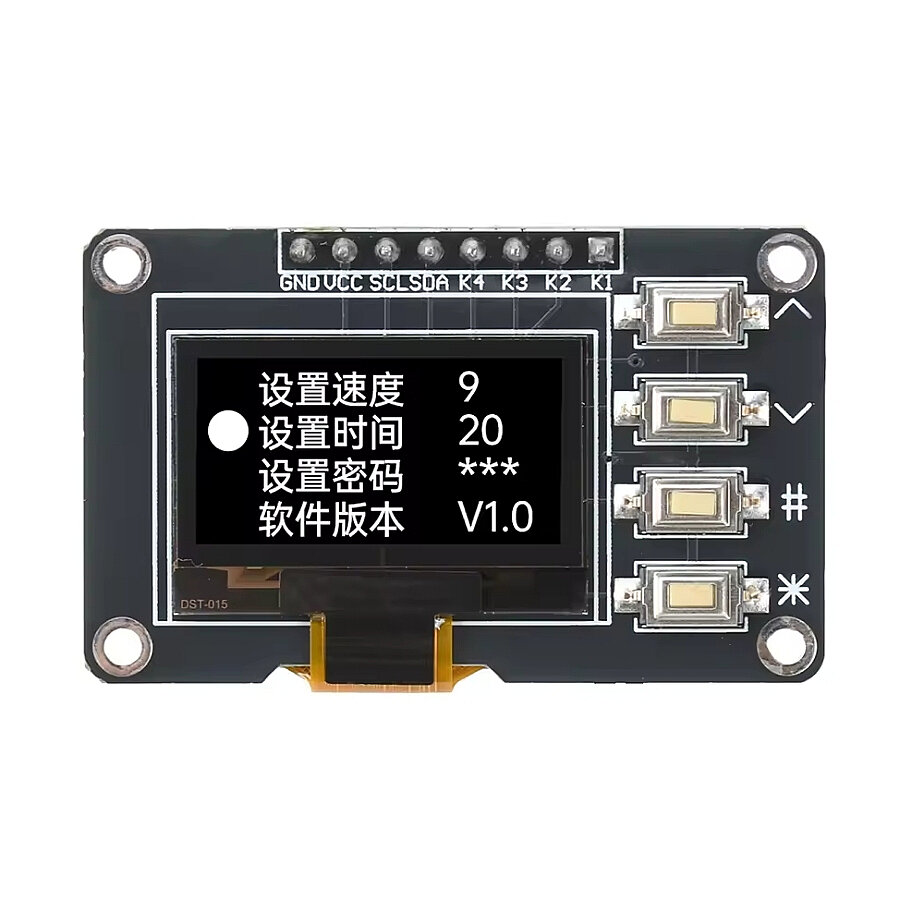

Pinout
- GND: Power Ground
- VCC: 3.3V
- SCL: IIC Clock Line
- SDA: IIC Data Line
- K4: Keypad Interface 4
- K3: Keypad Interface 3
- K2: Keypad Interface 2
- K1: Keypad Interface 1
