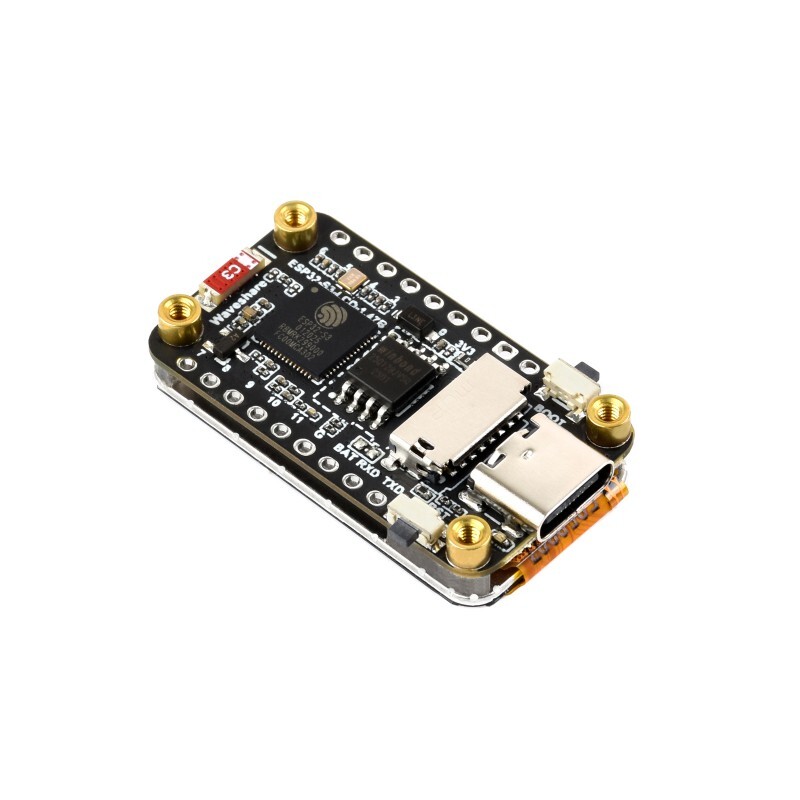

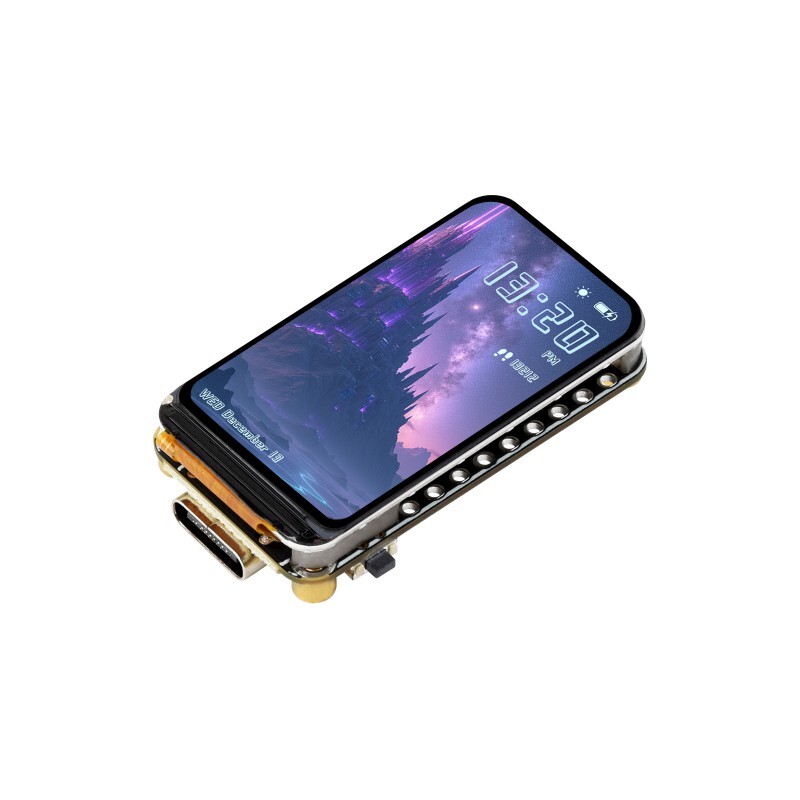

The ESP32-S3 1.47 Inch 172×320 LCD Screen Development Board is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrating high-capacity Flash and PSRAM. The 1.47-inch IPS screen on the board can run GUI programs such as LVGL smoothly. Combined with multiple peripheral interfaces, the ESP32-S3 is suitable for rapid development of HMI applications.

User Manual

Important NOTE: Do not remove the screen while soldering the pin headers. Hold the soldering tool at an angle and solder directly!

Features

• SKU: 31501
• Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), built-in antenna
  512KB SRAM and 384KB ROM, built-in 16MB Flash and 8MB PSRAM
• 1.47-inch LCD screen, 172×320 resolution, 262K colors
• Supports multiple IO interfaces, supports full-speed USB standard
• Motion detection, step counting, etc. Built-in QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) Built-in RGB LED with transparent acrylic sandwich panel offers stylish lighting effects Built-in TF card slot for storing pictures or files on an external TF card Built-in battery charge management module supports connecting to a Lithium battery for power supply (Battery interface is located in the GPIO header) Supports precise controls such as flexible clock and multiple power modes, ensuring low power consumption in different scenarios.

Technical Specifications

• Screen Size: 1.47 inches
• Resolution: 172x320
• Display Driver: ST7789
• Display Interface: 3-wire SPI
• Color: 262K
• Display Panel: IPS

Package Content

• ESP32-S3-LCD-1.47B × 1
• Header × 2

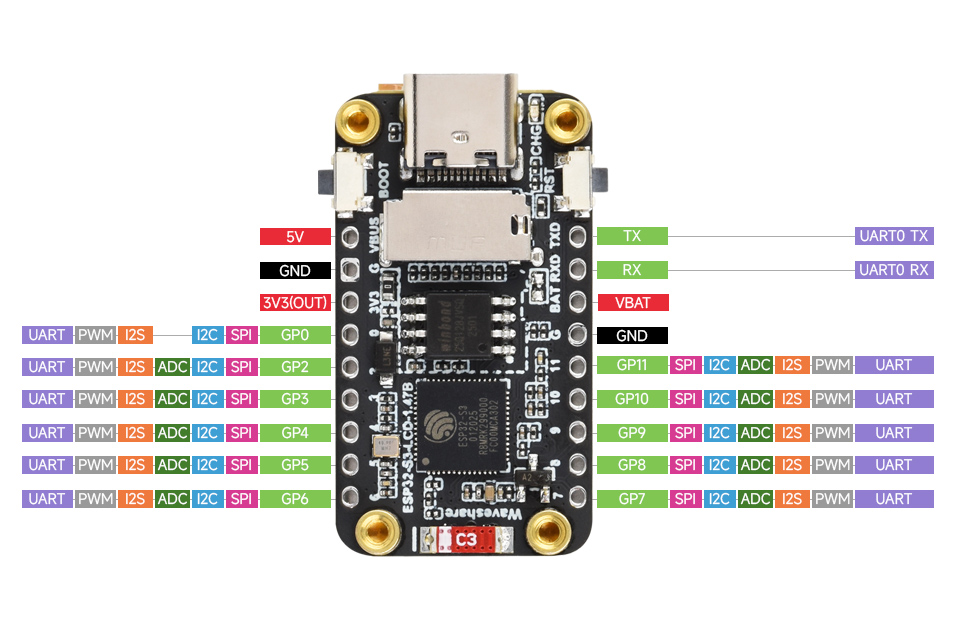

Pinout

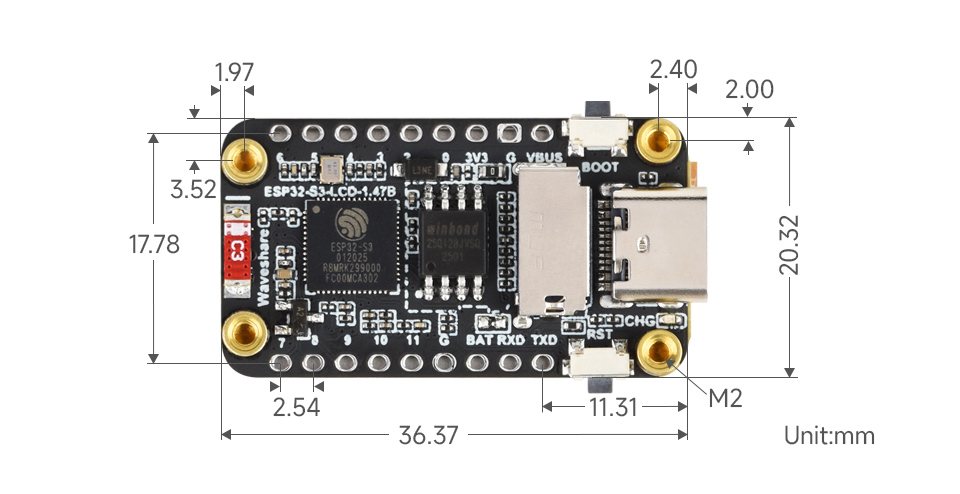

Size
