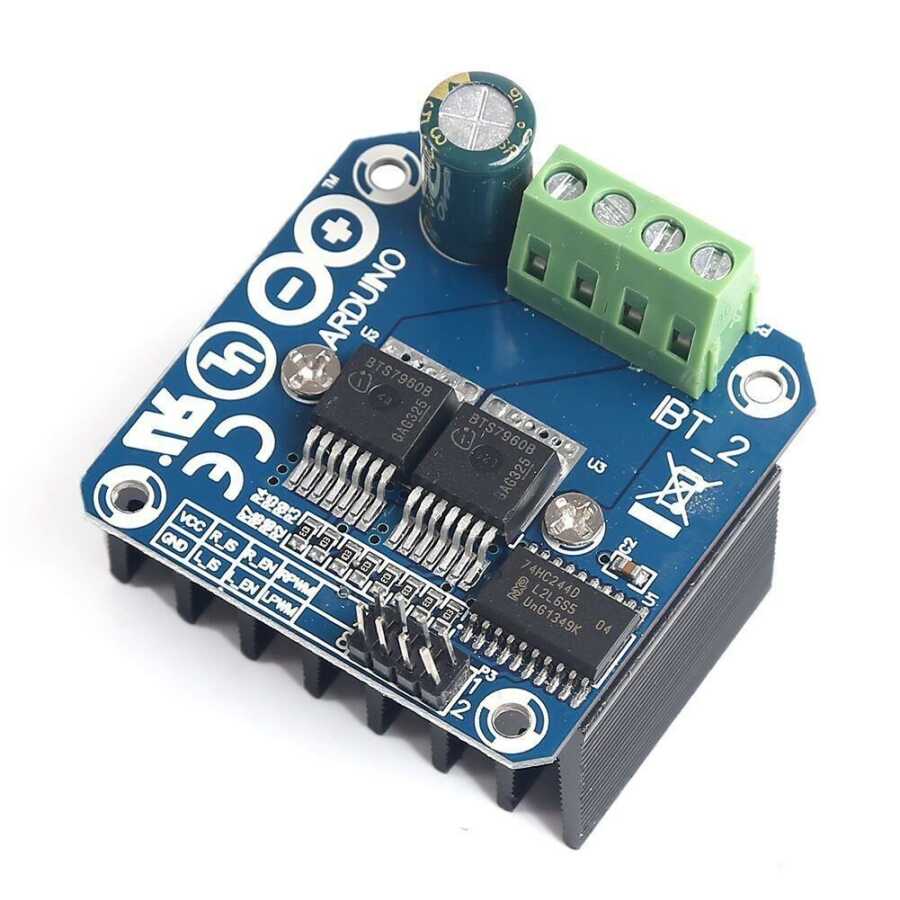

20 Ampere Motor Driver Card BTS7960B

BTS7960B motor driver card robots is a high power and high performance driver card. Under supply voltage up to 28V, the motor driver card can be used to control motors drawing current up to 20 amps.

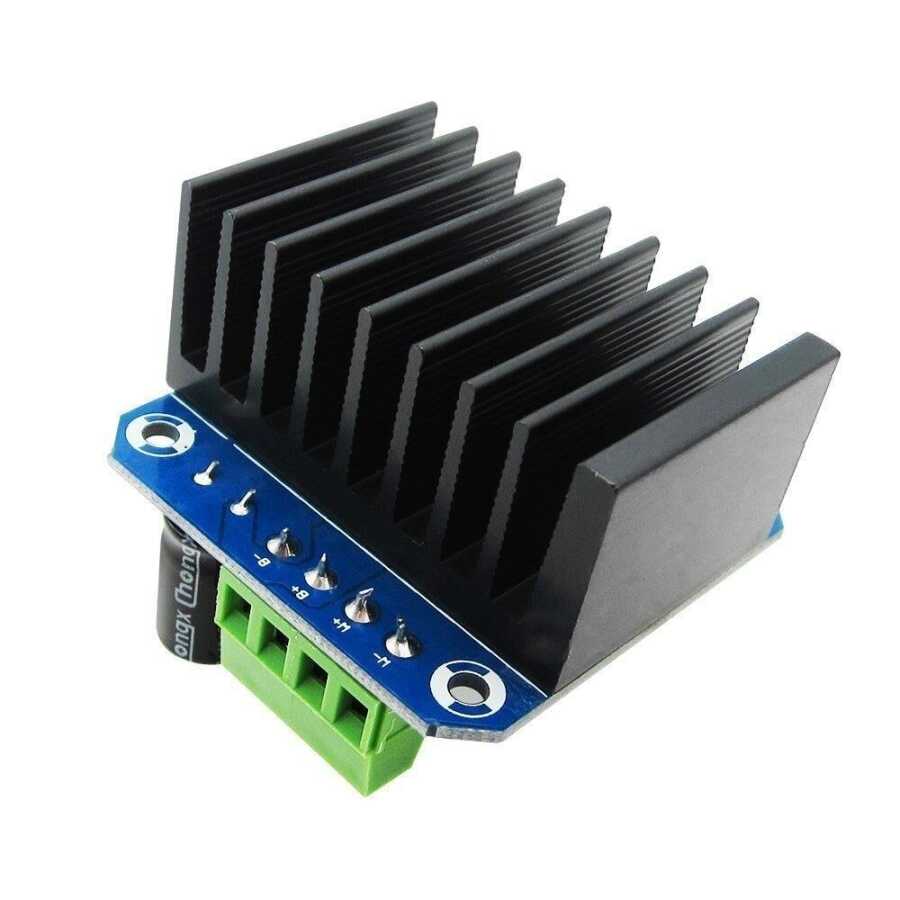

It can be used to train and control many microcontrollers easily. The product water passive cooler must be adequately cooled.

Motor and supply connection;

B +: Supply Voltage (up to 28V)

B-: Supply Ground

M +: Motor + Terminal

M-: Motor- Terminal

Control Pins;

VCC: +5 VDC

GND: Ground Connection

IS1, IS2: Current Test Pins

EN1, EN2: PWM inputs

IN1, IN2: Motor direction control pins

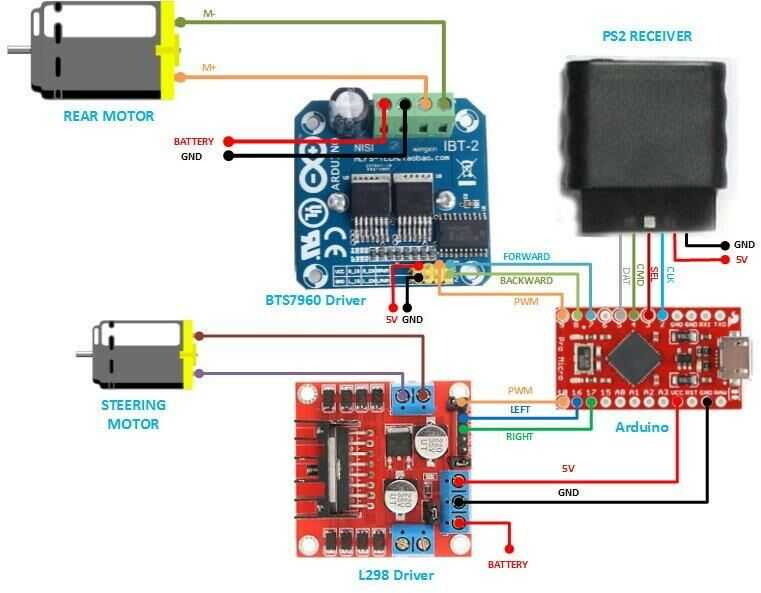

BTS7960B Arduino Connection Diagram

Documents:

BTS7960B Integrated Datasheet
