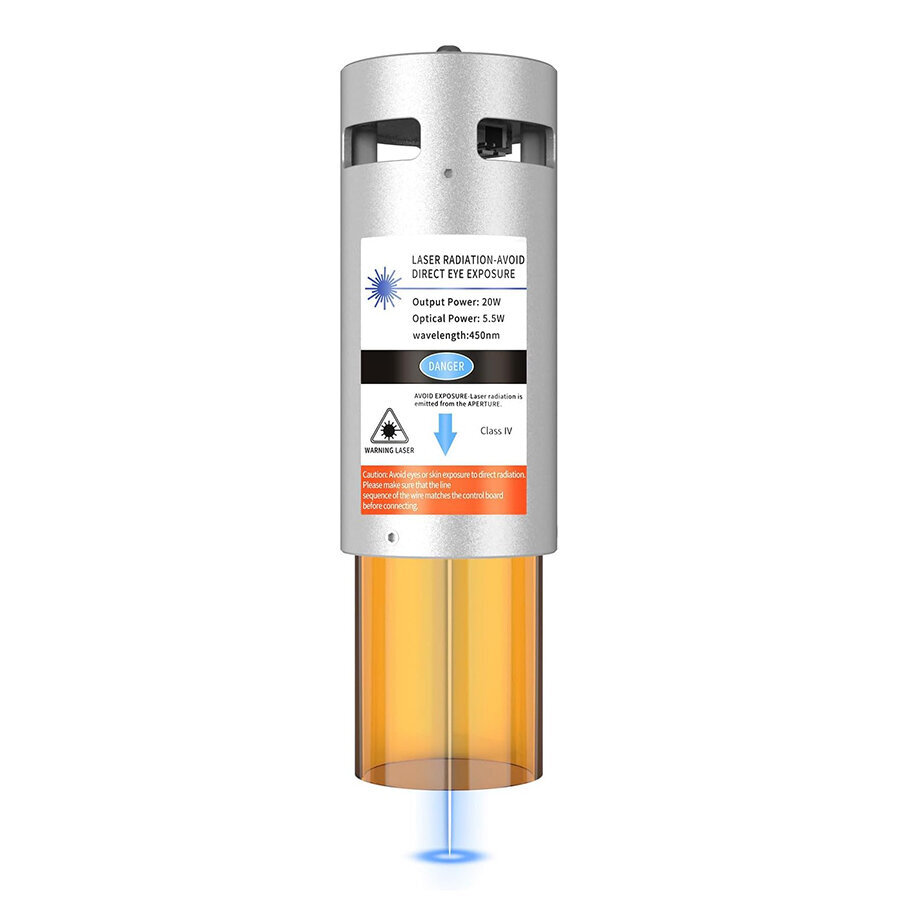

20W 450nm Burning CNC Laser - 5.5W Optical Power
The 20W 450nm Burning CNC Laser - 5.5W Optical Power is a burning laser that can be used to process wood, plastic, rubber, acrylic and other materials. Its wavelength is 450 Nm. It operates with 12V DC voltage.

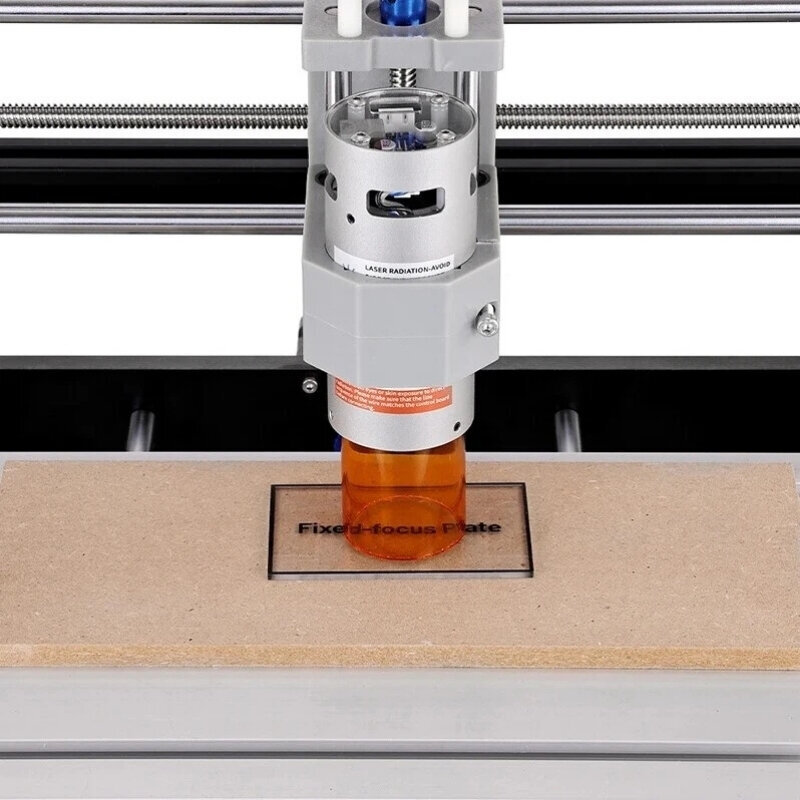

Compatible with CNC3018 PRO, CNC3018 PRO-MAX, CNC3018 MAX and CNC3020 PLUS models.
Precautions Before Use
- Burning lasers are harmful to the human body and eyes. Therefore, avoid direct contact with the laser.
- When using this product, laser protective glasses should be worn to protect your eyes and prevent short-term glare caused by direct laser light.
Specifications:
- Supply Voltage: 12VDC
- Current: 3A
- Power: 20W
- Optical Power: 5.5W
- Wavelength: 450Nm
- Light Color: Blue
- Engraving Accuracy: 0.02mm
- Minimum Focal Point Size: 0.08x0.08mm
- Cutting Depth: 3~4mm
- Materials it can process: plywood, fabric, wood, plastic, bamboo, paper, acrylic, ceramic, stainless steel, leather, cardboard, kraft paper, coated metal
- Size: 44x138mm

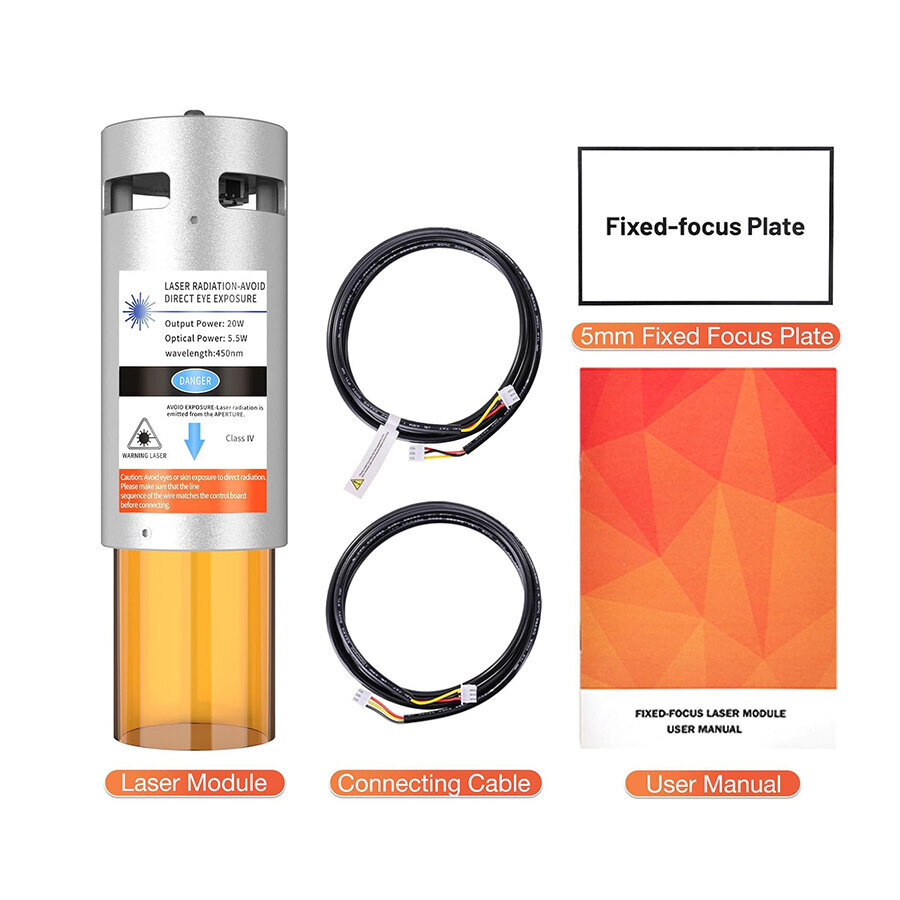

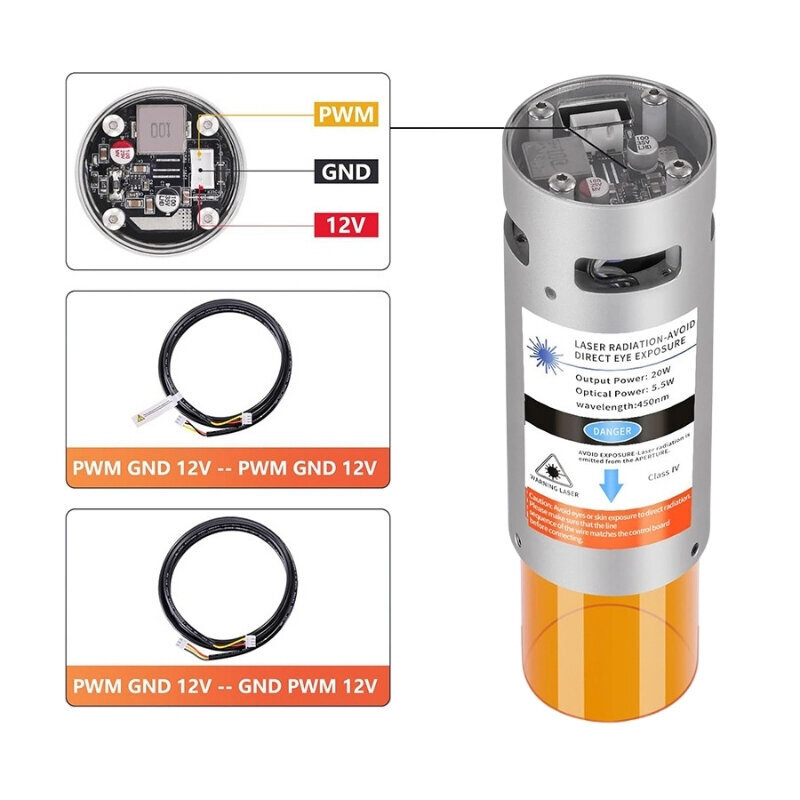

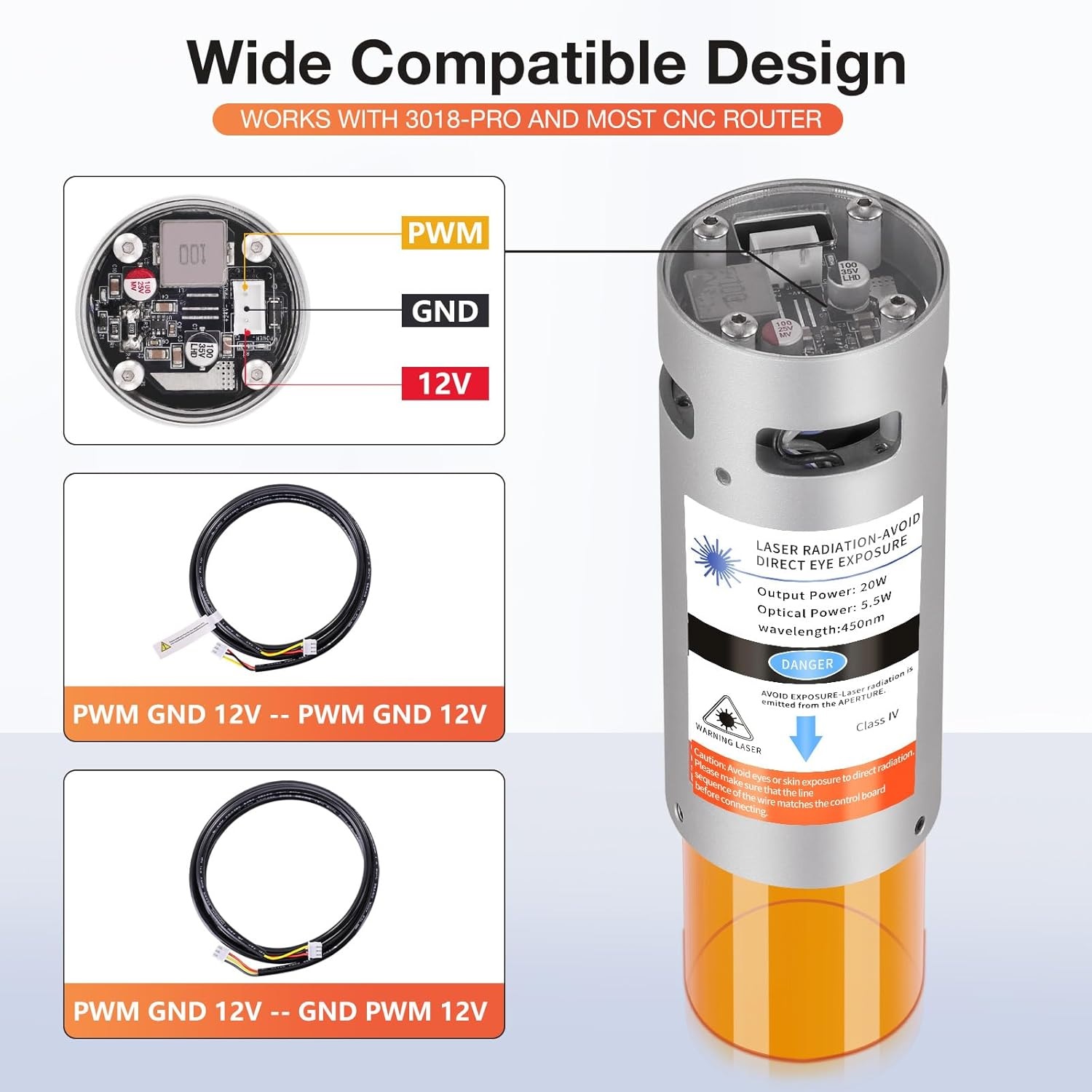

Two cables are included with the laser. The pin sequences of the ends of the cables that will be connected to the laser are the same (PWM-GND-12V), the pin sequences on the opposite ends are different. You can connect the cable with the appropriate sequence for your device's circuit board and use it.
