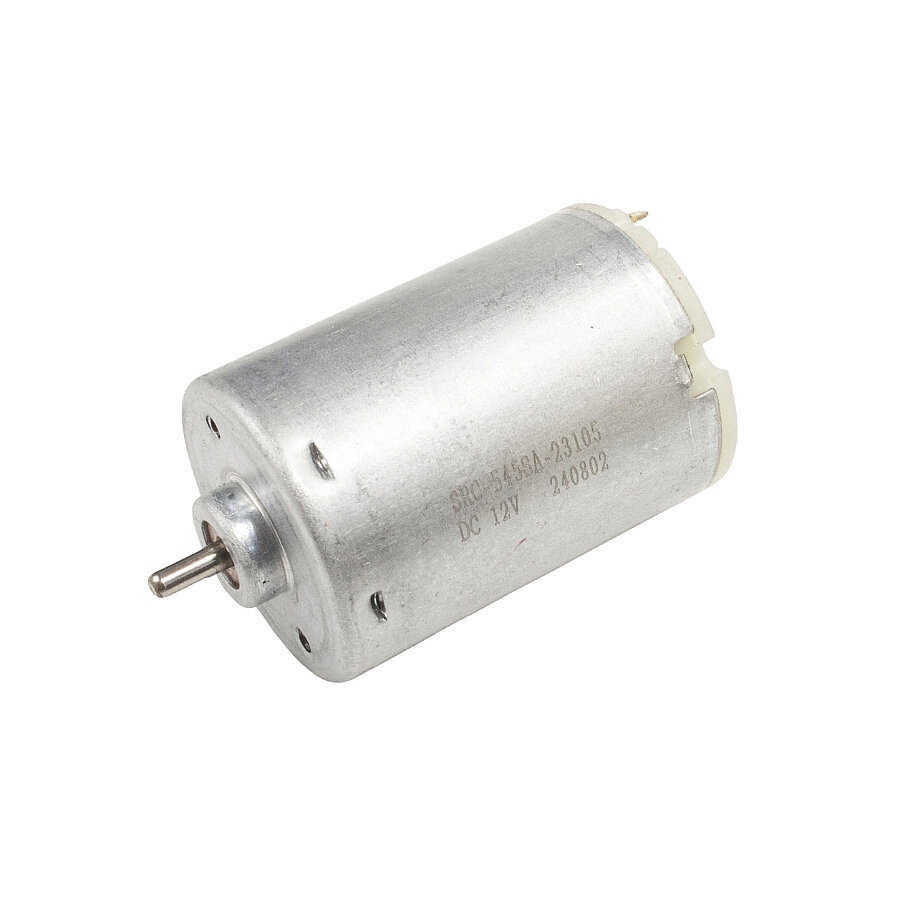

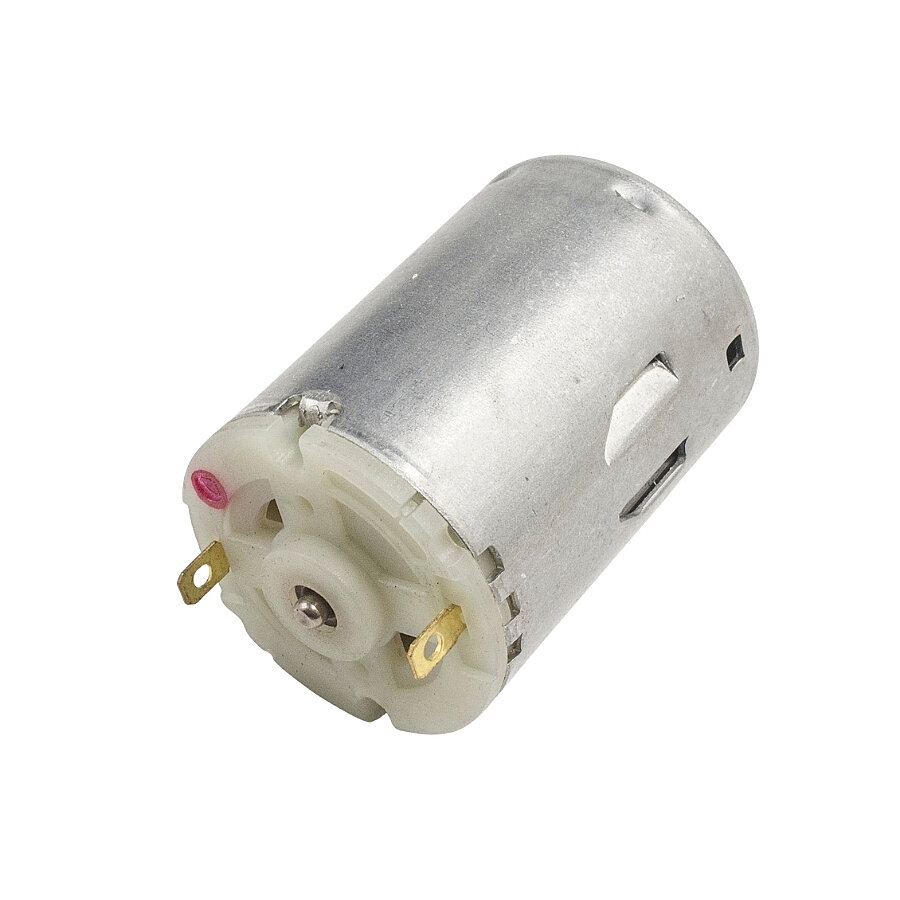

545 12V 2750Rpm Gearless DC Motor



545 12V 2750Rpm Gearless DC Motor. It has a 12V DC operating voltage and a rotation speed of 2750 rpm. This motor, often preferred in RC vehicle projects, is particularly suitable for use in cordless hand drills and cordless screwdrivers thanks to its high torque structure.

Technical Specifications:

• Operating Voltage: 12VDC
• Speed: 2750 RPM
• No-load Current: 0.10 A
• Stress Current: 1.2A
• Power: 14.4W (Stress power)

Product Dimensions:

• Motor Diameter: 35.7mm
• Motor Body Length: 57mm (Shaft (Excluding)
• Shaft Length: 8mm (D-shaft)
• Shaft Diameter: 3.17mm
