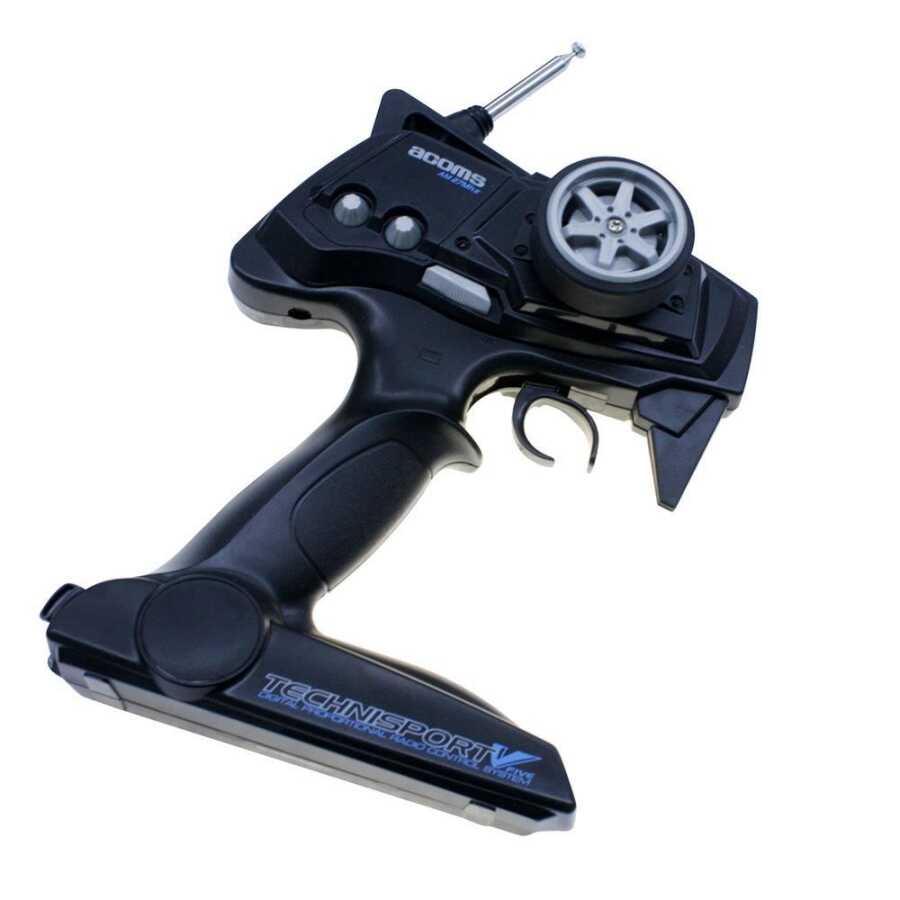

Acoms Technisport V - 2 Channel Remote Control Set - Band 2 (27.045 MHz / Red)
Acoms Technisport V is a two channel remote control set. You can use it in many RC vehicle projects and in all vehicle prototypes that move in two dimensions, such as tanks and boats. With the trigger and wheel on it, forward, reverse and speed control of the vehicles can be done very easily. Moreover, you can use this product with Arduino or a similar microcontroller By using it together, you can use your own project vehicle, connect it to ESC, and control the direction with the steering servo. This product has a 27MHz crystal set. In cases where you will use more than one remote control, remote control options with different band options should be preferred to avoid interference with the product signals. Other remote controls
here

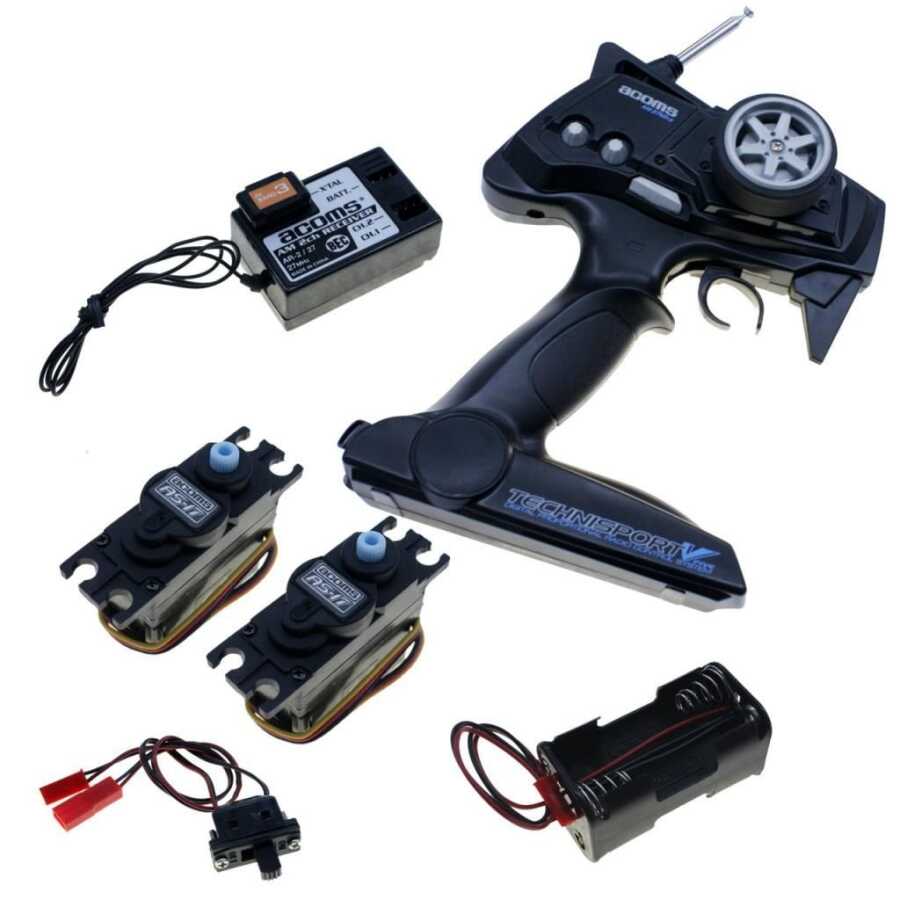

Acoms Technisport V Product Content:
•2-channel Acoms Technisport V 27MHz remote control
•2-channel Acoms AR-2 27MHz receiver
•2 AS-17 servo motors
•Servo heads and mounting screws
•4xAA pen battery holder
•On/off switch for receiver power
•User manual
Acoms Technisport V Remote Control Technical Specifications:
•27MHz AM communication, 100mW output power
•Changable frequency crystal
•Throttle and steering channels Adjustable trim (midpoint) setting for steering channel
•D/R (sensitivity) setting for steering channel
•Reverse feature for gas and steering channel
< DIV>•Operating voltage: 12VDC (8xAA batteries, not included)
•Weight: 367g (excluding batteries)

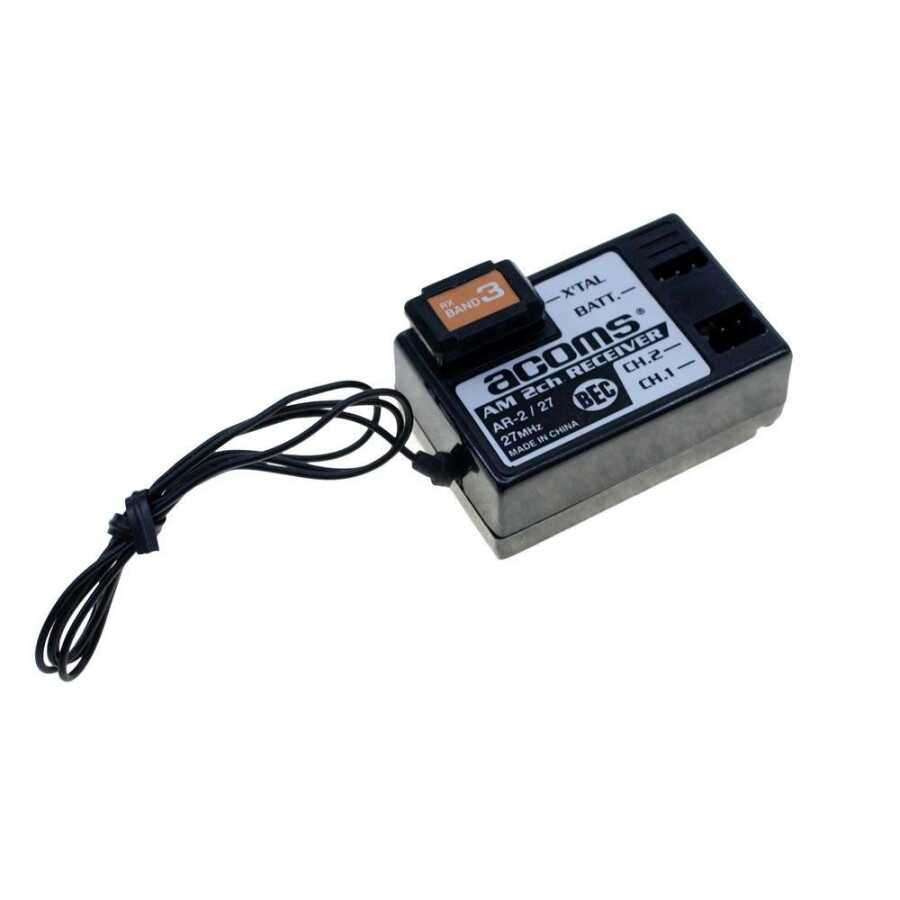

Acoms AR- 2 Receiver Technical Specifications:
•27MHz AM communication
•Changable frequency crystal
•2 channel PWM servo output
•Operating voltage : 4.8~8.4VDC (you can use it with 4xAA, 5xAA or 2S LiPo, your servos must also be compatible)
•Dimensions: 43.5 x 29.0 x 17.5 (mm)
•Weight: 19g

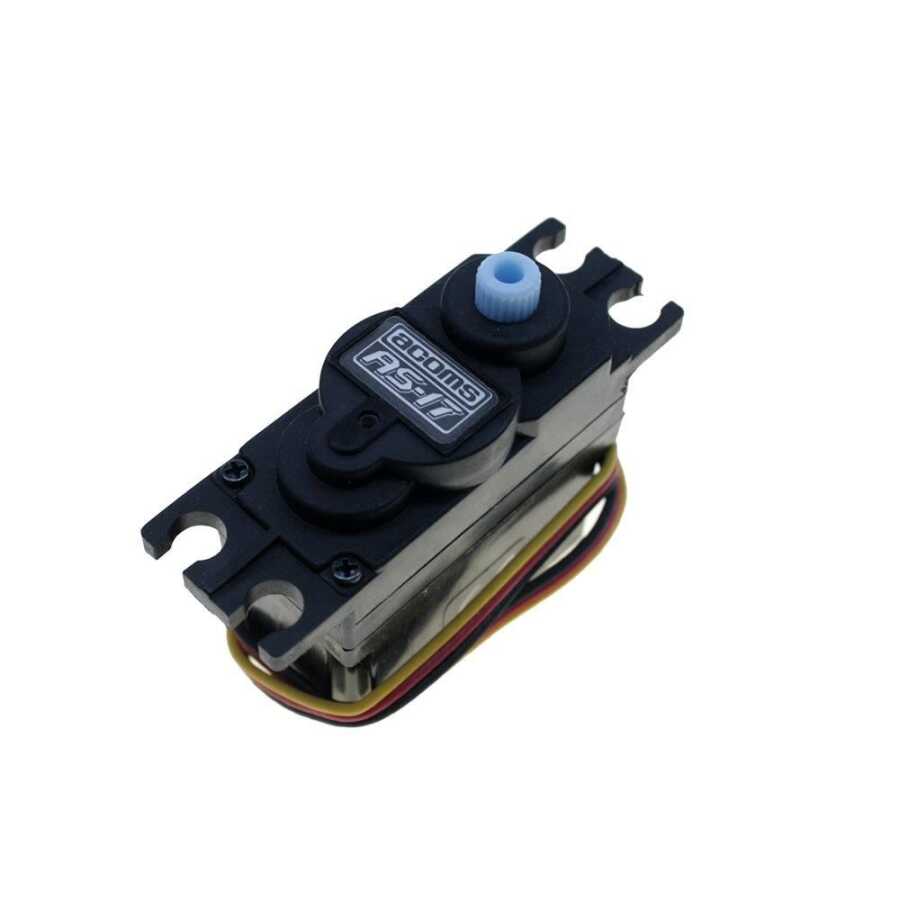

AS-17 Servo Technical Specifications:
•Gear: Plastic
•Operating voltage: 4.8-6VDC
•Torque: 4.1 kg/cm @4.8V
•Speed: 0.18sec/60° @4.8V
•Dimensions: 38.5 x 18.5 x 34.5 (mm )
•Weight: 35g
