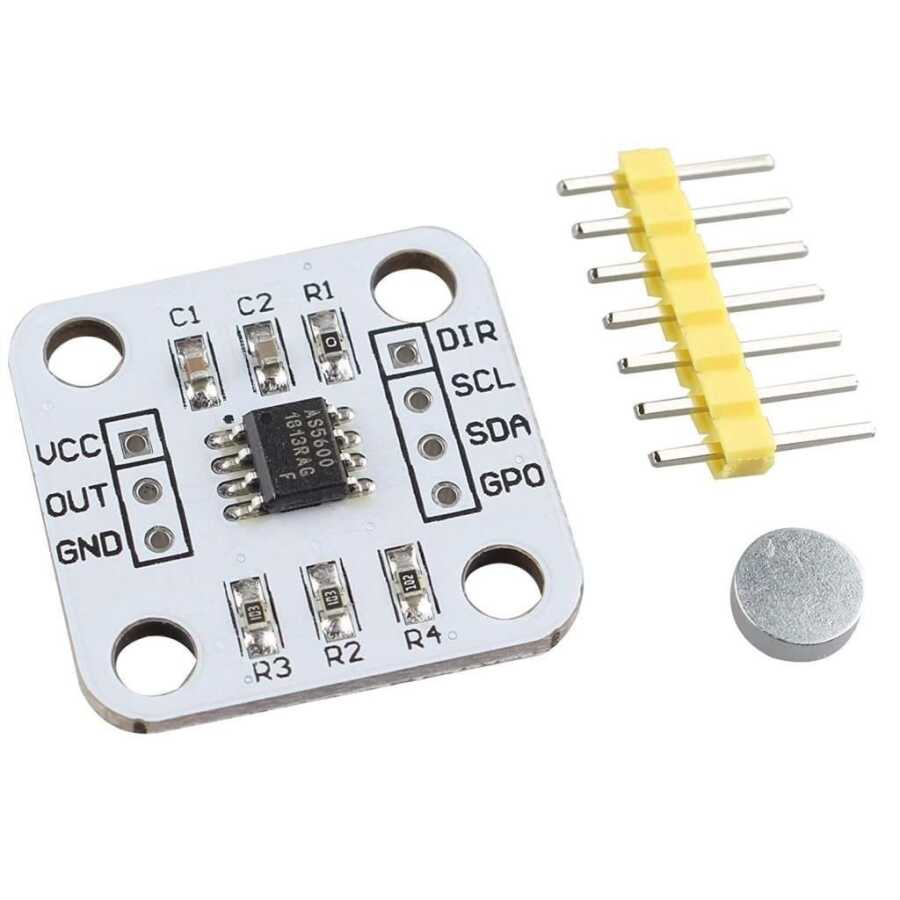

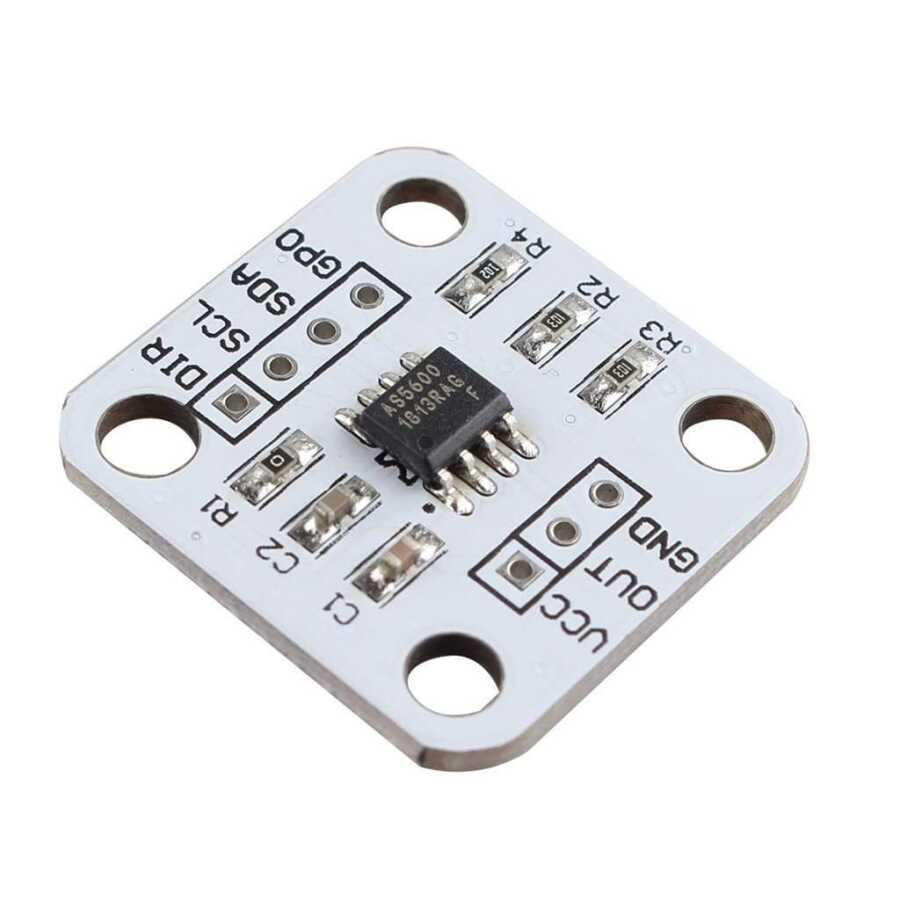

AS5600 Magnetic Induction Angle Measurement Sensor

Equipped with an AS5600 magnetic encoder with 12 bit resolution. Allows non-contact measurement of rotation angle. The module has an analog/PWM output and an I2C interface. By default the output is between 0 and 360 degrees. It is also possible to define a smaller output range by programming the zero angle (starting position) and the maximum angle (stop position).

Contactless angle measurement

Simple, user-programmable start and stop positions via I²C interface

Angle Range: Maximum programmable angle range from 18° to 360°

Output: analog / PWM

Interface: I2C

Output resolution: 12 bit DAC

Supply voltage: 3.3 V or 5 V

Input current: up to 100 mA

Operating temperature: -40 °C to 125 °C

Dimensions: 23 x 23 mm
