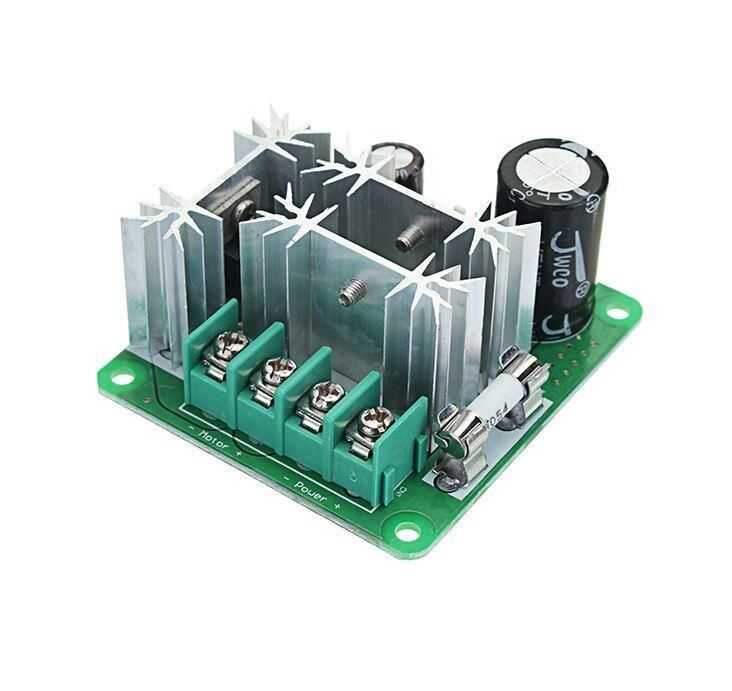

CCMHCN 15A 6-90V PWM DC Motor Speed Control Module

DC Motor Speed Controller with a continuously adjustable duty cycle from 0% - 100% 6V - It controls the speed of a DC motor using a Pulse Width Modulated (PWM) DC voltage between 90V.

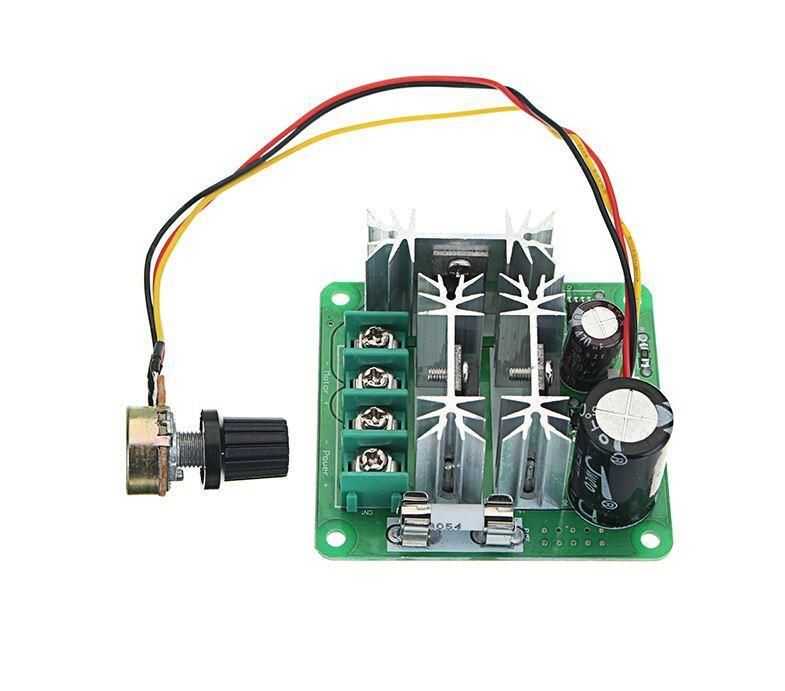

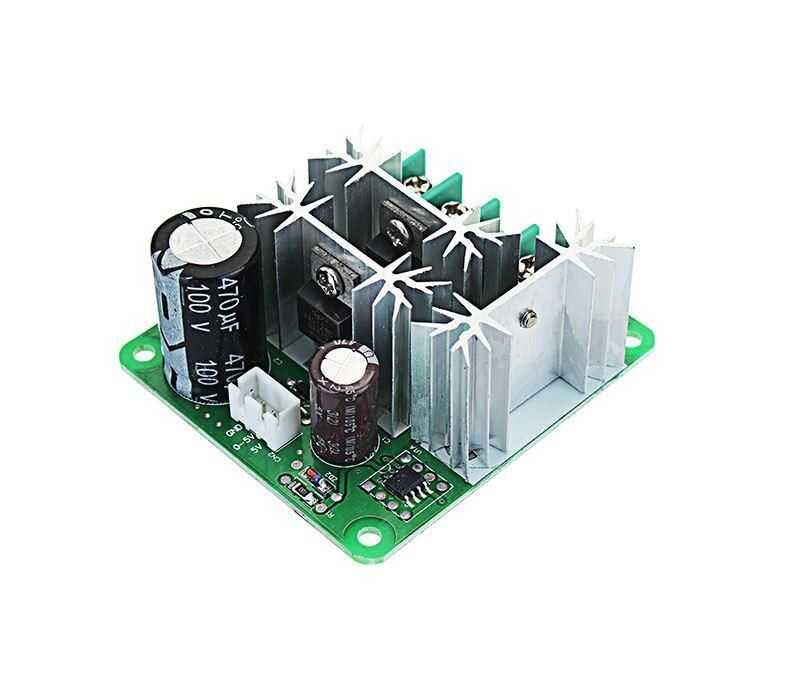

The module includes a panel-mounted potentiometer for speed control. The duty cycle can also be controlled with a 0-5V analog control signal instead of a potentiometer.

The motor speed controller can supply a continuous 15A current to your DC motor or other DC load. The module includes a user-replaceable panel-mounted 15A fuse to protect the motor and controller from overcurrent conditions.

Technical Specifications:

Input Voltage: 6V - 90V DC
Maximum output power: 1000W
Maximum continuous output current: 15A
Overload and short circuit protection current (fuse): 15A
PWM frequency: 15kHz
Duty Cycle: Continuous with potentiometer adjustable 0%-100% or 0-5V analog control signal
Dimensions: 64 mm x 59 mm x 27 mm

NOTE: The control unit is NOT reverse polarity protected and will be damaged if connected to the supply voltage with incorrect polarity. Double check all connections before applying power and always turn off the power supply before making any wiring changes.
