D13-717-V15 DC 24V 10A Motor Overload, Overcurrent, and Short-Circuit Protector
The D13-717-V15 DC 24V 10A Motor Overload, Overcurrent, and Short-Circuit Protector is a motor control and protection module designed to control the direction of 24V brushed DC motors and protect the motor against overload, overcurrent, stall/jamming, and short-circuit conditions.
The permissible current protection threshold for the motor can be adjusted using the onboard potentiometer. When the current drawn by the motor exceeds the set level, the protection circuit cuts off the motor output, thereby reducing the risk of damage to the motor, power supply, and mechanical system.
Specifications
- Operating voltage: 24V DC
- Motor type: Brushed DC motor
- Adjustable current range: 0.5A – 10A
- Maximum rated current: 10A
- Current adjustment: Via onboard trimpot/potentiometer
- Protection functions: Overcurrent, overload, motor stall/jamming, and short-circuit protection

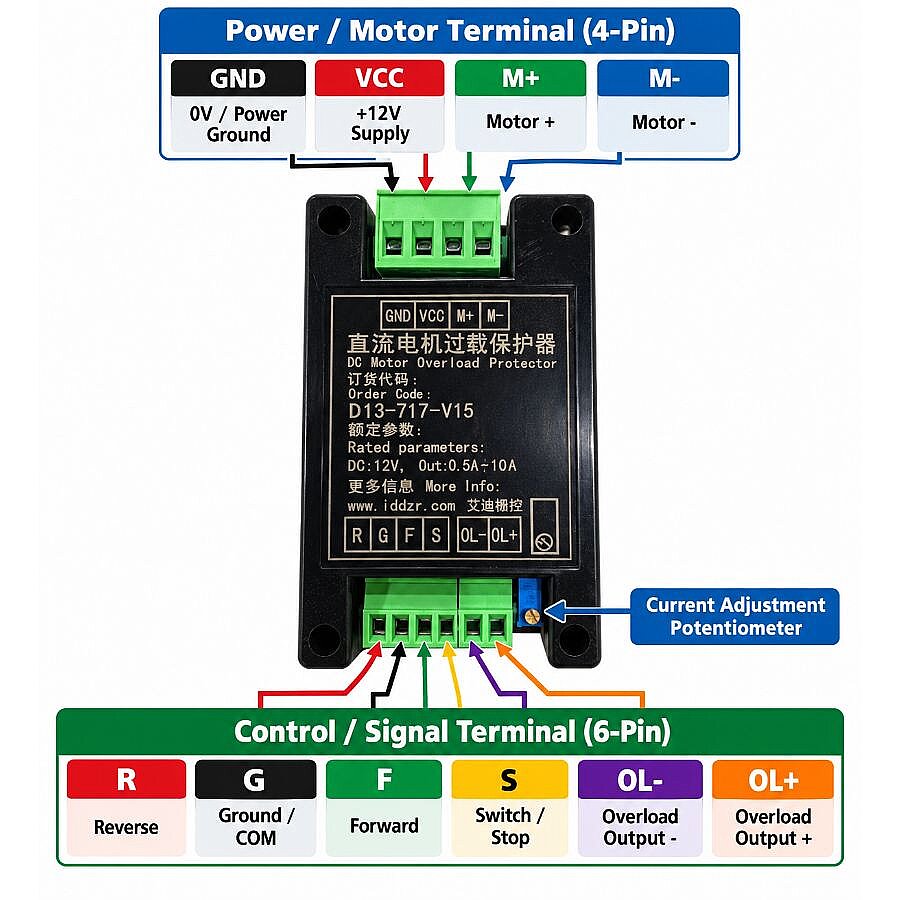

- Motor direction control: Forward / Reverse
- Motor connection: M+ / M-
- Power supply connection: VCC / GND
- Overload signal output: OL+ / OL-
