DC 6-55V 15A PWM Controlled Motor Speed ​​and Direction Control Card

DC 6-55V 15A PWM Remote Controlled Motor Speed ​​and Direction Control Board

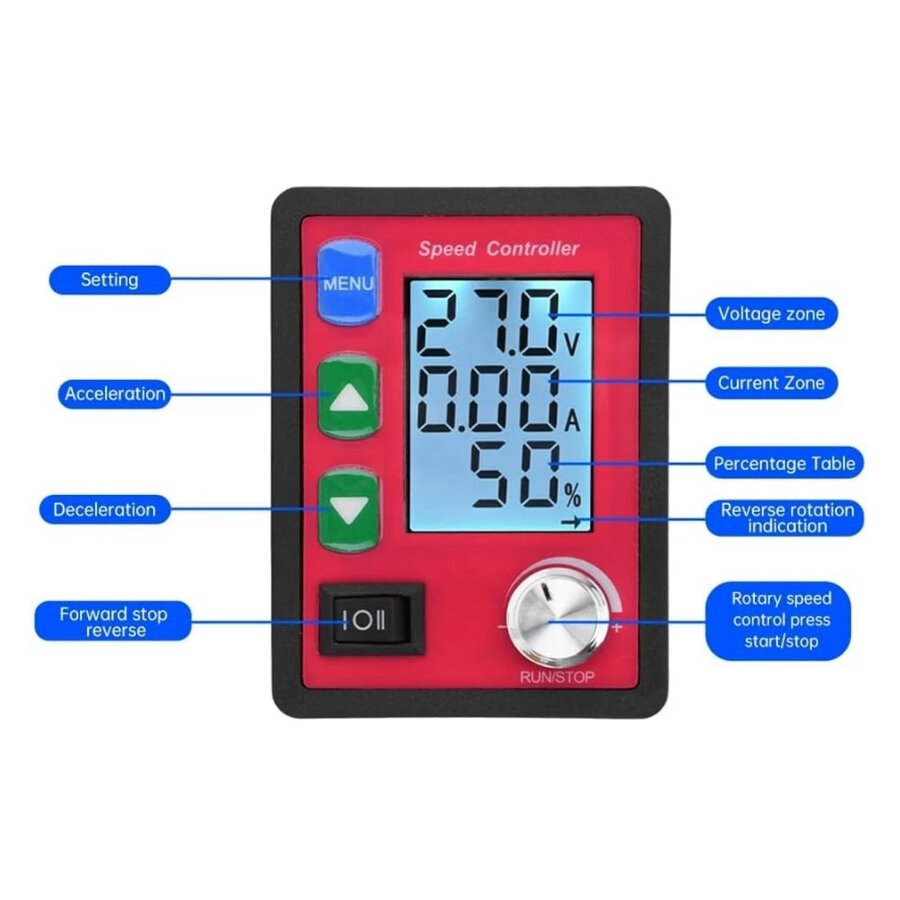

The DC 6-55V 15A PWM Remote Controlled Motor Speed ​​and Direction Control Board is an economical and effective solution designed for workshops, small machine manufacturers, robotics projects, and hobby applications. Its digital display shows the instantaneous PWM duty cycle/output voltage; the remote control allows you to remotely control speed, direction, and stop/start commands. The device typically features safety features such as soft start, forward/reverse rotation, and overcurrent/reverse polarity protection, extending the lifespan of both the motor and the driver circuit.

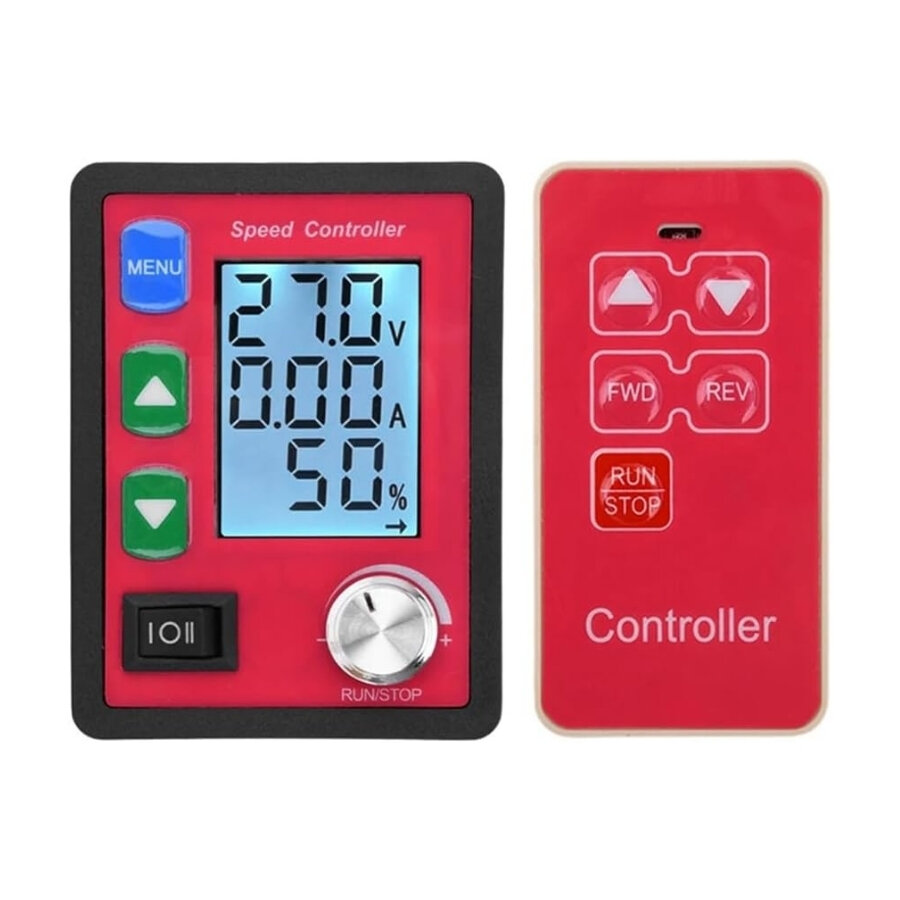

Remote Control Pairing

Before powering on the product, you need to press and hold the menu button. While holding the button, power on the product. After the product is powered on, you can pair it by pressing any button on the remote control.

You can tell that the pairing is confirmed by the flashing of the product screen. You must not release the menu button during this process. You can release the menu button after the pairing is complete.

Features

• Input voltage: 6-55VDC
• Maximum current: 15A
• Remote controlled
• Direction adjustable
• 3-digit digital display: 0-999

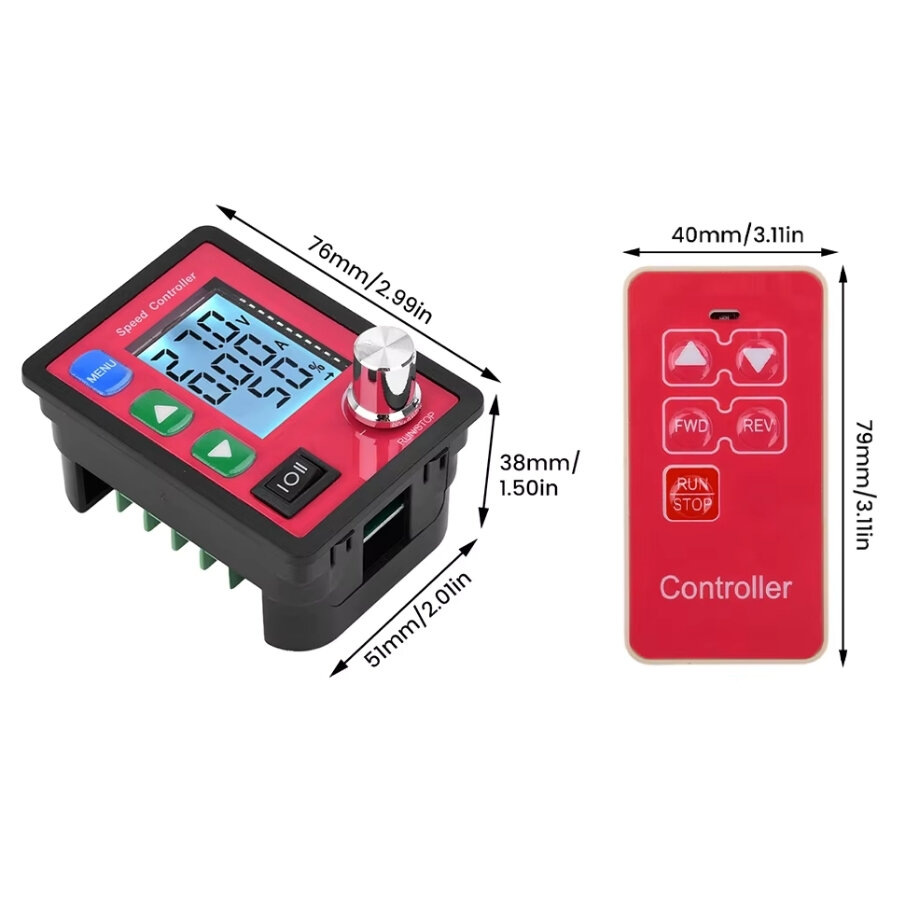

• Dimensions: 77mmx57mmx38mm
