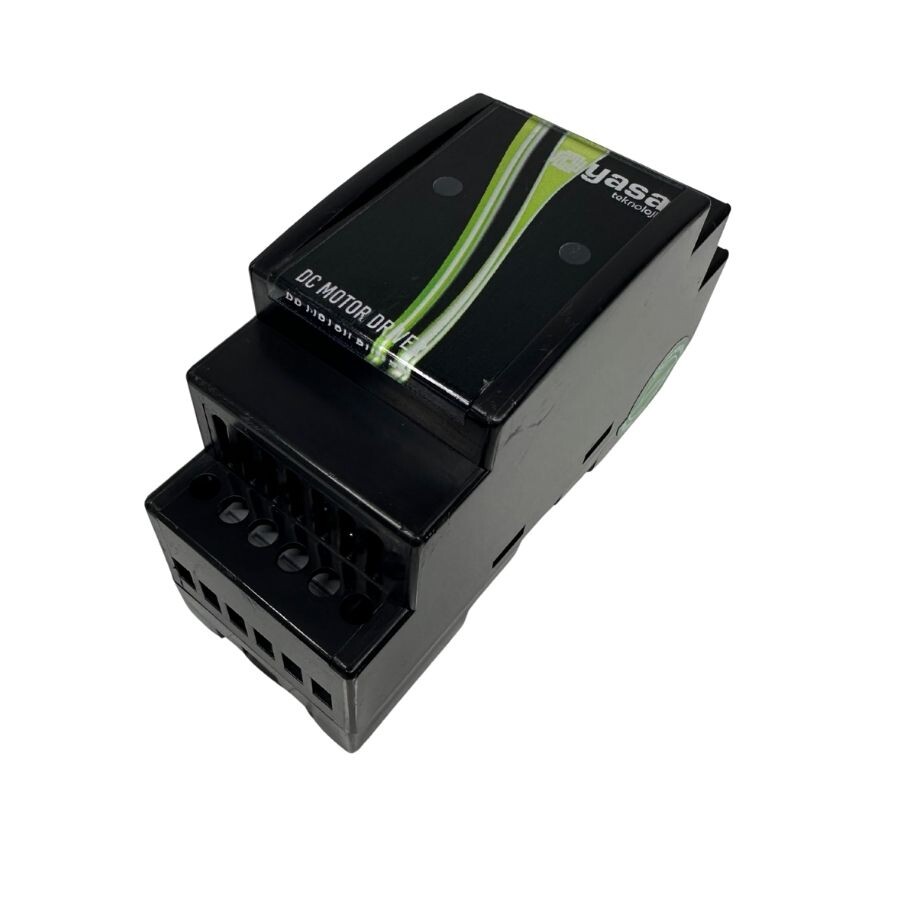

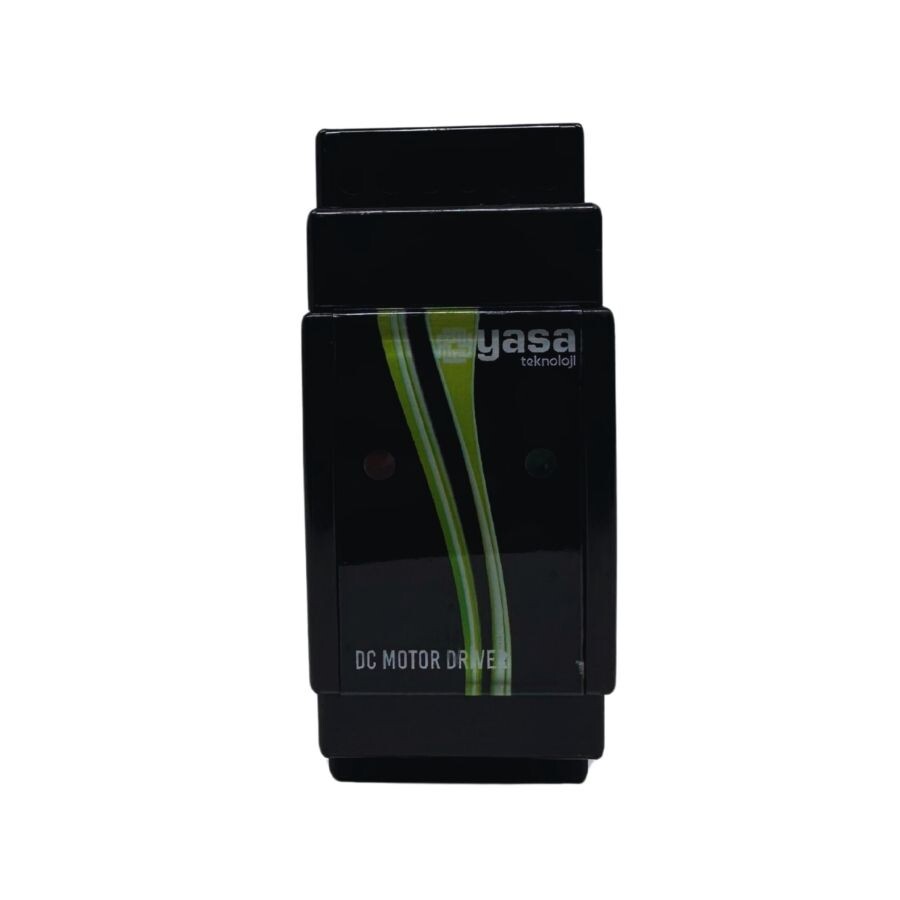

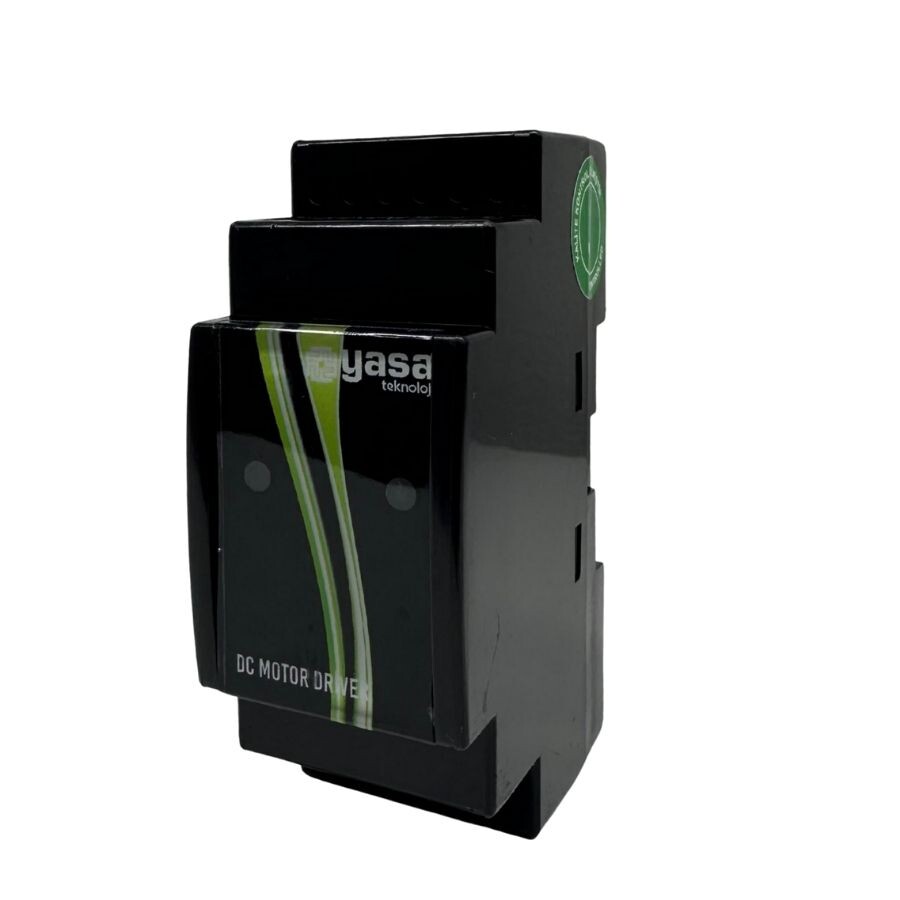

DC Tech Drive Prime 150W DC Motor Driver

DC Tech Drive Prime 150W DC Motor Driver

The DC Tech Drive Prime 150W DC Motor Driver is suitable for all DC motors between 12V and 24V. It is a PLC-controlled, single-direction DC motor driver. It can handle output power up to 150W.

Specifications

• Model: DC Tech Drive Prime 150W DC Motor Driver
• Input DC Voltage Range: 12V - 37V (DC)
• Maximum Power: 150W
• Continuous Output Current: 4A
• Maximum Output Current: 30A
• Operating Temperature: -40°C – +80°C
• Operating Modes: 3 different modes via switch (0V – 10V, 4mA – 20mA, POT)
• Dimensions: 35x90x55mm (Width x Height x Depth)

Additional Features

• Resistant to instantaneous loads
• Provides single-direction speed control
• Suitable for speed control via PLC
• Microprocessor-based
• Easy installation on panel-din rails
• External start/stop terminals
• ROHS Compliant
