DC5V 2-Axis 360-Degree Wheelchair Joystick
1.608,75
TL
+
VAT
1.930,50
TL
Notify Me When It Arrives
1.608,75
TL
+
VAT
1.930,50
TL
Add to Favorite
RecommendCommentAlarm Price
DC5V 2-Axis 360-Degree Wheelchair Joystick

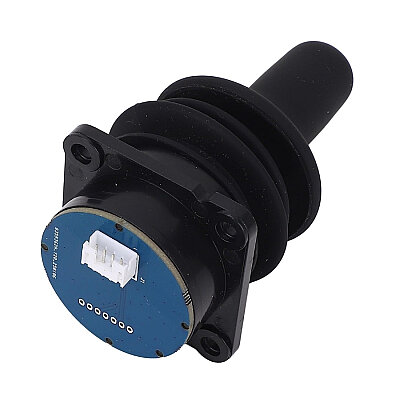

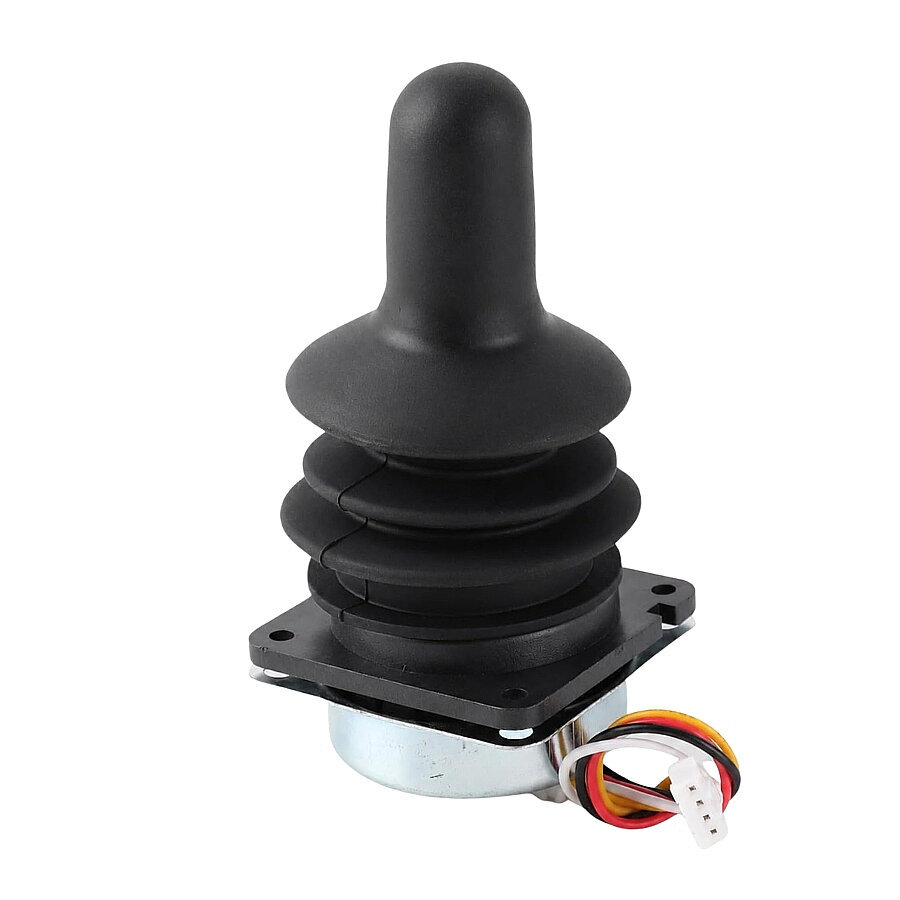

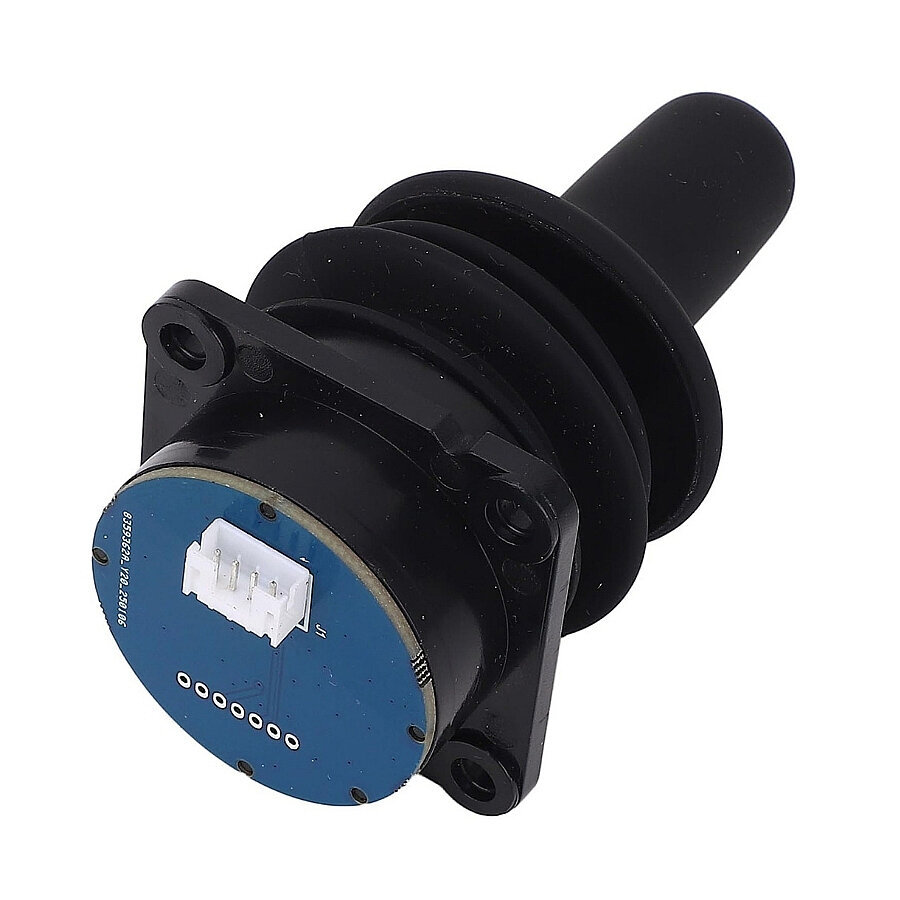

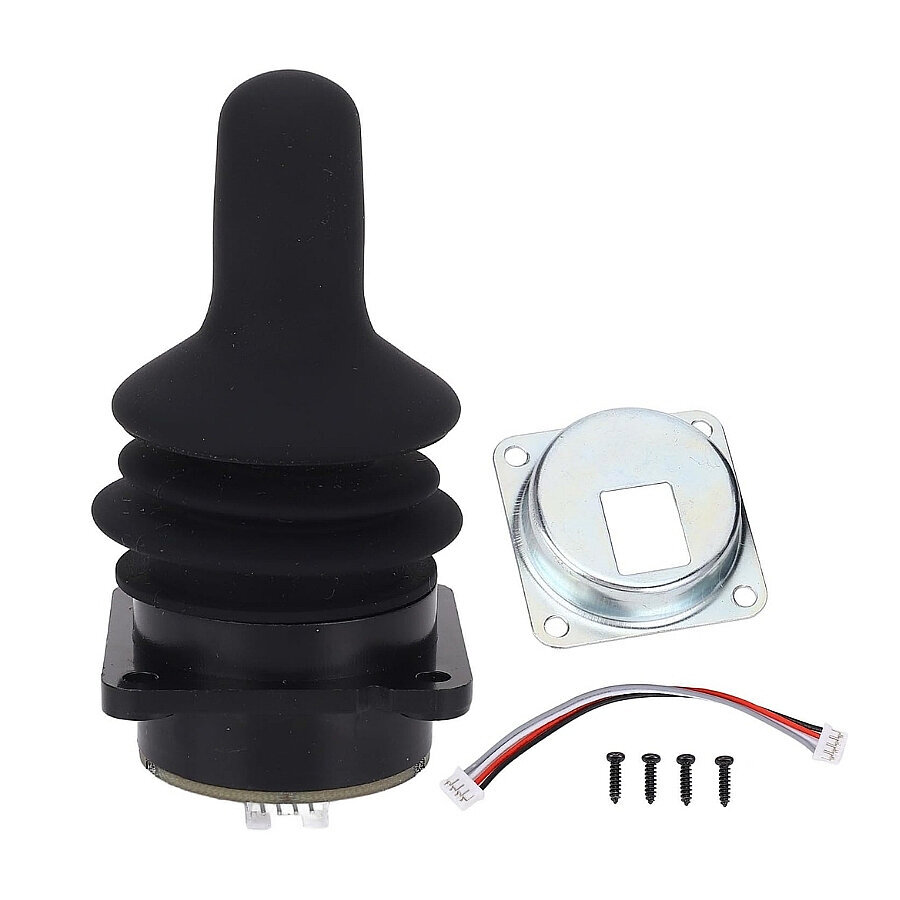

The DC5V 2-Axis 360-Degree Wheelchair Joystick is an analog control joystick with 360° range of motion, designed for use in electric wheelchairs, mobility vehicles, and dual-axis precision control systems. By generating control signals across two independent axes (X and Y), the joystick enables proportional control of forward-backward and left-right movements. At the center position, the output reference is approximately 2.5V. When the control stick is moved in any direction, the X and Y axis outputs vary according to the direction and magnitude of the movement.
Specifications
- Control Type: Dual-axis analog control
- Control Axes: X + Y
- Movement Structure: 360° directional control
- Operating Voltage: DC 5V
- Static Center / Reset Voltage: 2.5V
- Output / Operating Current: <20mA
- Control Method: Proportional X-Y axis control
- Direct Motor Drive: No
- External Motor Controller Required: Yes
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -45°C to +80°C

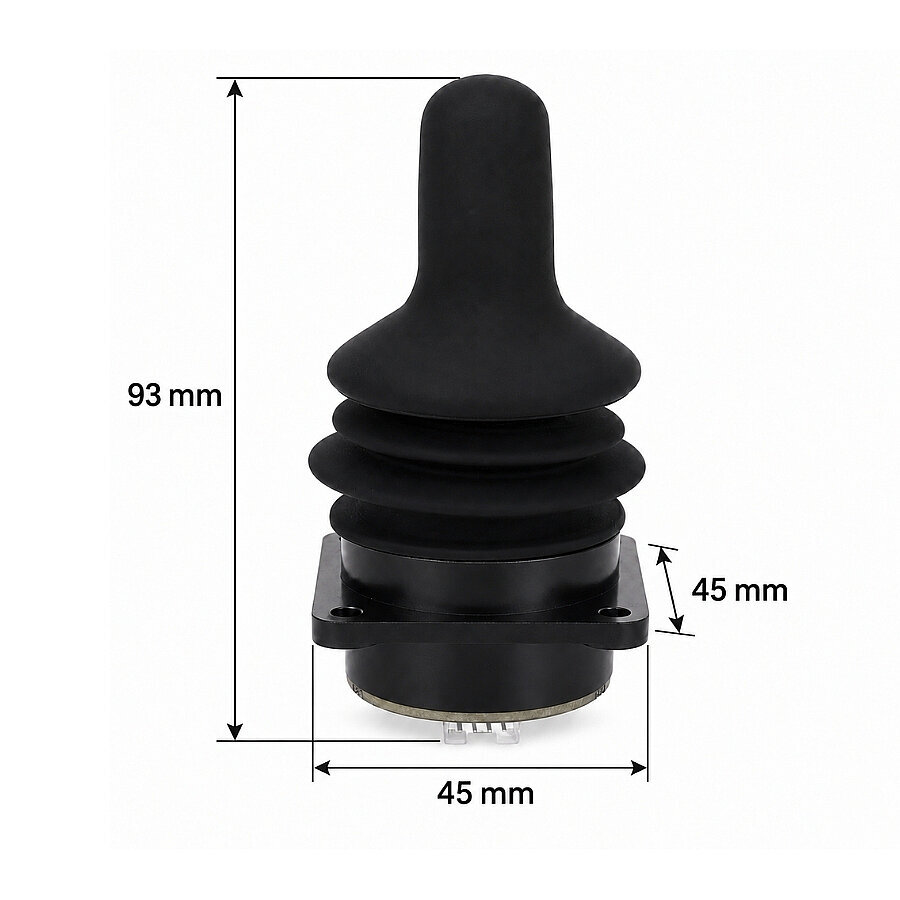

- Mounting Hole Pattern: 35 × 35 mm
- Mounting Hole Diameter: Ø3.2 mm
